3
ENGLISH

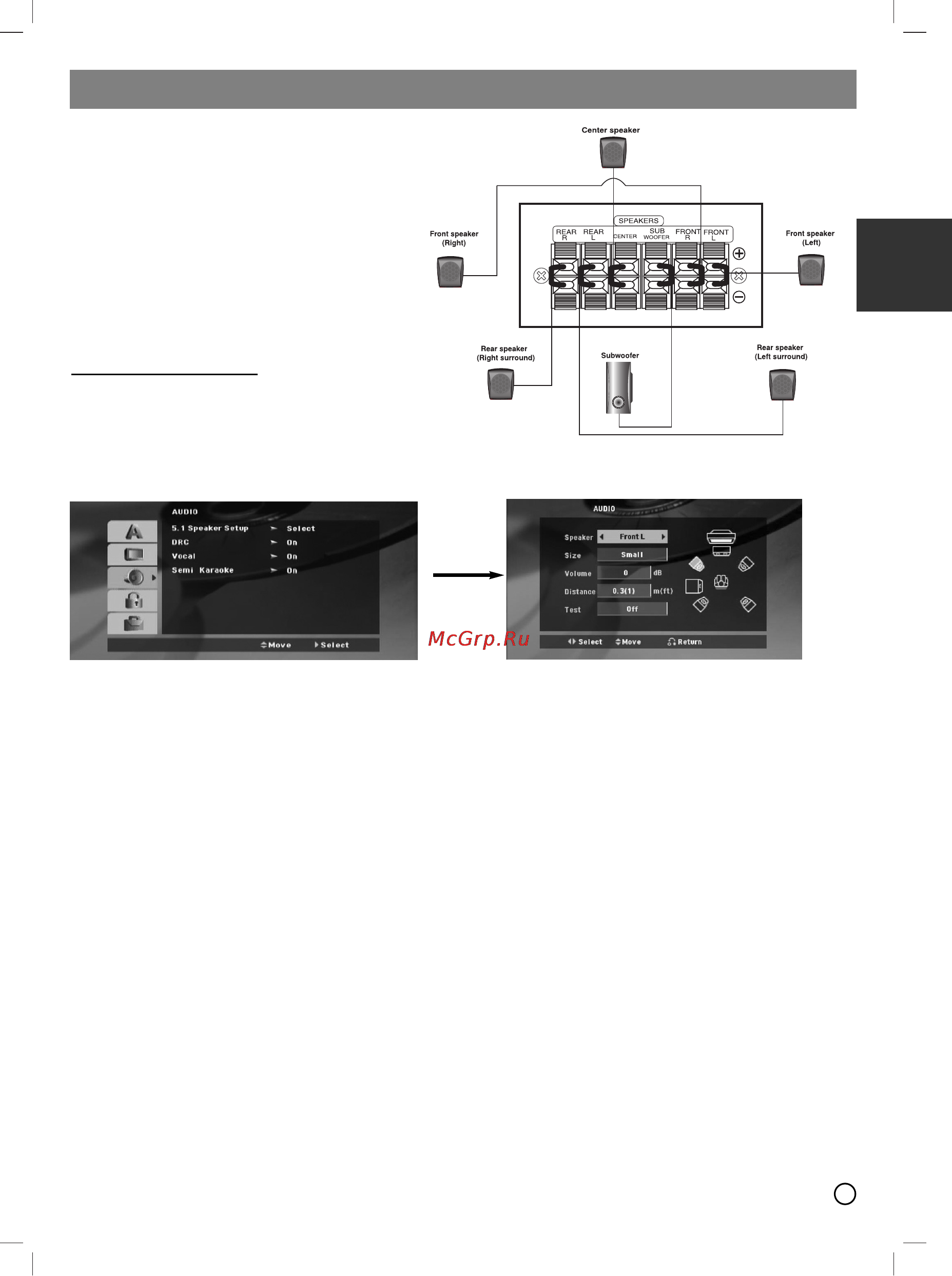

5.1 Speaker Setup
Make the following settings for the built-in 5.1 channel surround decoder.
1. Press ENTER and 5.1 Speaker Setup menu appears.
2. Use b / B to select the desired speaker.
3. Adjust options using v / V / b / B buttons.
4. After setting, returns to the previous menu by pressing RETURN button.
Speaker selection
Select a speaker that you want to adjust. [Front speaker (Front L), Front speaker (Front R), Center Speaker (Center),
Subwoofer (SubWoofer), Rear speaker (Rear L), Rear speaker (Rear R)]
Note:
Certain speaker settings are prohibited by the Dolby Digital licensing agreement.
Size
Since the speaker settings are fixed, you cannot change the settings.
Volume
Press b / B to adjust the output level of the selected speaker. (-6dB ~ 6dB)
Distance
If you connected speakers to your DVD/CD Receiver, setting the Distance lets the speakers know how far the sound
has to travel to reach your set listening point. This allows the sound from each speaker to reach the listener at the
same time.
Press b / B to adjust the Distance of the selected speaker.
Test
Press b / B to test the signals of each speaker. Adjust the volume to match the volume of test signals memorized in
the system.
Front Left (L) → Center → Front Right (R) → Rear Right (R) → Rear Left (L) → SubWoofer
QUICK SETUP GUIDE
Speaker System Connection
Connect the speaker wires the speaker terminals.
To obtain the best possible surround sound, adjust
the speaker parameters (volume, distance, etc.).
Notes:
Be sure to match the speaker wires to the
appropriate terminal on the components, + to +
and – to –. If the cables are reversed, the
sound will be distorted and will lack bass.
If you use front speakers with low maximum
input rating, adjust the volume carefully to avoid
excessive output on the speakers.
Be careful of the following
Be careful to make sure children not to put their
hands or any objects into the *speaker duct.
*Speaker duct: A hall for plentiful bass sound on
speaker cabinet(enclosure).
