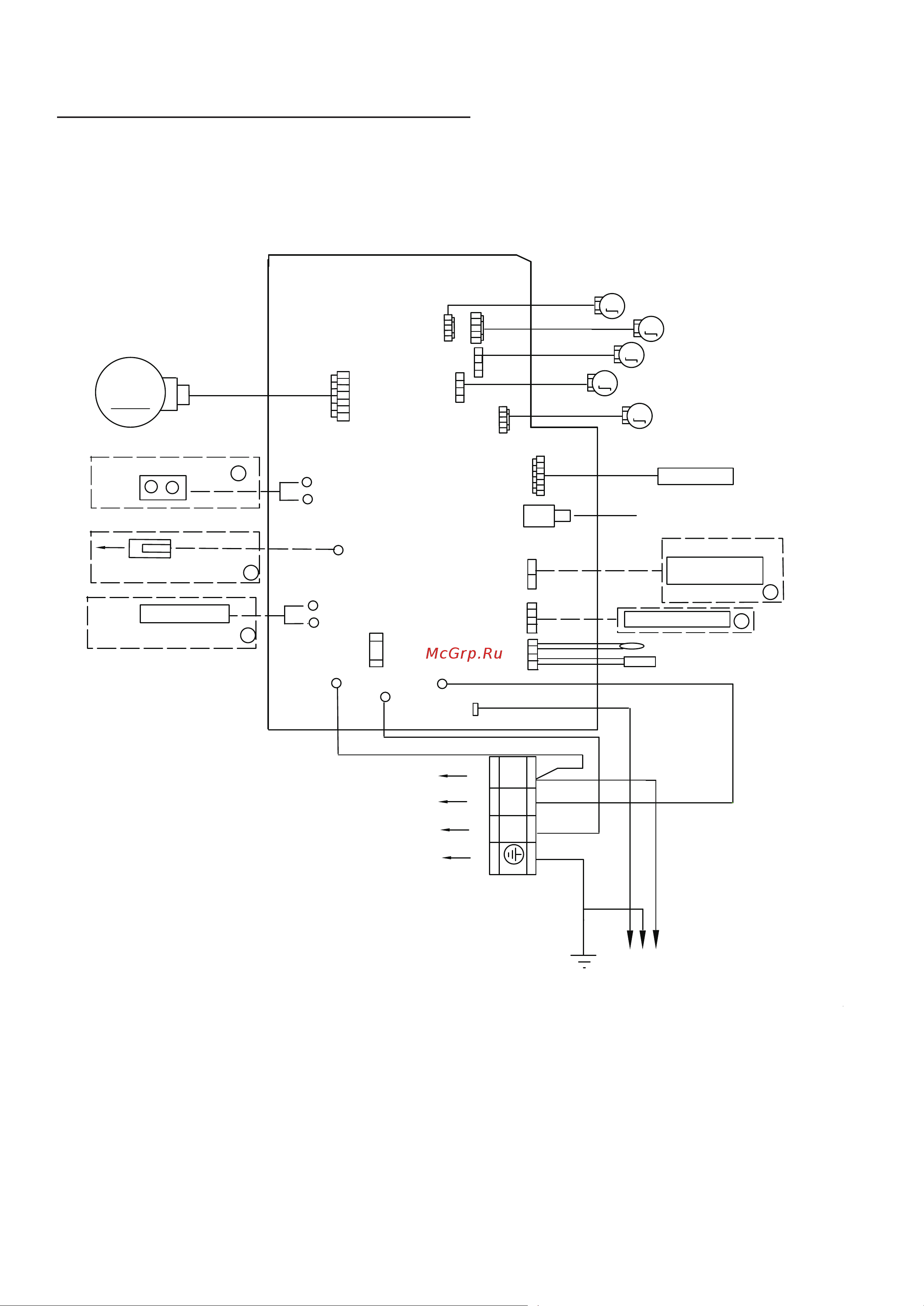

Electrical Diagram
12k wiring diagram of split unit indoor
BL BLUE
W WHITE
Y/G YELLOW/GREEN
R RED
NOTES
B BLACK
BR BROWN
ASSISTANT ELECTRIC HEATING
NET APPLIANCE MODULE
PIPING TEMP.SENSOR
AMBIENT TEMP.SENSOR
DISPLAY BOARD
LEFT STEP MOTOR
RIGHT STEP MOTOR
EMERGENCY SWITCH
LEFT PANEL MOTOR
RIGHT PANEL MOTOR
UP-DOWN STEP MOTOR
INDOOR FAN MOTOR
TO BILATERAL FRESH AIR MOTOR
WIRELESS NET MODULE
FUSE
NOTES：THE DOTTED PARTS ARE OPTIONAL.
WATER ION GENERATOR
Power
1(N)
2(L)
3(C)
BL
HP1 B
HP2 W
R
W
1PH,220V~,50Hz
