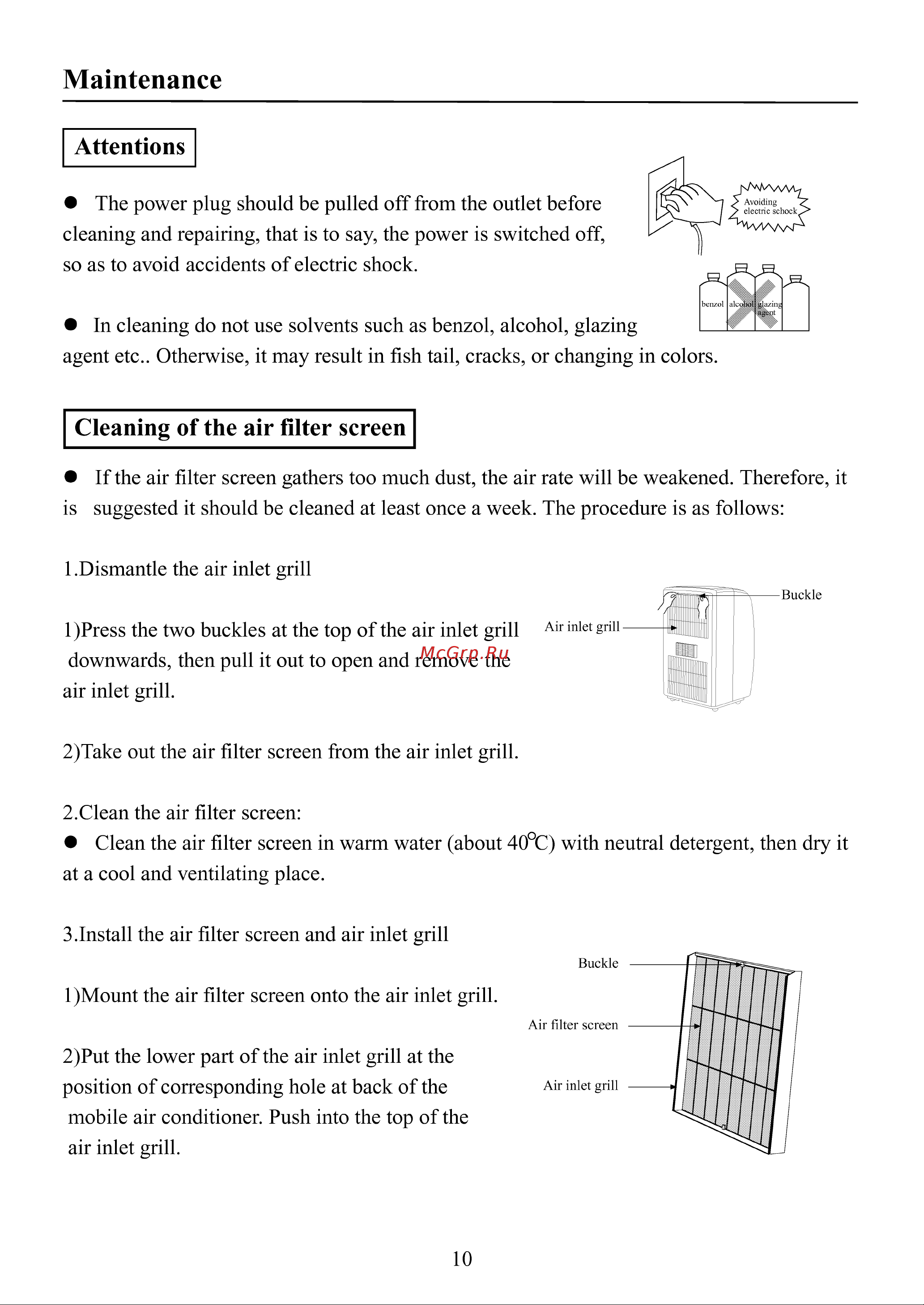

Maintenance Attentions The power plug should be pulled off from the outlet before cleaning and repairing that is to say the power is switched off so as to avoid accidents of electric shock In cleaning do not use solvents such as benzol alcohol glazing agent etc Otherwise it may result in fish tail cracks or changing in colors Cleaning of the air filter screen If the air filter screen gathers too much dust the air rate will be weakened Therefore it is suggested it should be cleaned at least once a week The procedure is as follows 1 Dismantle the air inlet grill l Press the two buckles at the top of the air inlet grill Air inlet grill downwards then pull it out to open and remove the air inlet grill 2 Take out the air filter screen from the air inlet grill 2 Clean the air filter screen Clean the air filter screen in warm water about 40 C with neutral detergent then dry it at a cool and ventilating place 3 Install the air filter screen and air inlet grill l Mount the air filter screen onto the air inlet grill 2 Put the lower part of the air inlet grill at the position of corresponding hole at back of the mobile air conditioner Push into the top of the air inlet grill 10
