Содержание
- Mobile air conditioner 1
- Operation manual 1
- Contents 2
- Outline 3
- Operating principle 4
- The operating principle of the unit is as shown in the figure 4
- Description of the components 5
- Machine body 5
- Control panel 6
- Description of the components 6
- Introduction to component functions 6
- Power switch key press the key to switch on off the power of the air conditioner upon the power switched on the power indicator will light up 2 automatic mode setting key press this key to set automatic running mode when this function is actuated auto indicator will turn on 3 cooling mode setting key press this key to set cooling mode function when cooling mode starts cool indicator will turn on 4 dehumidifying mode setting key press this key to set dehumidifying mode upon dehumidifying mode starts dehumid indicator will turn on 5 fan only mode setting key press this key to set fan running only mode upon which starts fan indicator turns on 6
- Description of the components 7
- Others 8
- Power source 8
- Precautions 8
- Applicable scope of cooling and dehumidifying 9
- Automatic operation 9
- Cooling operation 9
- On off function 9
- Placing requirements 9
- Dehumidifying operation 10
- Fan running 10
- Timer function 10
- Air purifying function 11
- Min protection function of compressor 11
- Power failure resumption function 11
- Water full alarm function 11
- Attentions 12
- Cleaning of the air filter screen 12
- Maintenance 12
- Application locations 13
- Installation of accessories of hot air exhaust duct 13
- Maintenance 13
- Preservation 13
- If the machine exhibits troubles please check the following items before applying for repair 14
- Or service 14
- Troubleshooting 14
Похожие устройства
- Haier AS072AZBHA Инструкция по эксплуатации
- Haier AS102AMBIA Инструкция по эксплуатации
- Haier AS102AKBIA Инструкция по эксплуатации
- Haier AS102AMBKA Инструкция по эксплуатации
- Haier AS112BMBIA Инструкция по эксплуатации
- Haier AS112BKBIA Инструкция по эксплуатации
- Yamaha 25 NMHOS Сервис мануал
- Haier AS112BMBKA Инструкция по эксплуатации
- Haier AU072ACBHA Инструкция по эксплуатации
- Haier AU102ACBHA Инструкция по эксплуатации
- Haier AU182BFBHA Инструкция по эксплуатации
- Haier HSU-07H03/R1(B) Инструкция по эксплуатации
- Haier HSU-10HB03/R1(B) Инструкция по эксплуатации
- Haier HSU-10HE03/R1(B) Инструкция по эксплуатации
- Haier HSU-10HW03/R1(B) Инструкция по эксплуатации
- Haier H2SM-18HA03/R1(B) Инструкция по эксплуатации
- Haier H2SM-18HE03/R1(B) Инструкция по эксплуатации
- Haier H2SM-18HW03/R1(B) Инструкция по эксплуатации
- Haier AB092FCBIA Инструкция по эксплуатации
- Haier AB092FCBIA Сервис мануал

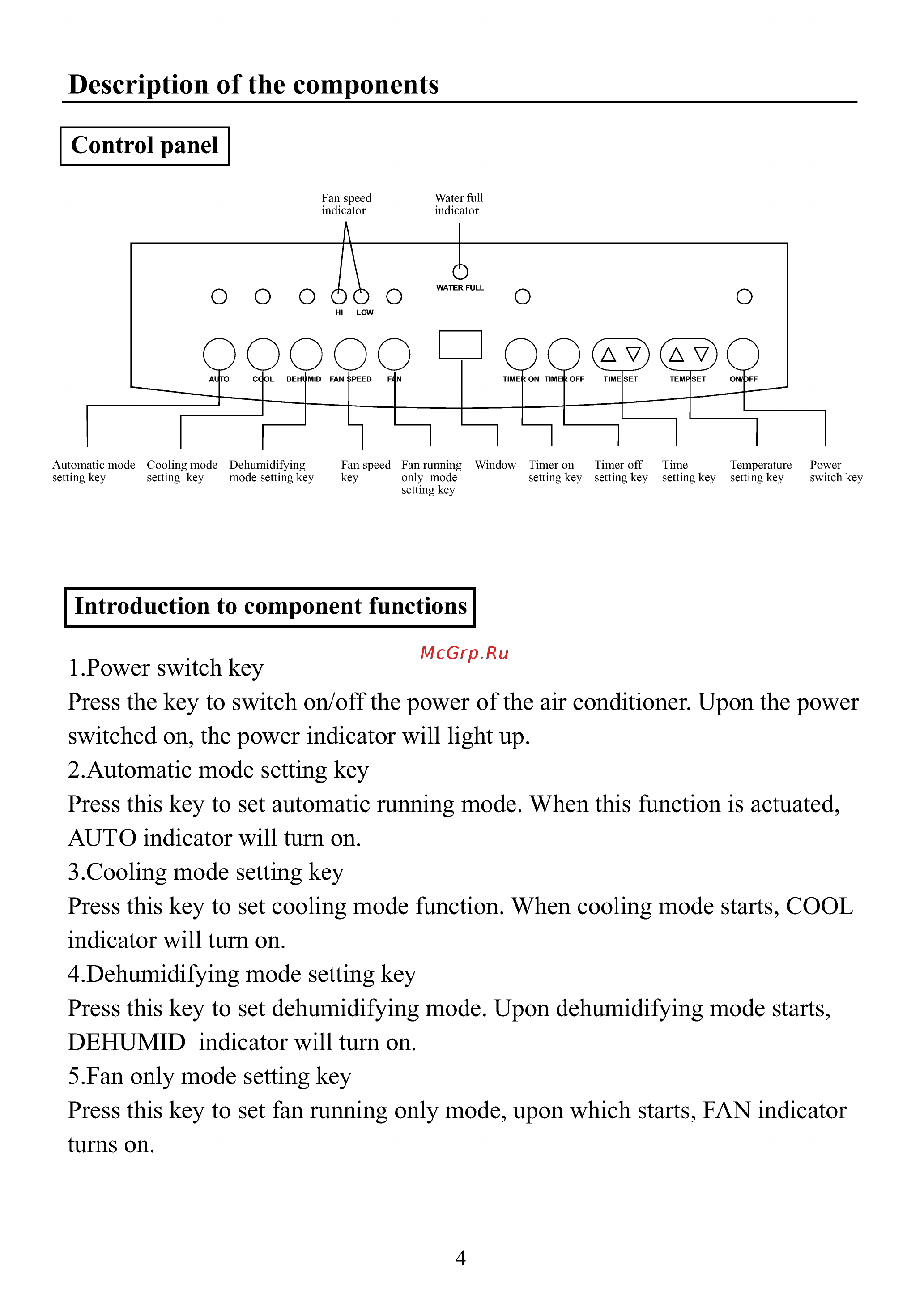

Description of the components Control panel Fan speed indicator Automatic mode setting key Cooling mode Dehumidifying setting key mode setting key Fan speed key Water full indicator Fan running only mode setting key Window Timer on Timer off setting key setting key Time setting key Temperature setting key Introduction to component functions 1 Power switch key Press the key to switch on off the power of the air conditioner Upon the power switched on the power indicator will light up 2 Automatic mode setting key Press this key to set automatic running mode When this function is actuated AUTO indicator will turn on 3 Cooling mode setting key Press this key to set cooling mode function When cooling mode starts COOL indicator will turn on 4 Dehumidifying mode setting key Press this key to set dehumidifying mode Upon dehumidifying mode starts DEHUMID indicator will turn on 5 Fan only mode setting key Press this key to set fan running only mode upon which starts FAN indicator turns on 4 Power switch key
