Haier AB142ACBJA [15/27] Selection of installation place

1.Selection of Installation Place

(1) Place above the ceiling where it is enough space to arrange the unit.

(2) Place where the drainage pipe can be arranged well.

(3) Place where inlet and outlet air of indoor and outdoor unit will not be blocked.

(4) Do not expose the unit to the place with heavy oil or moisture (e.g.kitchen and workshop).

(5) Do not set the unit in the place where destructive gas (such as sulfuric acid gas) or pungent

gas (thinner and gasoline) concentrates and retains.

(6) Place strong enough to support the unit .

(7) No expensive articles such as television and piano below indoor unit.

(8) Enough space for maintenance.

(9) Place more than 1m away from television and radio to avoid disturbing television and radio.

(10) Easy for maintenance.

2.Installation Preparation

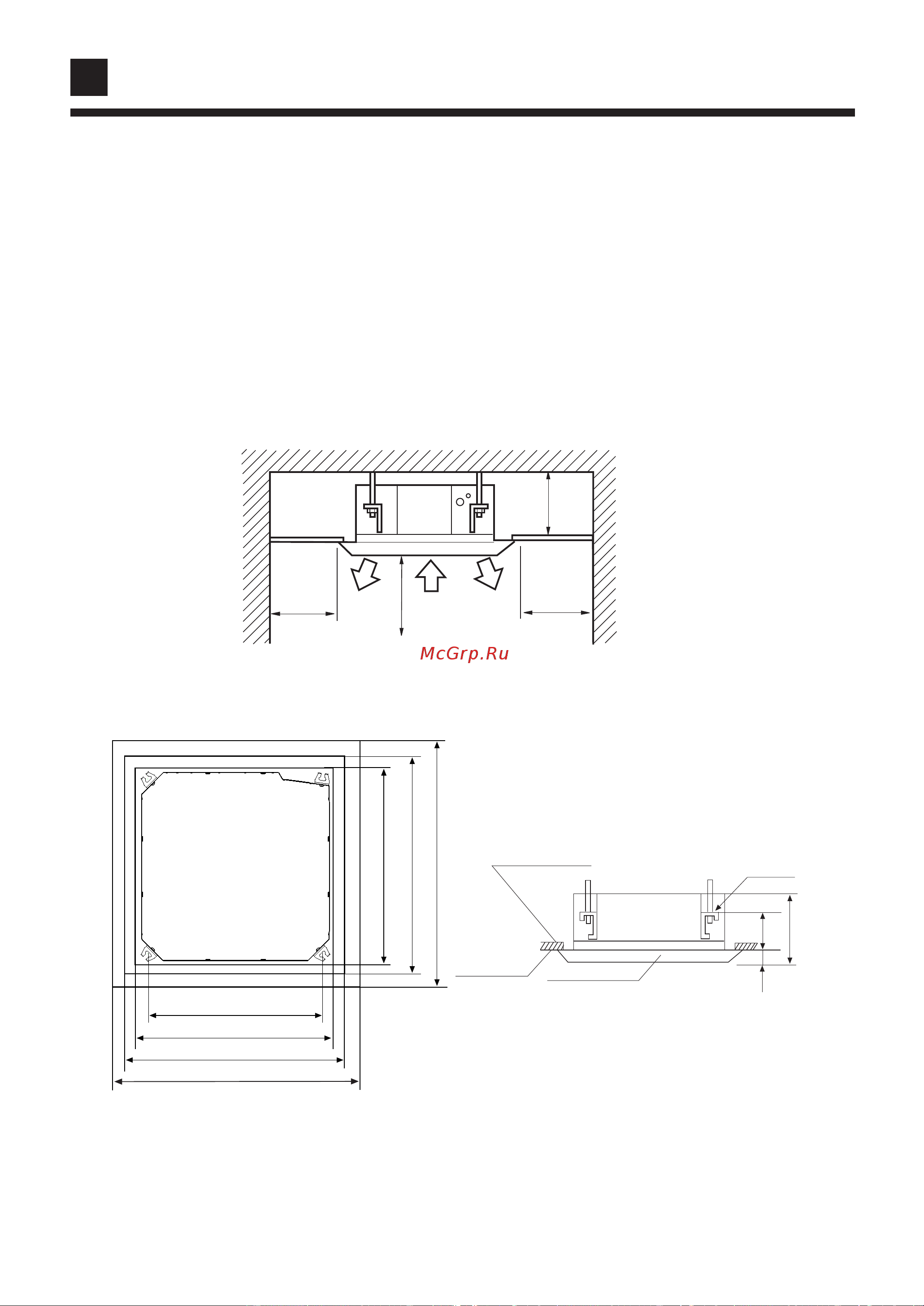

(1) Position of ceiling opening between unit and suspending bolt (front view of unit).

(2) Prepare all piping (refrigerant,water drainage )and wires (connection wire of remote controller,

indoor unit connection wires) to the indoor unit before installation in order to connect indoor unit

immediately after installation.

Overlap between ceiling and

ornament panel shall be 25mm

Suspending bolts

Ceiling

Ornament panel

150mm

320mm

60mm

Air outlet

Air inlet

2.5m Over

1.5m

0.31m

Distance between

suspending bolts 535mm

Indoor unit 570mm

Ceiling opening 650mm

Ornament panel 700mm

Indoor unit 570mm

Ceiling opening 650mm

Ornament panel 700mm

Installation Procedures
