Haier AB142ACBJA [18/27] Installation procedures

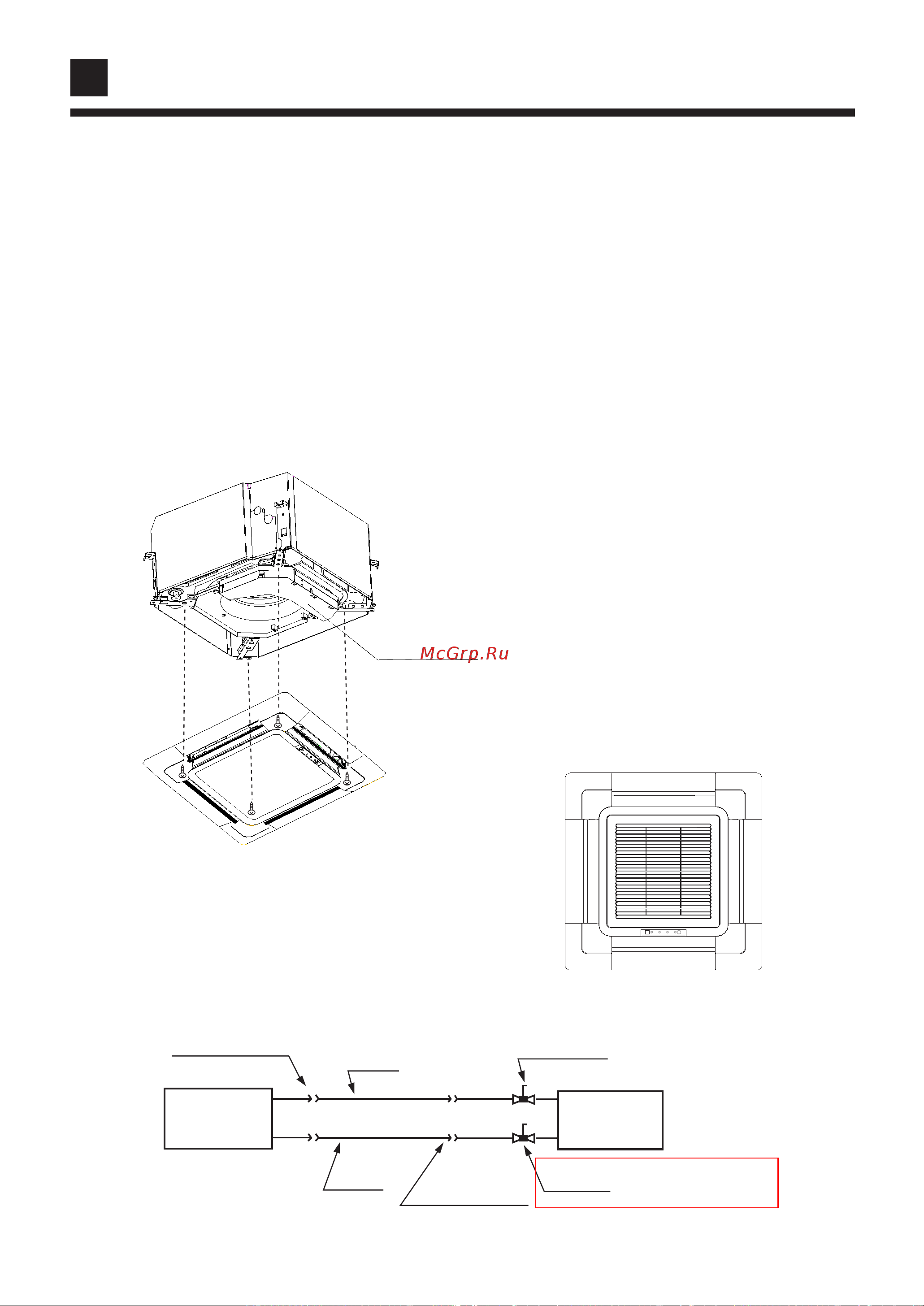

6. Installation of Ornament Panel

Install ornament panel on indoor unit

(1) Check whether indoor unit is horizontal with leveler or polythene pipe filled with water , and

check that the dimension of the ceiling opening is correct. Take off the lever gauge before

installing the ornament panel.

(2) Fasten the screws to make the height difference between the two sides of indoor unit less than

5mm.

(3) Firstly fix it with screws temporarily.

(4) Fasten the two temporarily fixing screws and other two, and tighten the four screws.

(5) Connect the wires of synchro-motor.

(6) Connect the wire of signal.

(7) If no response of remote controller,check whether the wiring is correct,restart remote controller

10 seconds after shut off power supply.

Panel limitation board installation

(1)Install the panel board in the direction shown in

the figure.

(2)The incorrect direction will result in water leakage,

meanwhile swing and signal receiving are displayed

that cannot be connected.

Electric control box

Piping Connection

Flare connection

Gas pipe

3-way valve

Indoor

Unit

Outdoor

unit

Liquid

pipe

3-way valve

Flare connection

****

Installation Procedures
