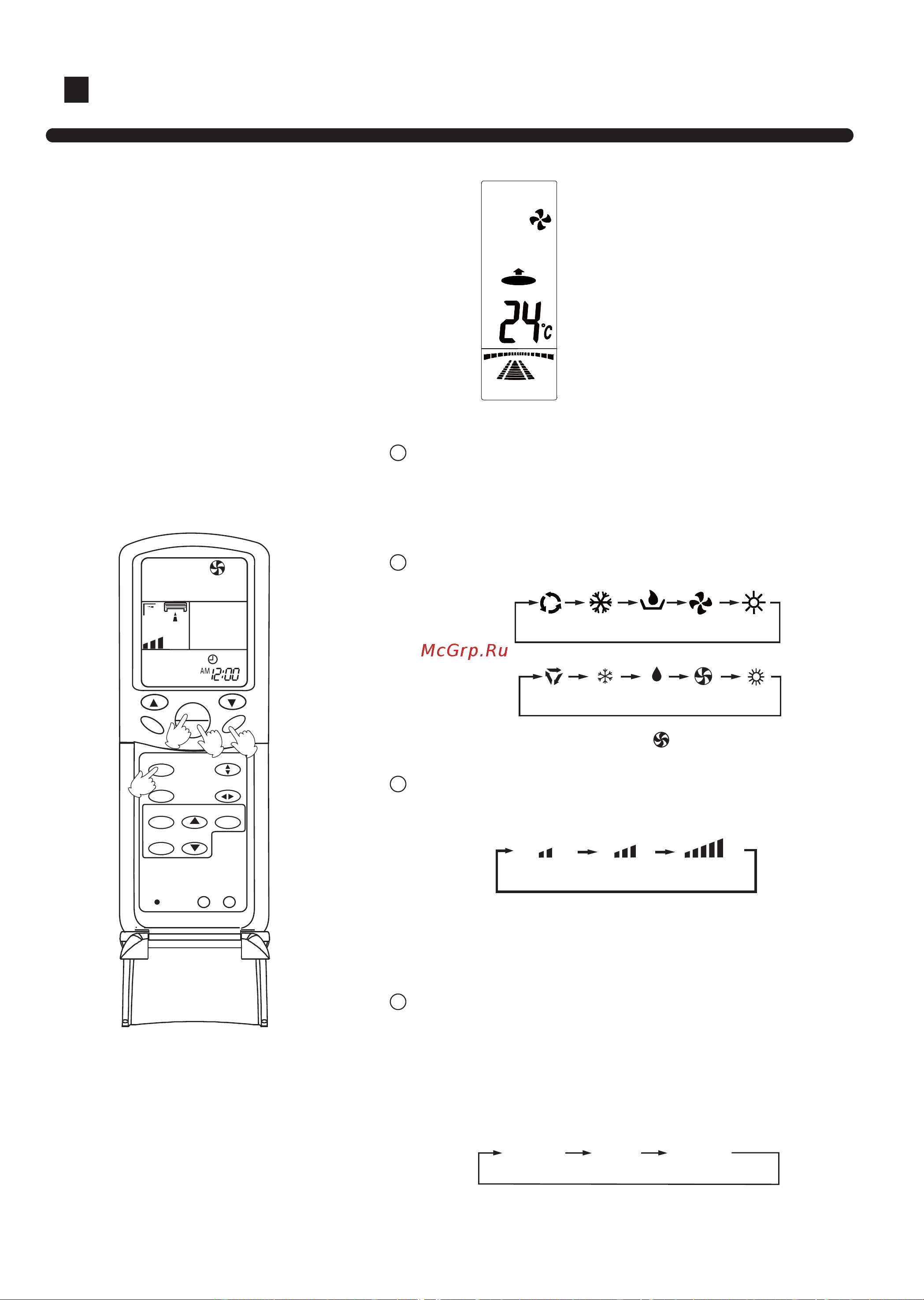

Operation
Fan
Manual Operation
Press ON/OFF button
Unit starts running.
The previous status appears on the display
(except. TIMER, SLEEP and SWING mode)
Press MODE button. For each press,operation mode
changes as follows:
Select Fan operation shows " ", Fan operation starts.
Press ON/OFF button
Unit stops running, and when entering this mode for the
next time, it will show the previous setting.
4
1
2
3
Press FAN button. For each press, fan speed changes as
follows:
Note:
In this mode, temp. can't be selected, temp.setting will not be
show in LCD display.In Fan operation mode, "AUTO" fan speed
is not available. Operation cycles are as follows:
LOW MID HIGH
Remote-control unit
AUTO COOL DRY HEAT
Manual
Remote
controller
FAN
AUTO COOL DRY FAN HEAT
Unit runs at the speed displayed on LCD.
Remote
controller
LOW MID HIGH
ON
OFF
TEMP
HEALTH
FAN
MODE
SLEEP
SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
1
2
3
4
9
TEMP
SWING
