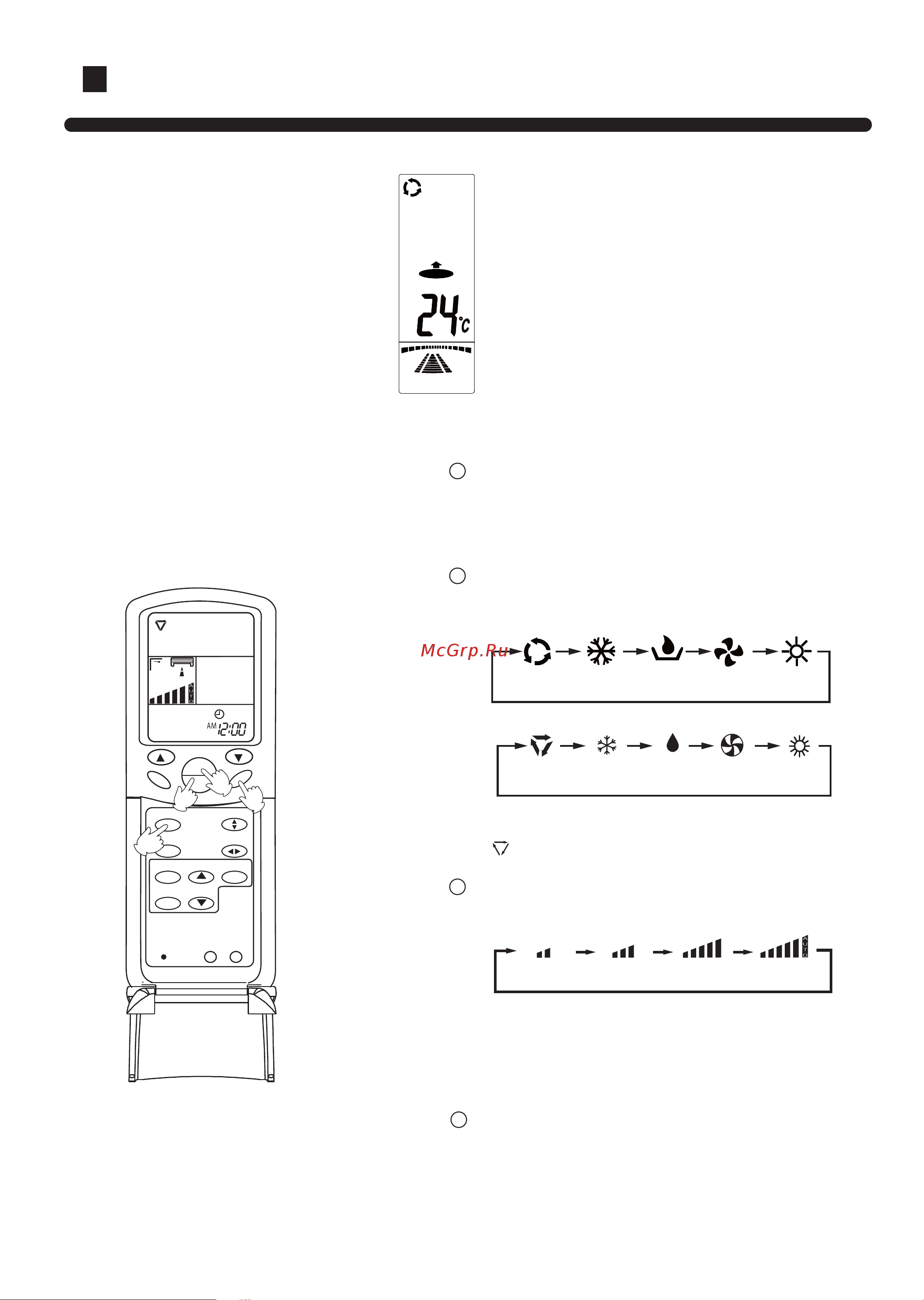

Operation
Auto
Manual
Remote-control unit
AUTO COOL DRY HEAT
2
1
Press ON/OFF button
Unit starts running.
The previous status appears on the display
(except. TIMER, SLEEP and SWING mode)
Press MODE button. For each press,
operation mode changes as follows:
3
Manual
Remote
controller
FAN
AUTO COOL DRY FAN HEAT
Press ON/OFF button
Unit stops running.
4
Select Auto run,
" " appears and auto run starts.
Press FAN,For each press, operation mode
changes as follows:
Remote
controller
LOW MID HIGH AUTO
ON
OFF
TEMP
HEALTH
FAN
MODE
SLEEP
SWING
CLOCK
TIMER
SET
LOCK
LIGHT
RESET
2
4
Unit runs at the speed displayed on LCD.
When fan speed is AUTO,it is changed outomatically
according to the indoor temperature.
Manual find it in page 20
Note:
During Auto run operation, temp. setting will not be shown in LCD display, unit will select heating, cooling
or fan operationaccording to the room temp.
