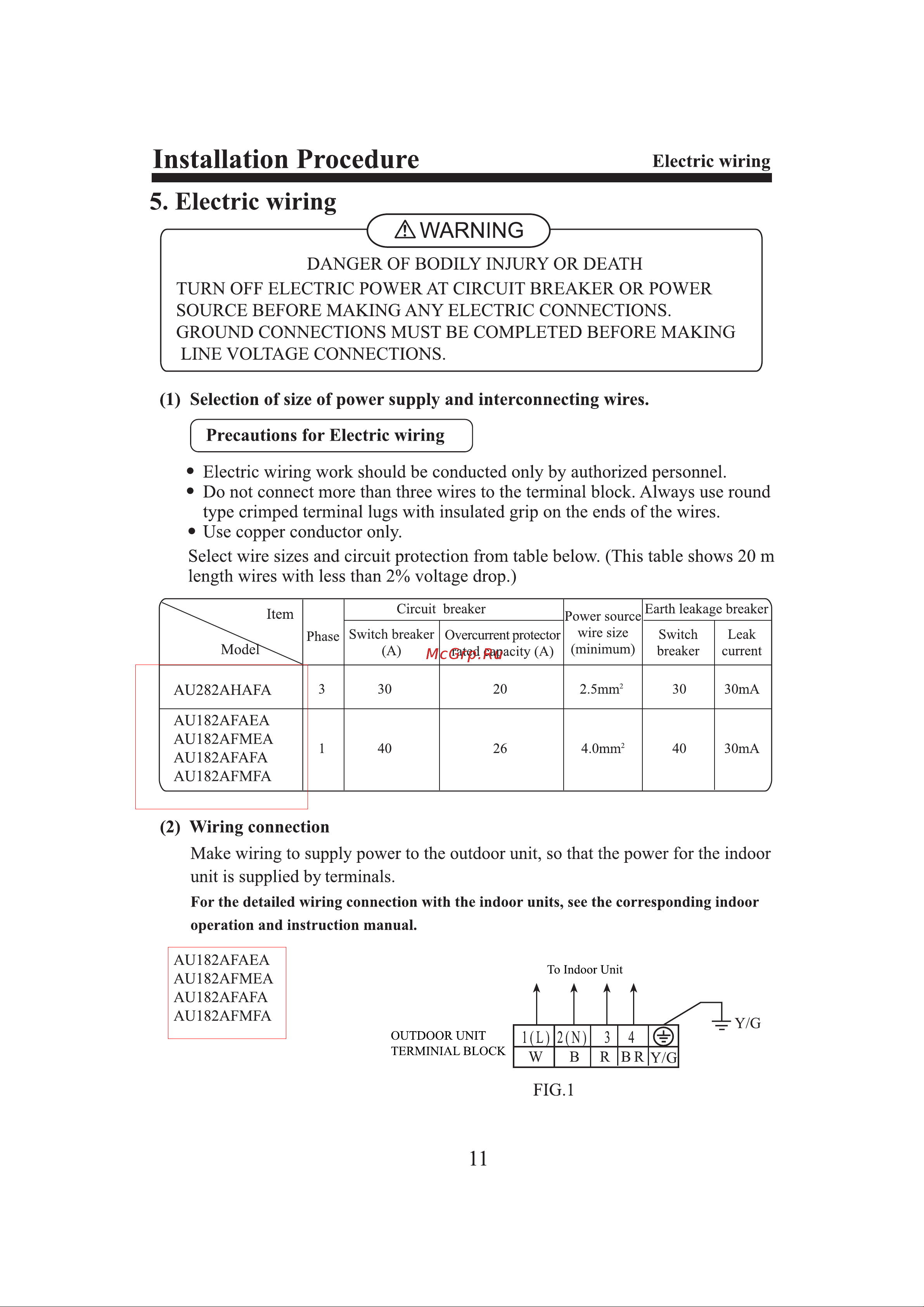

Installation Procedure Electric wiring 5 Electric wiring A WARNING DANGER OF BODILY INJURY OR DEATH TURN OFF ELECTRIC POWER AT CIRCUIT BREAKER OR POWER SOURCE BEFORE MAKING ANY ELECTRIC CONNECTIONS GROUND CONNECTIONS MUST BE COMPLETED BEFORE MAKING LINE VOLTAGE CONNECTIONS 1 Selection of size of power supply and interconnecting wires Precautions for Electric wiring Electric wiring work should be conducted only by authorized personnel Do not connect more than three wires to the terminal block Always use round type crimped terminal lugs with insulated grip on the ends of the wires Use copper conductor only Select wire sizes and circuit protection from table below This table shows 20 m length wires with less than 2 voltage drop Circuit breaker Item Phase Switch breaker A Power source Overcurrent protector wire size minimum rated capacity A Earth leakage breaker Switch breaker Leak current AU282AHAFA 3 30 20 2 5mm2 30 30mA AU182AFAEA AU182AFMEA AU182AFAFA AU182AFMFA 1 40 26 4 0mm2 40 30mA _______ 2 Wiring connection Make wiring to supply power to the outdoor unit so that the power for the indoor unit is supplied by terminals For the detailed wiring connection with the indoor units see the corresponding indoor operation and instruction manual AU182AFAEA AU182AFMEA AU182AFAFA AU182AFMFA OUTDOOR UNIT TERMINIAL BLOCK 11
