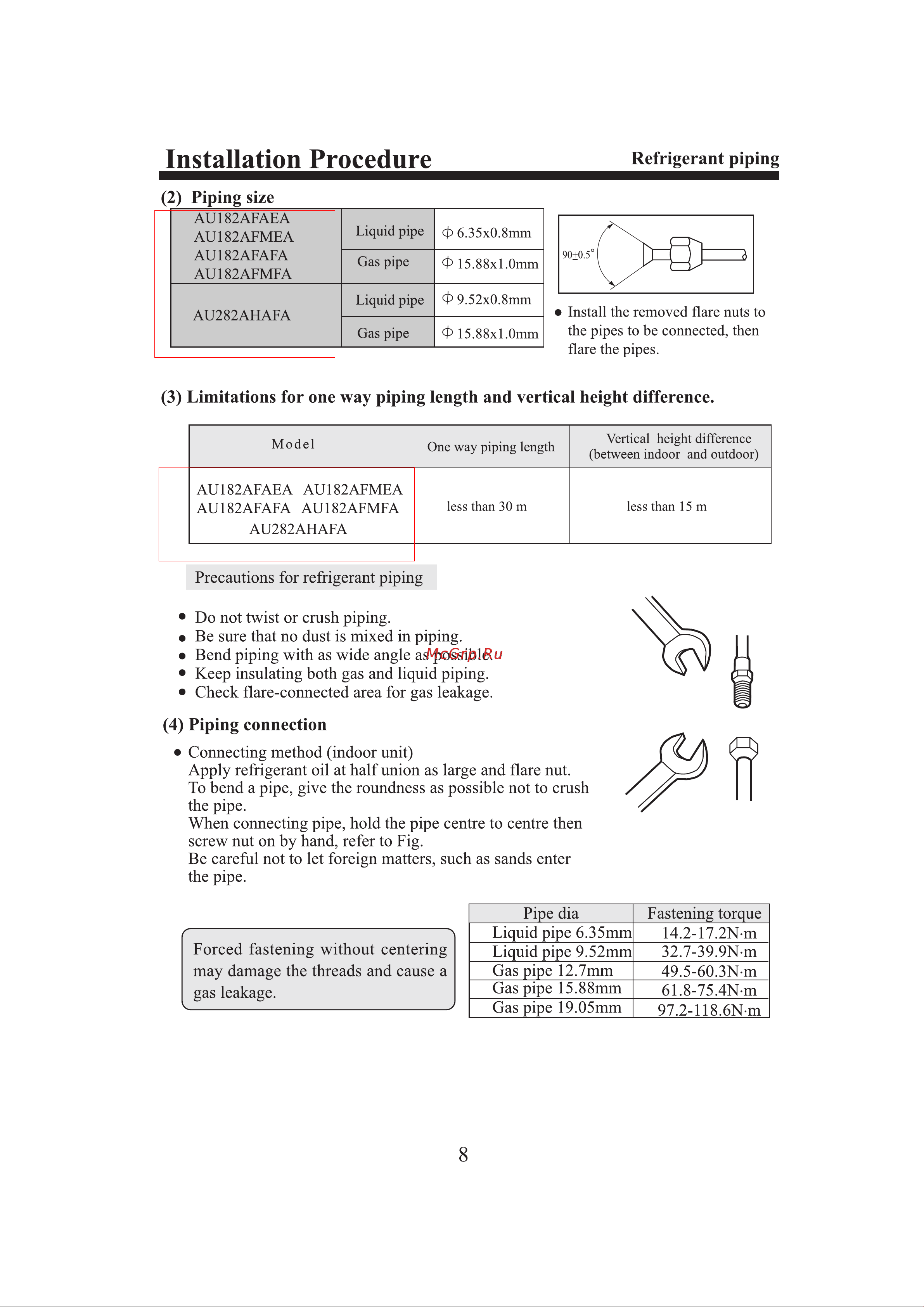

Installation Procedure Refrigerant piping 2 Piping size AU182AFAEA AU182AFMEA AU182AFAFA AU182AFMFA Liquid pipe T 6 35x0 8mm Gas pipe 15 88xl 0nun Liquid pipe 9 52x0 8mm AU282AHAFA Gas pipe T15 88x1 0mm Install the removed flare nuts to the pipes to be connected then flare the pipes 3 Limitations for one way piping length and vertical height difference Model One way piping length AU182AFAEA AU182AFMEA AU182AFAFA AU182AFMFA AU282AHAFA Vertical height difference between indoor and outdoor less than 30 m less than 15 m Precautions for refrigerant piping Do not twist or crush piping Be sure that no dust is mixed in piping Bend piping with as wide angle as possible Keep insulating both gas and liquid piping Check flare connected area for gas leakage 4 Piping connection Connecting method indoor unit Apply refrigerant oil at half union as large and flare nut To bend a pipe give the roundness as possible not to crush the pipe When connecting pipe hold the pipe centre to centre then screw nut on by hand refer to Fig Be carefill not to let foreign matters such as sands enter the pipe Pipe dia Liquid pipe 6 35mm Liquid pipe 9 52mm Gas pipe 12 7mm Gas pipe 15 88mm Gas pipe 19 05mm Forced fastening without centering may damage the threads and cause a gas leakage 8 Fastening torque 14 2 17 2N m 32 7 39 9N m 49 5 60 3N m 61 8 75 4N m 97 2 118 6N m
