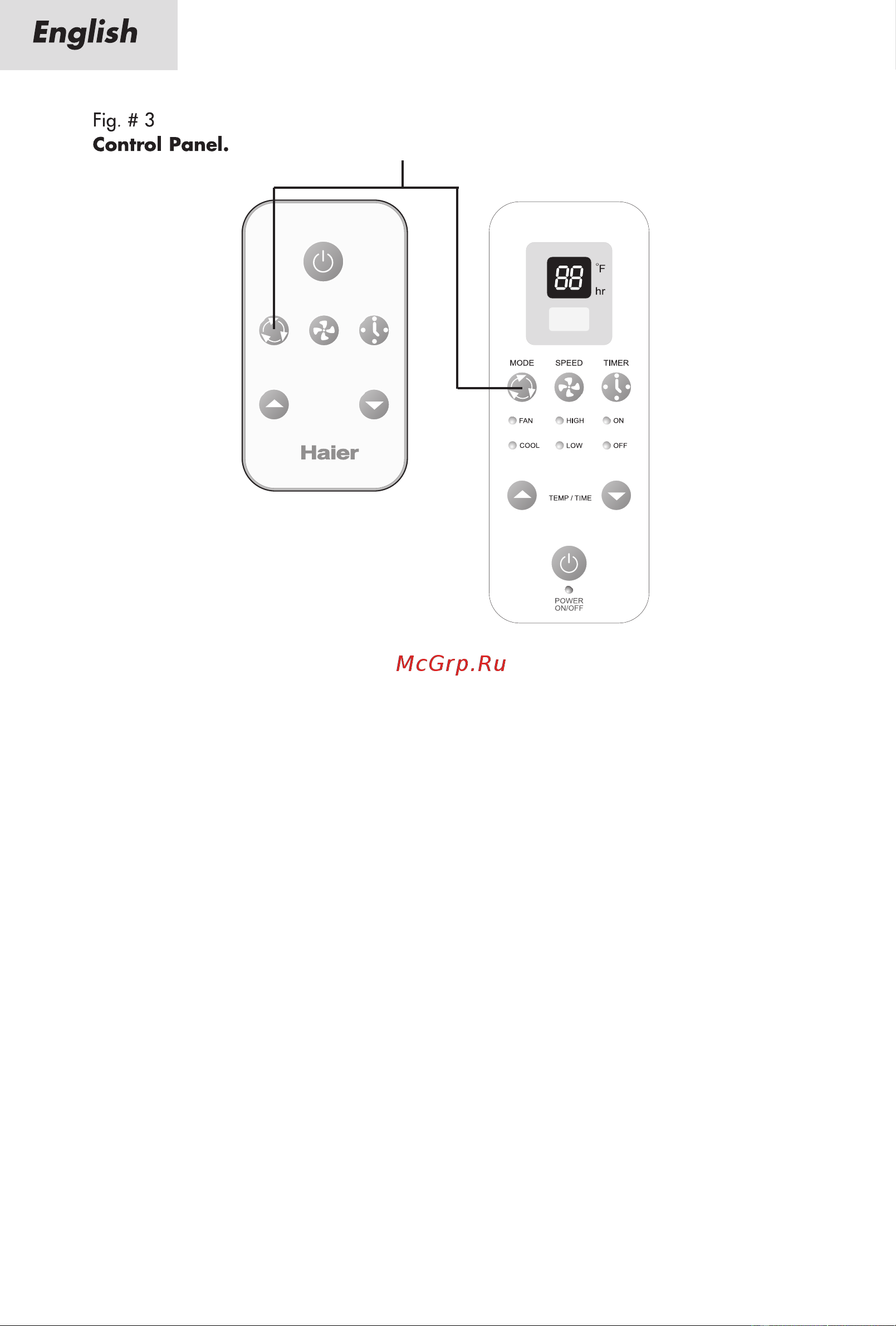

TEMP/TIME
MODE SPEED TIMER
ON/OFF
Once the function mode is decided you will have to set the fan speed.(See fig. #4)
Every time you press the SPEED button, fan speed will change between LOW, HIGH.
1) If you choose the COOL mode you can run the fan in one of the 2 speeds HIGH,
LOW.
2) For cool days you may want to run the "FAN" function. Here the fan runs at one
of 2 speeds, HIGH or LOW.
10
