Haier ESA3055 [17/24] Model hwf06xc5 esam055
![Haier ESA3055 [17/24] Model hwf06xc5 esam055](/views2/1824244/page17/bg11.png)

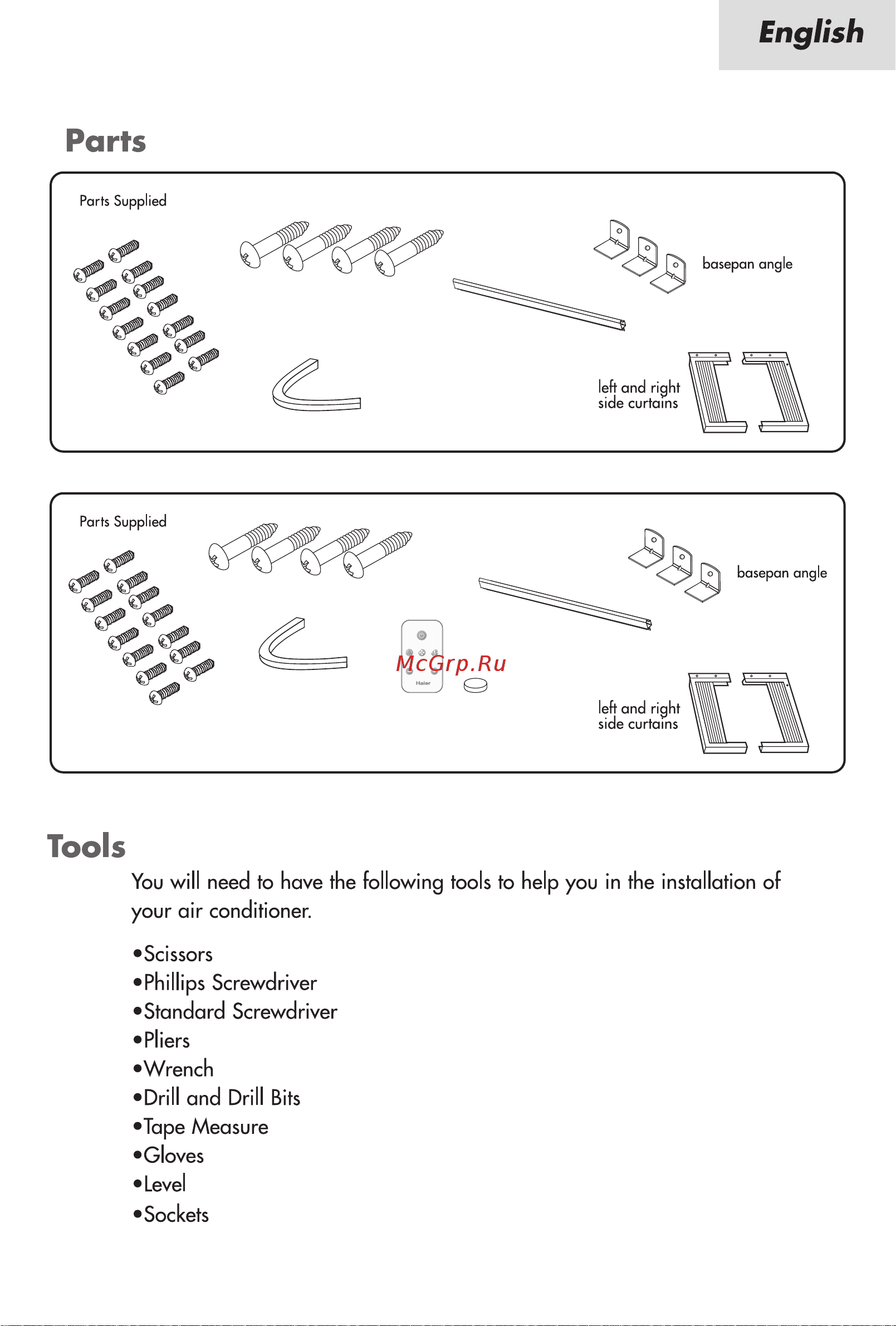

ìCR2025ì battery
Remote
control
window seal gasket
short screws 13/32"
wood screws 31/32"
Model:HWF06XC5, ESAM055
window seal gasket
short screws 13/32"
wood screws 31/32"
Model:HWR06XC5, ESA3055
TEMP/TIME
MODE SPEED TIMER
ON/OFF
top rail
top rail
15
