Haier HSU-182LD08 [7/24] Parts and functions
![Haier HSU-182LD08 [7/24] Parts and functions](/views2/1825586/page7/bg7.png)
6

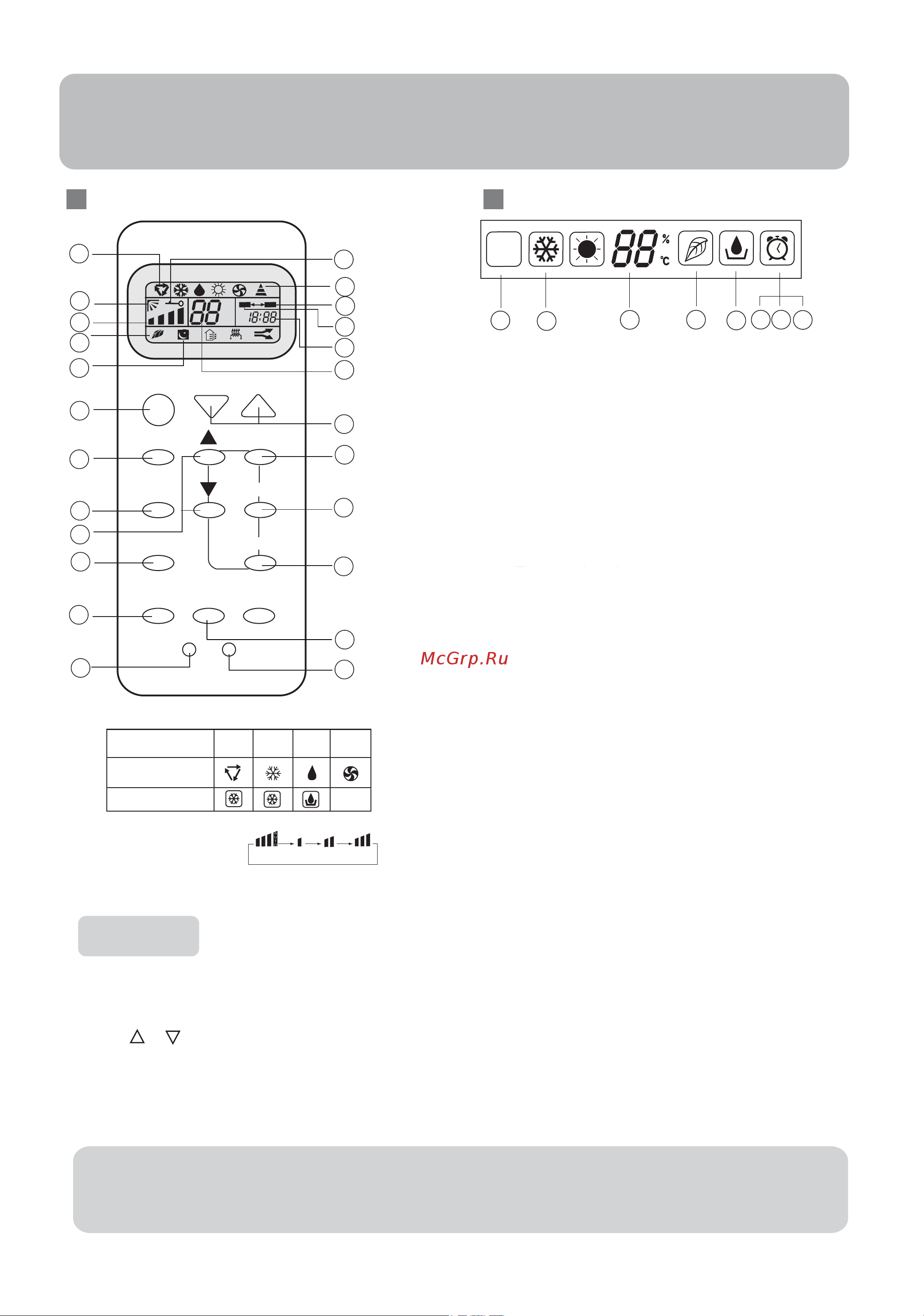

Parts and Functions
NOTE: Cooling only unit do not have displays and functions related with heating
ON/OFF
TEMP
MODE SET
FAN
TIMER
SWING
CLOCK
SLEEP
LOCK RESET
5
6
7
8
9
10
19
20
21
22
23
4
1
2
3
11
12
13
14
15
16
A
U
T
O
ON OFF
AM
PM
o
C
17
18
24
HEALTH
1. Operation mode display
2. SWING display
3. FAN SPEED display
LO MED HIAUTO
5. SLEEP display
6. LOCK display
7. SIGNAL SENDING display
8. TIMER OFF display
9. TIMER ON display
10. CLOCK display
11. TEMP display
12. POWER ON/OFF
Used for unit start and stop.
13. MODE
Used to select
AUTO run, COOL,
DRY and FAN operation
15. HOUR
Used to set clock and timer setting.
16. SWING
Used to set auto fan direction.
17. SLEEP
Used to select sleep mode.
18. LOCK
Used to lock buttons and LCD
display.
19. TEMP.
Used to select your desired temp.
20. SET
Used to confirm timer and clock settings.
21. TIMER
Used to select TIMER ON, TIMER OFF,
TIMER ON-OFF
22. CLOCK
Used to set correct time
23. RESET
normal condition.
Used to reset the controller back to
4. HEALTH display
24. HEALTH
Used to operate the healthy function
Hints
After replacing with new batteries, remote controller will conduct self-check, displaying
all information on LCD. Then, it will become normal.
Display board
25
Operation mode
AUTO
FAN
COOL DRY
Remote controller
Display board
25.
Singal receiver hole
26. Ambient temp.display
When receiving the remote control signal, display the set
temperature and in the rest time the room temperature is
displayed and this room temperature is only for reference.
26
4
14. FAN
Used to select fan speed LO, MED, HI, AUTO
1
8
9
1
Remote controller
Clock set
When unit is started for the first time and after replacing batteries in remote controller,
clock should be adjusted as follows:
Press CLOCK button, "AM" or "PM" flashes.
Press or to set correct time. Each press will increase or decrease 1min. If the
button is kept depressed, time will change quickly.
After time setting is confirmed, press SET, "AM "and "PM" stop flashing, while clock
starts working.
