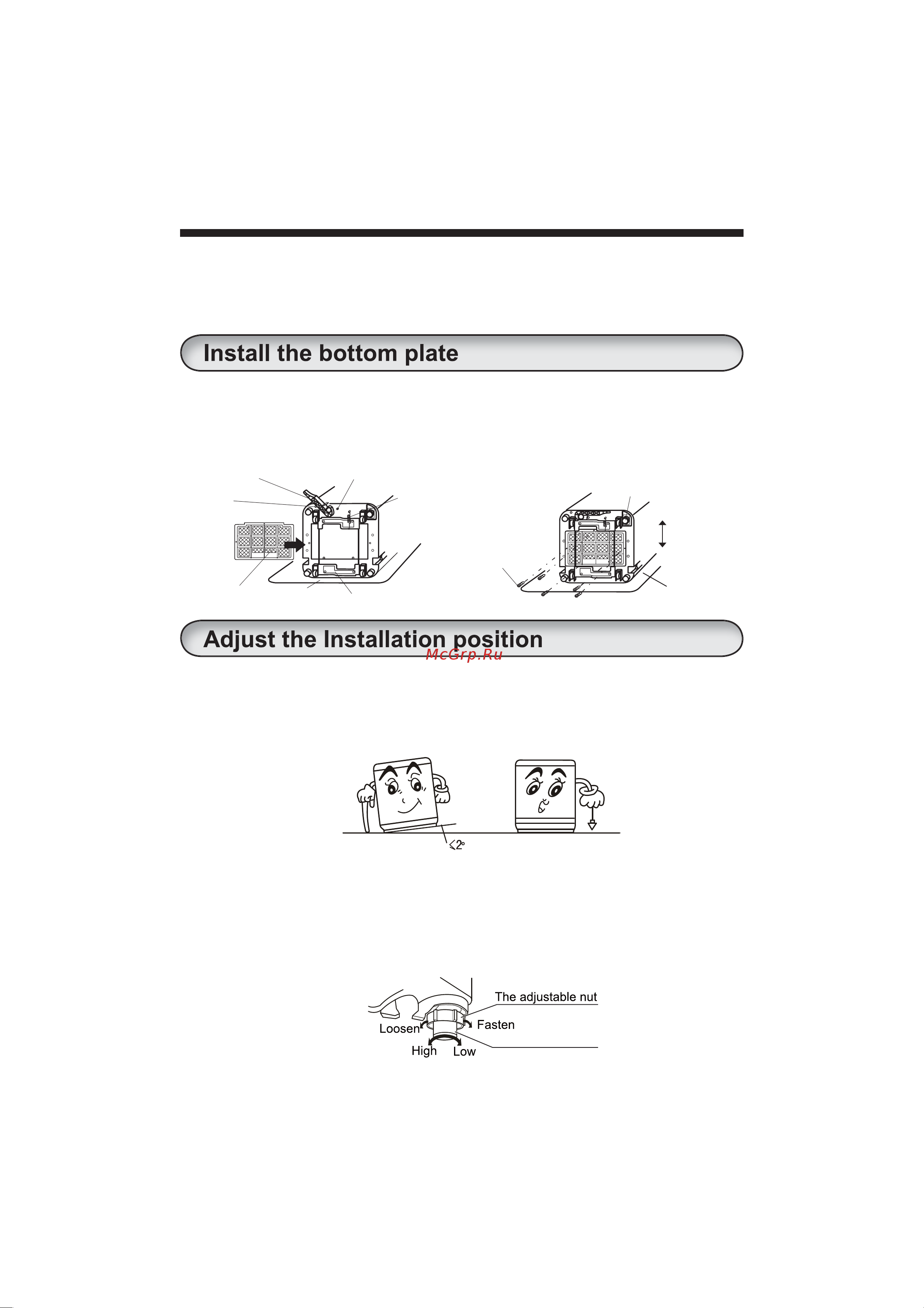

Installation and adjustment

Please install and adjust the machine according to the requirement of the manual. It is very important

to your security and correct operating the machine.

1. move the control handle of trundle to

the point 1 and the control handle fix on

the second reference column; then insert

the base panel from the side and fix it in

the suitable site which aim to the hool of bolt.

2.Caste hit the control handle position

shown in the figure ,the control will be

fixed by the frist reference columns to

install the screw into the bottom of the

washing machine with a screwdriver,

then gently propped.

the control handle of trundle

Adjust the adjustable foot:

To twist the adjustable foot, please ﬁ rst lift up the side of the leg slightly, loosen the

adjustable nut, and twist the foot. Please make sure to keep the washing machine

in balance.

After adjustment, fasten the nut.

The adjustable foot

The washing machine away from wall should be overrun 20mm. The largest allowable slope

of the shank base of the machine is 2°. The slanting or rough ground will result in unstable

running or stoppage of the machine. Please adjust it with following methods:

CarpetCarpet

Back

Front

the adjustable foot

Bottom plate

Screw

Confirm

it's horizontal:

Hang the lead line to check if it is horizontal.



the frist reference colunm

pullback spring

figure 1 figure 2

the operation of trundle

the second

reference colunm
