The drain hose shall drain smoothly.

Do not trample or press the drain hose.2The height of the drain hose shall be less

than 10cm , or the drainage will not be smooth,

and cost such long time that the machine may

stop at mid way.

If the drain hose is too long, cut it at mid

point. To make smooth drainage,cut the front

end of the hose slantingly.

If the extra hose is too long,cut it either at A or at B point.

If extra drain hose is needed,please

make separate purchase.The inner

diameter of the extra hose shall not

less than 30mm, and the length shall

not exceed 1.5m.

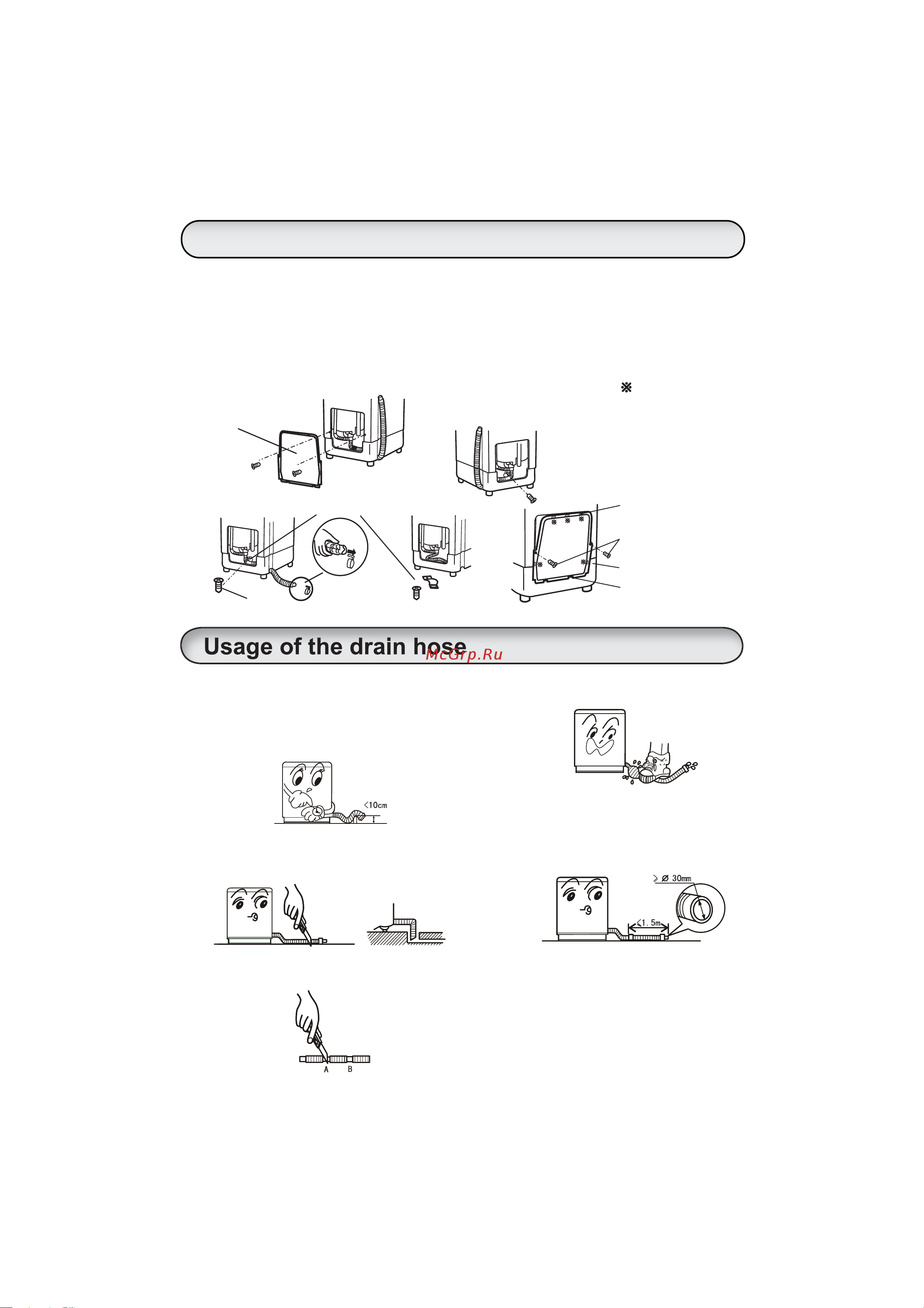

How to change the direction of the drain hose

Figure 2

Figure 3

Back cover

Figure 1

Up claws

Screws

Figure 4

Down claws

Two sides claws

Drain hose rack

Screws

1. Dismount the back cover of the

washing machine.

2. Put down the drain hose. Take off

the drain hose rack. Then take off the

screws of the drain hose rack.

Put the drain hose into the cabinet.

(As indicated in Figure 2).

3. Extend the drain hose from the

other side. And then fix the screws of

the drain hose rack. And f ix the drain

hose onto the cabinet with the drain

hose rack. (As indicated in Figure 3).

4. Install the back cover, first put the

down claws on the cabinet, and then

put the claws(marked with )into the

cabinet from down to up, and fix the

screws. (As indicated in Figure 4)
