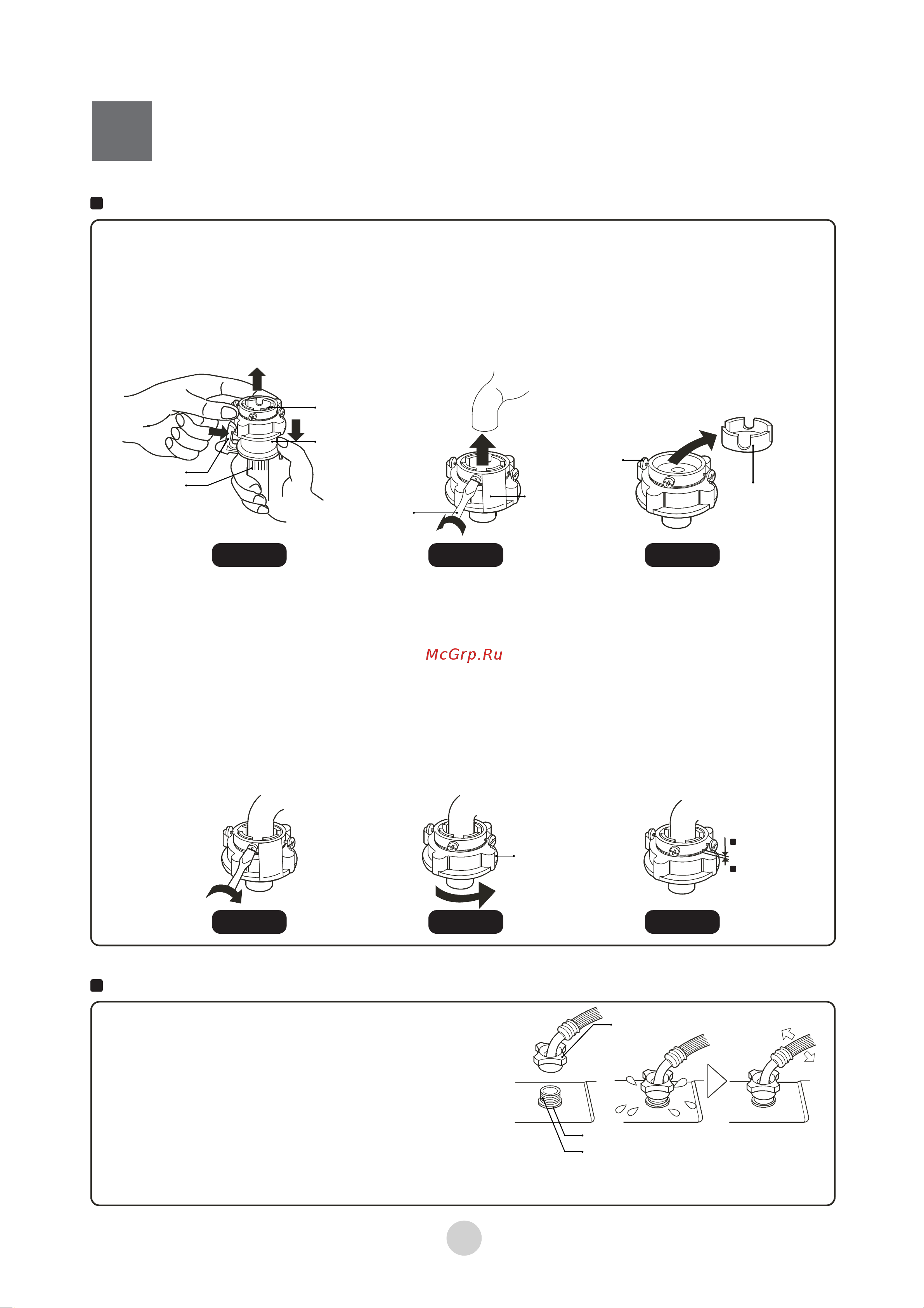

Installation & Adjustment
Connection between the water inlet hose jointer and the water faucet
1.Press the lower end of the lock lever and push down the slider. Take off the
●
water
inlet hose jointer rom the water inlet hose component. See to Figure 1.
2.Take off the nameplate. Make sure the threading is 4mm above the upper surface
of the nut. See to Figure 6. If the threading is less than 4mm above the upper
surface of the nut, please loosen the screws.
3.Loosen the screw till the water faucet can be accessed. Put the jointer of the water
inlet hose on the faucet. See to Figure 2.(If the faucet is too large and the jointer
can not be set on the water faucet,please loosen the four screws and take out the
bushing in the jointer. The front end of the faucet must be smooth, otherwise it may
leak water. See to Figure 3.)
●
4.Fasten the four screws evenly. See to Figure 4.
5.Twist the fastening nut, see to Figure 5. After installation, the threading is
less than 2mm above the upper surface of the nut. See to Figure 6.
About 4mm before
●
twisting
About less than
2mm after twisting
Lock lever
Water inlet hose
Slider
Water inlet hose jointer
Screw knife
Nameplate
Screw
Bushing
Screw nut
Figure 1 Figure 2 Figure 3
Figure 4
●
Figure 5 Figure 6
Connection between the water inlet hose and the washer
1.Do not take off the water absorption cushion.
●
Please check if the cushion is dropped or
damaged before each usage.If it happens
please contact our after-sale department
immediately.
2.Put the nut of the water inlet hose on the
valve jointer.
3.Fasten the nut. Swing it gently to confirm if it’s suitable.
nut of the water inlet hose
jointer of the water inlet valve
water absorption cushion
7
