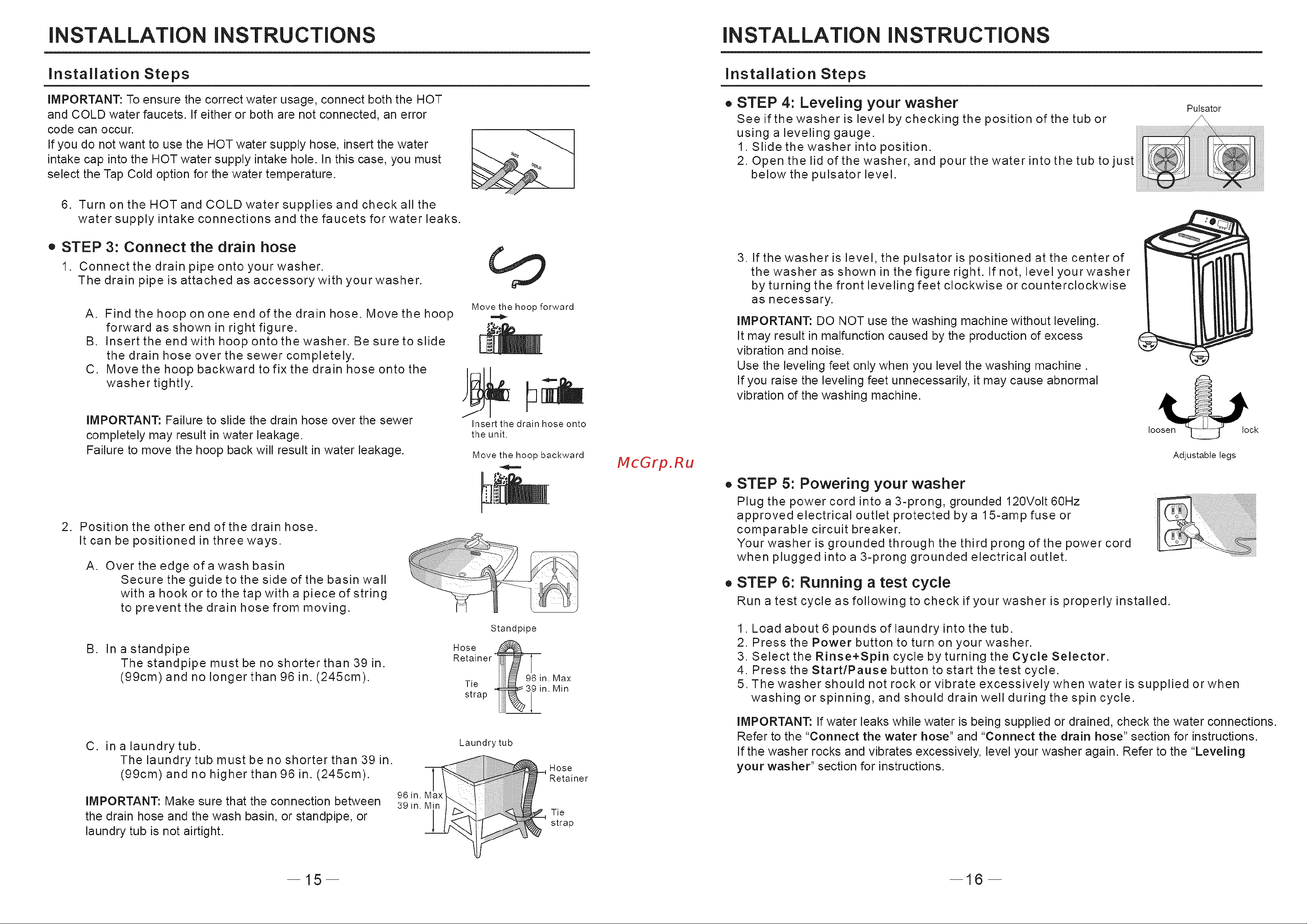

INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS Installation Steps Installation Steps IMPORTANT To ensure the correct water usage connect both the HOT and COLD water faucets If either or both are not connected an error code can occur If you do not want to use the HOT water supply hose insert the water intake cap into the HOT water supply intake hole In this case you must select the Tap Cold option for the water temperature STEP 4 Leveling your washer Pulsator See if the washer is level by checking the position of the tub or using a leveling gauge 1 Slide the washer into position 2 Open the lid of the washer and pour the water into the tub to just below the pulsator level 6 Turn on the HOT and COLD water supplies and check all the water supply intake connections and the faucets for water leaks STEP 3 Connect the drain hose 1 Connect the drain pipe onto your washer The drain pipe is attached as accessory with yourwasher A Find the hoop on one end of the drain hose Move the hoop forward as shown in right figure B Insert the end with hoop onto the washer Be sure to slide the drain hose over the sewer completely C Move the hoop backward to fix the drain hose onto the washer tightly IMPORTANT Failure to slide the drain hose over the sewer completely may result in water leakage Failure to move the hoop back will result in water leakage Move the hoop forward 3 If the washer is level the pulsator is positioned at the center of the washer as shown in the figure right If not level yourwasher by turning the front leveling feet clockwise or counterclockwise as necessary IMPORTANT DO NOT use the washing machine without leveling It may result in malfunction caused by the production of excess vibration and noise Use the leveling feet only when you level the washing machine If you raise the leveling feet unnecessarily it may cause abnormal vibration of the washing machine Insert the drain hose onto the unit Move the hoop backward Adjustable legs STEP 5 Powering yourwasher Plug the power cord into a 3 prong grounded 120Volt 60Hz approved electrical outlet protected by a 1 5 amp fuse or comparable circuit breaker Yourwasher is grounded through the third prong of the powercord when plugged into a 3 prong grounded electrical outlet 2 Position the other end of the drain hose It can be positioned in three ways A Over the edge of a wash basin Secure the guide to the side of the basin wall with a hook or to the tap with a piece of string to prevent the drain hose from moving STEP 6 Running a test cycle Run a test cycle as following to check if your washer is properly installed Standpipe B In a standpipe The standpipe must be no shorter than 39 in 99cm and no longer than 96 in 245cm C in a laundry tub The laundry tub must be no shorter than 39 in 99cm and no higher than 96 in 245cm Hose Retainer Tie strap Laundry tub 1 Load about 6 pounds of laundry into the tub 2 Press the Power button to turn on your washer 3 Select the Rinse Spin cycle by turning the Cycle Selector 4 Press the Start Pause button to start the test cycle 5 The washer should not rock or vibrate excessively when water is supplied or when washing or spinning and should drain well during the spin cycle IMPORTANT If water leaks while water is being supplied or drained check the water connections Refer to the Connect the water hose and Connect the drain hose section for instructions If the washer rocks and vibrates excessively level your washer again Refer to the Leveling your washer section for instructions IMPORTANT Make sure that the connection between the drain hose and the wash basin or standpipe or laundry tub is not airtight 15 16
