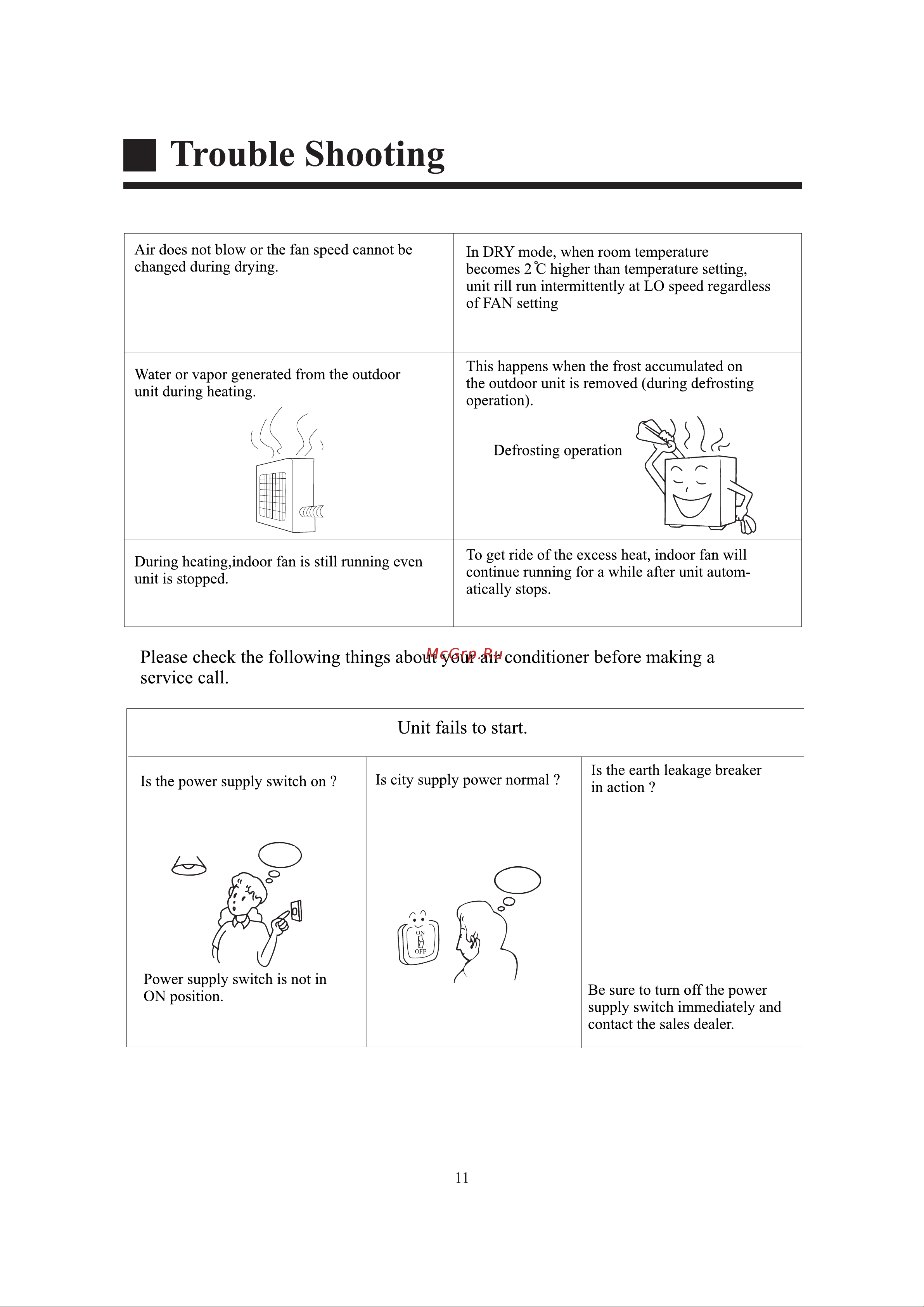

Trouble Shooting Air does not blow or the fan speed cannot be changed during drying In DRY mode when room temperature becomes 2 C higher than temperature setting unit rill run intermittently at LO speed regardless of FAN setting Water or vapor generated from the outdoor unit during heating This happens when the frost accumulated on the outdoor unit is removed during defrosting operation During heating indoor fan is still running even unit is stopped To get ride of the excess heat indoor fan will continue running for a while after unit autom atically stops Please check the following things about your air conditioner before making a service call Unit fails to start Is the power supply switch on Is city supply power normal Power supply switch is not in ON position Is the earth leakage breaker in action Be sure to turn off the power supply switch immediately and contact the sales dealer 11
