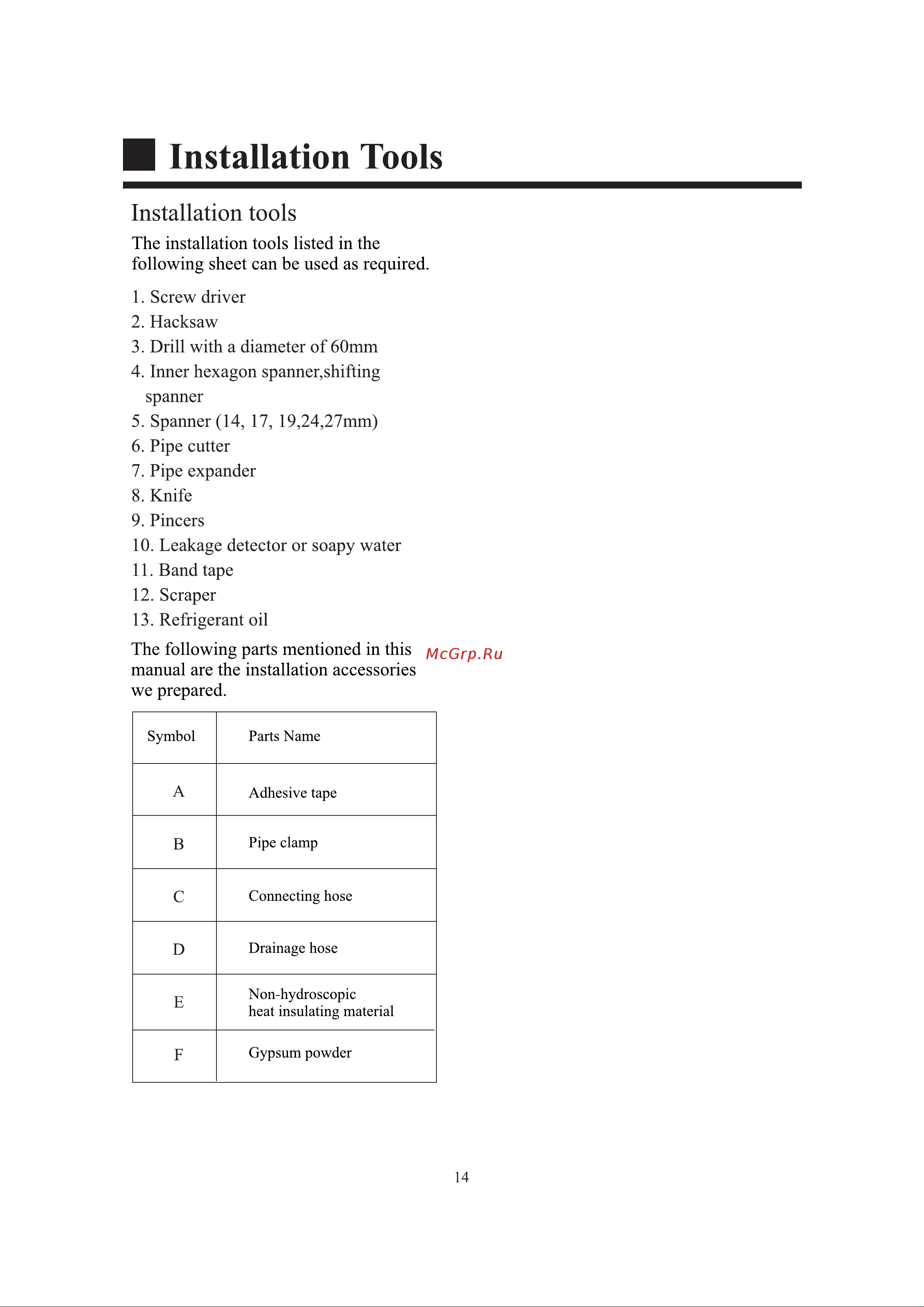

I Installation Tools Installation tools The installation tools listed in the following sheet can be used as required 1 Screw driver 2 Hacksaw 3 Drill with a diameter of 60mm 4 Inner hexagon spanner shifting spanner 5 Spanner 14 17 19 24 27mm 6 Pipe cutter 7 Pipe expander 8 Knife 9 Pincers 10 Leakage detector or soapy water 11 Band tape 12 Scraper 13 Refrigerant oil The following parts mentioned in this manual are the installation accessories we prepared Symbol Parts Name A Adhesive tape B Pipe clamp c Connecting hose D Drainage hose E Non hydroscopic heat insulating material F Gypsum powder 14
