CONNECTIONS TO YOUR AMPLIFIER
Amplier
NS-F901 (L)
This speaker system is capable of standard connections and bi-wired connections. Before making
connections, make sure that the amplier is switched off.
■ CONNECTIONS
Youneedacommerciallyavailablespeakercable.
y
Thesizeand/ormaterialofaspeakercableaffectsonthe
soundquality.Therefore,werecommendyoutopurchase
ahigh-qualityspeakercabletoexerttheperformanceof
thisunit.
Notes
• Connect the (+) terminals on the amplier and the
speakers using one side of the cable. Connect the
(–) terminals on both components using the other
side of the cable.
• Connect one speaker to the left (L) terminals of
your amplier, and another speaker to the right (R)
terminals, making sure not to reverse the polarity
(+, –). If one speaker is connected with reversed
polarity, the sound will be unnatural and lack bass.
• When using an amplier with a rated output
power higher than the nominal input power of the
speaker, care should be taken never to exceed the
speaker’s maximum input.
• The speaker may be damaged if certain sounds
are continuously output at high volume level.
For example, if sine waves from a test disc, bass
sounds from electronic instruments, etc., are
continuously output, or when the stylus of a
turntable touches the surface of a disc, reduce the
volume level to prevent the speaker from being
damaged.
• Please refer to the owner’s manual that came with
your amplier or receiver.

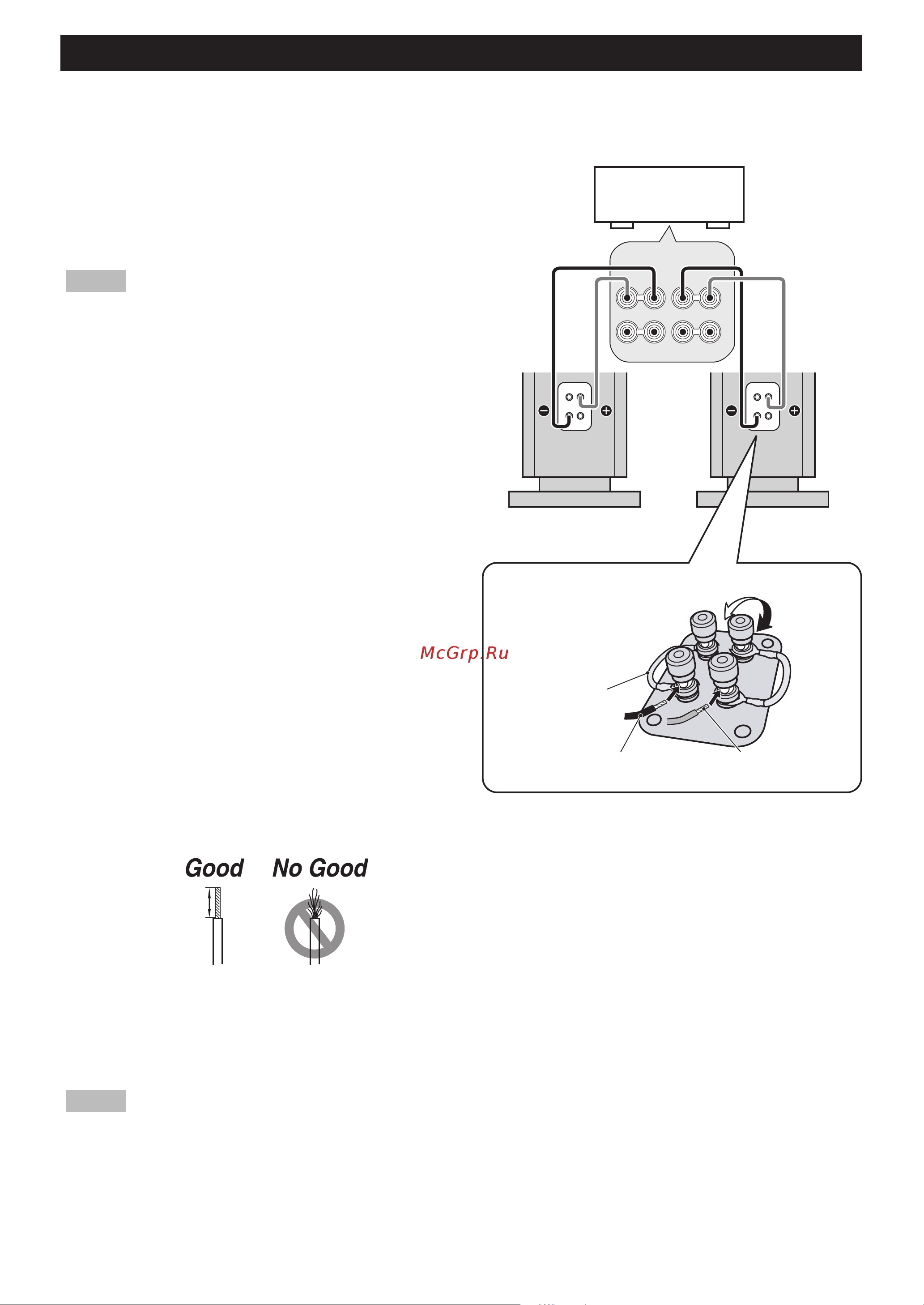

How to connect the cables:
1 Loosentheknob.
2 Remove15mm(5/8”)ofinsulationfromeachendof
thecables,andtwisttheexposedconductorstogether
neatlyandtightly,asshownbelow.
15 mm
(5/8")
3 Insertthebarewireintothehole.
4 Tightentheknobandsecurethecables.
5 Testthermnessoftheconnectionbypullinglightlyon
thecablesattheterminal.
Notes
• Do not let the bare speaker wires touch each other
as this could damage the speaker or the amplier,
or both of them.
• Do not insert the insulation coating into the hole.
The sound may not be produced.
<Standard connections>
Jumper cable
Leave the jumper
cables in place
when connecting.
NS-F901 (R)
Speakers
terminals of
the amplier
Loosen
Tighten
Insulation coating Bare wire
