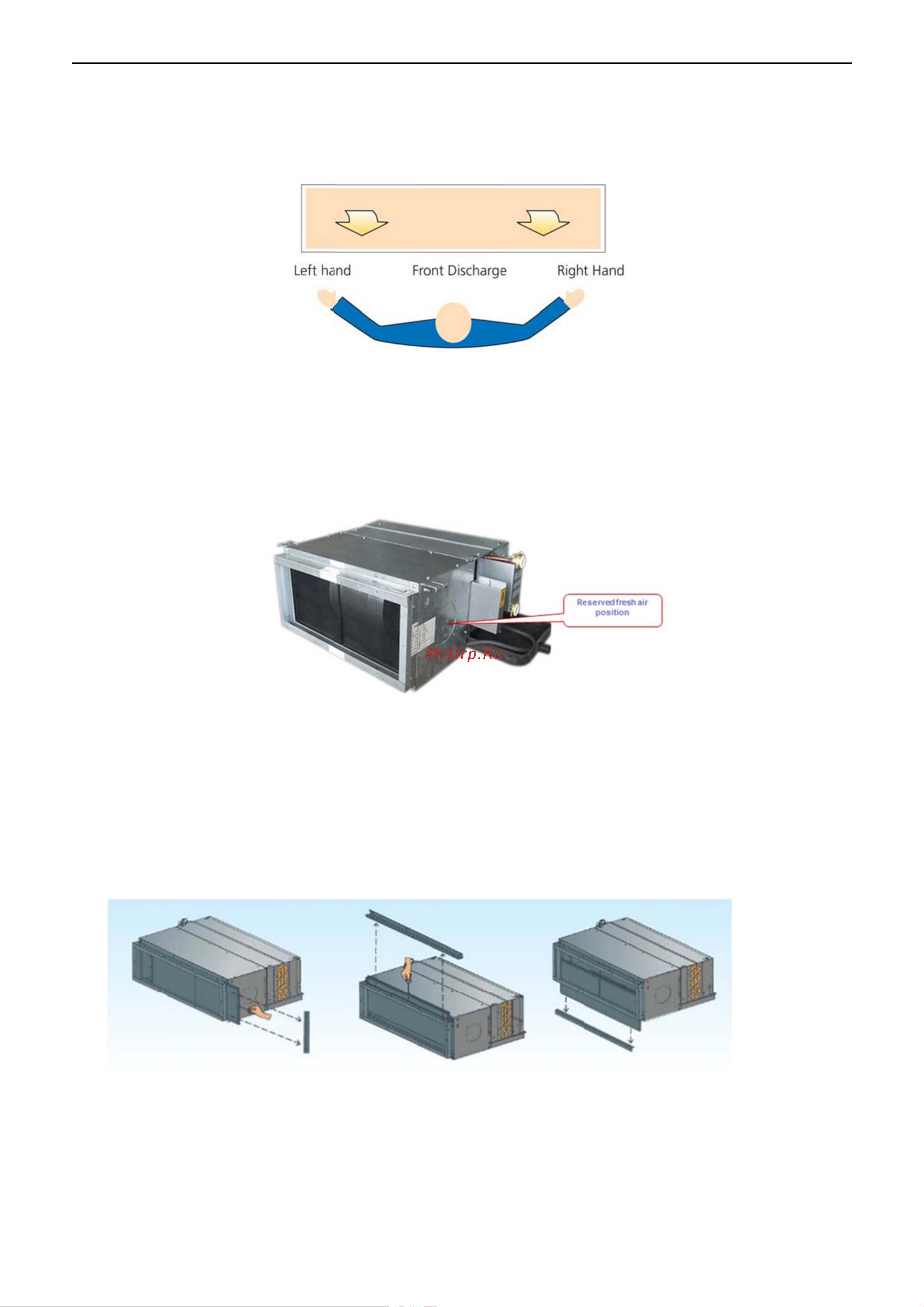

KFKD middle static pressure duct
4
2. Features
1. Wide external static pressure supplying.
Two external static pressure (30Pa/50Pa) settings for added flexibility.
2. Left or right hand piping connections, field convertible.
3. Quiet operation
A patent design is able to prevent abnormal noise caused by blowing fins.
4. Superior air distribution
As the conditioned air can be distributed to every corner of the area by air duct, this will ensure more
pleasant living environment, thus provide extra comfort to the occupants.
5. Fresh air supply makes life healthier and more comfortable
6. Air return plenum
Units with air return plenum is standard and units without air return plenum can be customized.
7. Electric heater
Safe factory-installed electric heater is an option for unit.
8. Washable filter
Iron frame filter is standard, and aluminum frame filter can be customized.
Air outlet flange and multi-direction pull-out filter can be customized.
9. Optional wired controller
Optional wired controller offers simple and flexibility in controlling the unit.
