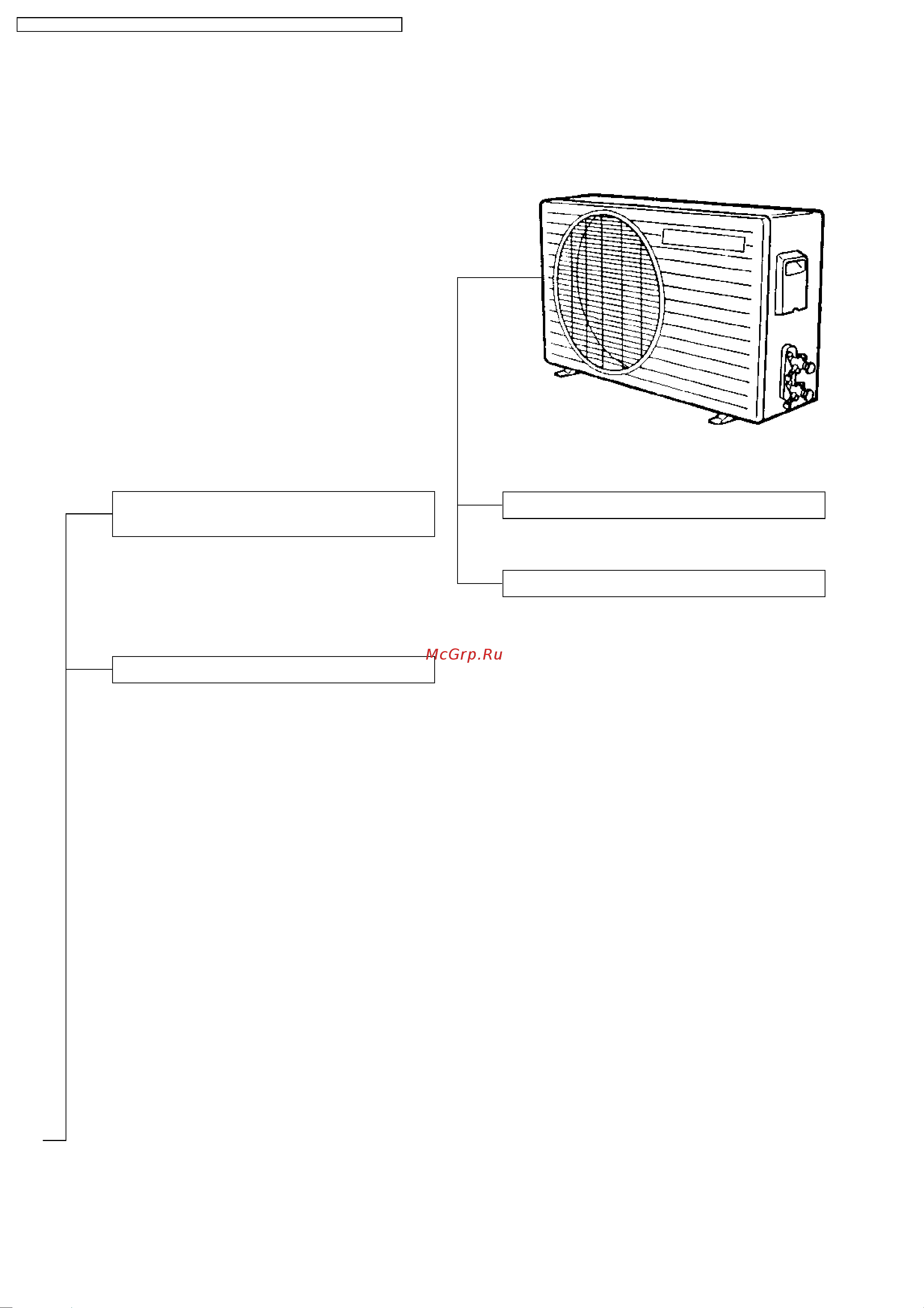

Outdoor Unit
Overload Protector
Anti-freezing Control For The
Evaporator
●
Compressor will be stopped when the
Evaporator’s piping temperature is 0°C or
less for three minutes
●
Restarting at 12°C or higher (Time Delay
Safety Control has a priority)
Airflow Direction Control
Automatic Airflow Direction Control
●
The louver automatically swings up and down
(Cooling, Soft Dry) ....... horizontal and 30°
downward
●
The louver is set at 60° downward during
Heating Operation
●
The louver is set at horizontal when the fan is
stopped
Airflow Direction Manual Control
●
Can be set within a range at horizontal to 60°
downward
30 sec. Forced Operation Control
●
Once the compressor is activated it does
not stop for 30 secs
●
Stops immediately with remote control
stop
4
CS-A12ATP5 CU-A12ATP5 / CS-A18ATP5 CU-A18ATPT5 / CS-A24ATP5 CU-A24ATPT5
