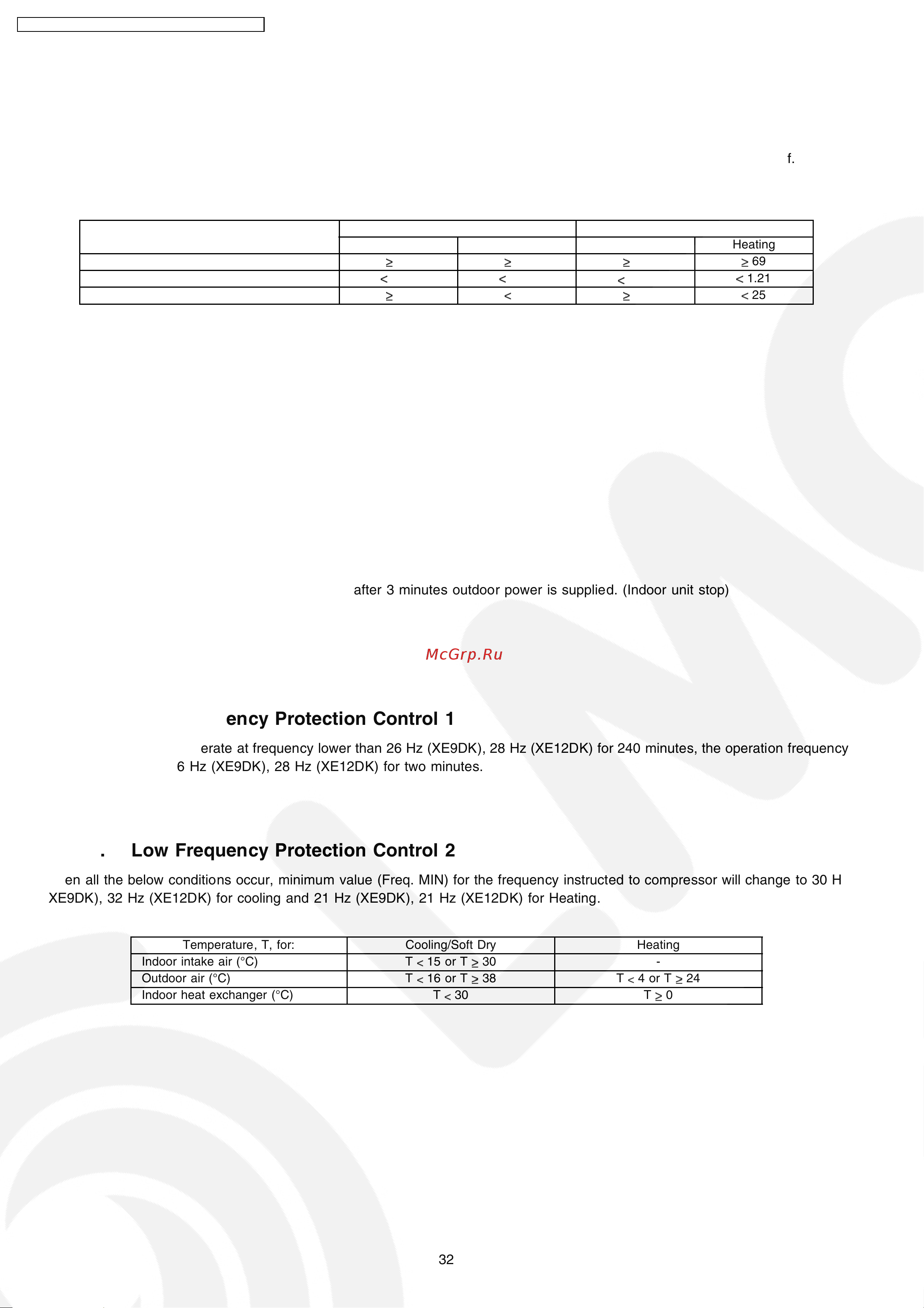

8.2.1.6. Low Pressure Prevention Control (Gas Leakage Detection)
1. When the conditions listed in below table occur, the compressor stops and restarts after three minutes.
2. If this phenomenon is continuously occurring for twice within 20 minutes, all indoor and outdoor relays will be cut off.
3. This control is not applicable for deice operation.
Conditions XE9DK XE12DK
Cooling/Soft Dry Heating Cooling/Soft Dry Heating
1. Compressor frequency (Hz) 47 56 67 69
2. Outdoor total running current (A) 1.21 1.21 1.21 1.21
3. Indoor heat exchanger temperature (°C) 20 25 20 25
Note: Conditions 1 and 2 needed to be happened continuously for 5 minutes.
8.2.1.7. CT Disconnection Detection
1. Control Starting Condition
a. Total Current is below 0.63 Amp.
b. Operating Frequency is 20 Hz and above.
c. Continuously for 20s.
2. Control Contents
a. Abnormal signal transmitted to indoor unit after 3 minutes outdoor power is supplied. (Indoor unit stop)
3. Control Cancellation Condition
Starting condition, (1) is not fulfilled.
8.2.1.8. Low Frequency Protection Control 1
When the compressor operate at frequency lower than 26 Hz (XE9DK), 28 Hz (XE12DK) for 240 minutes, the operation frequency
will be increased to 26 Hz (XE9DK), 28 Hz (XE12DK) for two minutes.
8.2.1.9. Low Frequency Protection Control 2
When all the below conditions occur, minimum value (Freq. MIN) for the frequency instructed to compressor will change to 30 Hz
(XE9DK), 32 Hz (XE12DK) for cooling and 21 Hz (XE9DK), 21 Hz (XE12DK) for Heating.
Temperature, T, for: Cooling/Soft Dry Heating
Indoor intake air (°C) T 15 or T 30 -
Outdoor air (°C) T 16 or T 38 T 4orT 24
Indoor heat exchanger (°C) T 30 T 0
32
CS-XE9DKE CU-XE9DKE / CS-XE12DKE CU-XE12DKE
