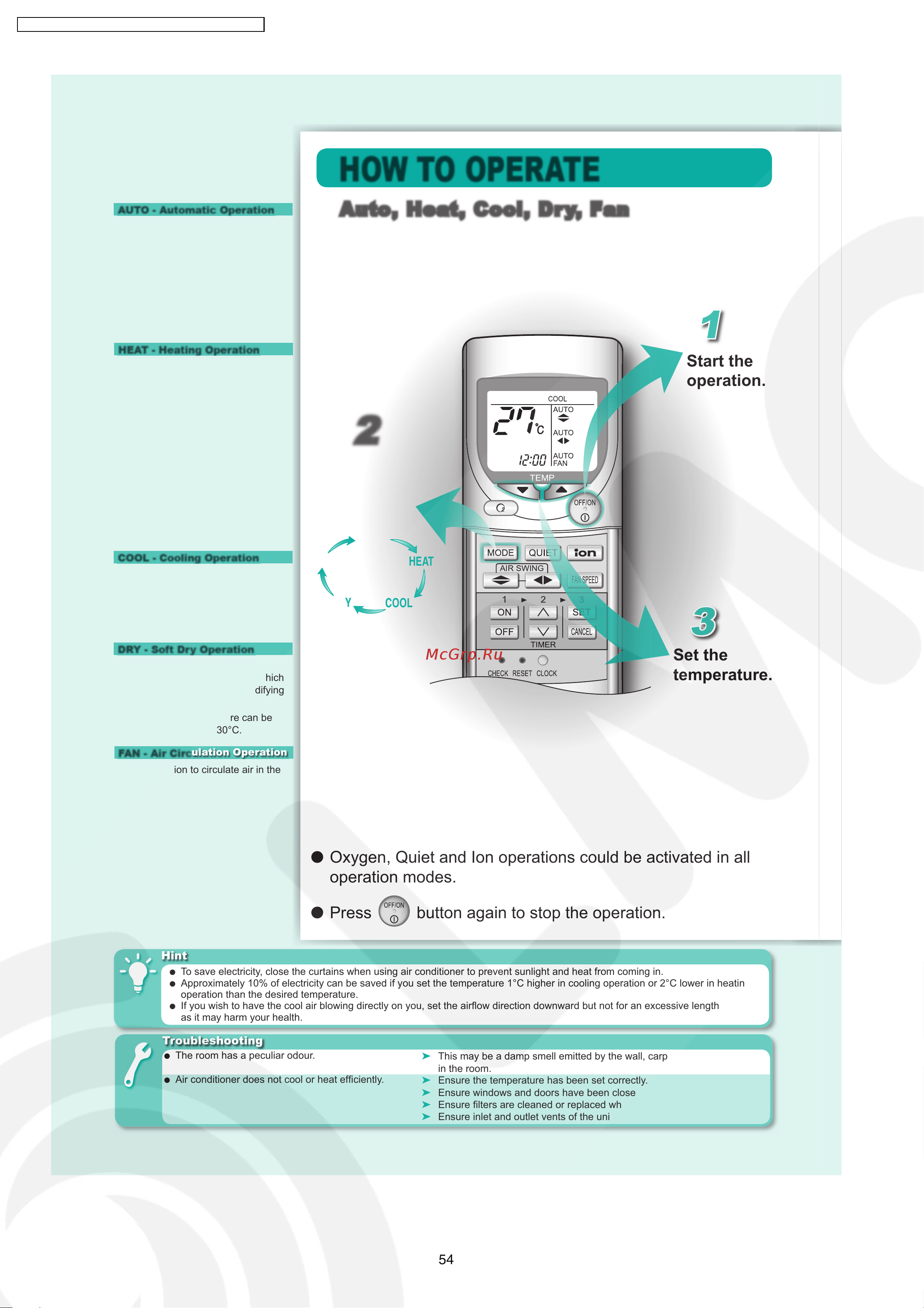

■ Operation Details
Auto, Heat, Cool,
D
ry, Fan
Auto, Heat, Cool, Dry, Fan
2
2
Select the
desired
operation.
3
3
Set the
temperature.
Start the
operation.
1
1
HOW TO OPERATE
● Oxygen, Quiet and Ion operations could be activated in all
operation modes.
● Press
button again to stop the operation.
● To save electricity, close the curtains when using air conditioner to prevent sunlight and heat from coming in.
● Approximately 10% of electricity can be saved if you set the temperature 1°C higher in cooling operation or 2°C lower in heating
operation than the desired temperature.
● If you wish to have the cool air blowing directly on you, set the airfl ow direction downward but not for an excessive length of time,
as it may harm your health.
Hint
Troubleshooting
● The room has a peculiar odour.
➤ This may be a damp smell emitted by the wall, carpet, furniture or clothing
in the room.
● Air conditioner does not cool or heat effi ciently.
➤ Ensure the temperature has been set correctly.
➤ Ensure windows and doors have been closed properly.
➤ Ensure fi lters are cleaned or replaced when necessary.
➤ Ensure inlet and outlet vents of the units have not been obstructed.
• Enables you to enjoy the cooling
effect at your preferred setting
temperature.
• The range of temperature can be
selected from 16°C~30°C.
COOL - Cooling Operation
• Enables you to set the desired
temperature at low fan speed which
provides you with the dehumidifying
surroundings.
• The range of temperature can be
selected from 16°C~30°C.
DRY - Soft Dry Operation
AUTO - Automatic Operation
• The unit will automatically select
the operation mode according
to the setting, outdoor and room
temperature. During operation mode
selection, power indicator blinks.
For every 30 minutes, the operation
mode is reselected.
• The range of temperature can be
selected from 16°C~30°C.
• Enables you to enjoy the warming
effect at your preferred setting
temperature.
• For cold air prevention, air might
not blow out immediately and
power indicator blinks when
operation starts.
• Also operates in defrost mode
(maximum 10 minutes) where by
the power indicator blinks. The
melted frost is drained at outdoor
unit and indoor fan is stopped.
• The range of temperature can be
selected from 16°C~30°C.
HEAT - Heating Operation
• Fan operation to circulate air in the
room.
FAN - Air Circulation Operation
AUTO
HEAT
FAN
DRY
COOL
54
CS-XE9DKE CU-XE9DKE / CS-XE12DKE CU-XE12DKE
