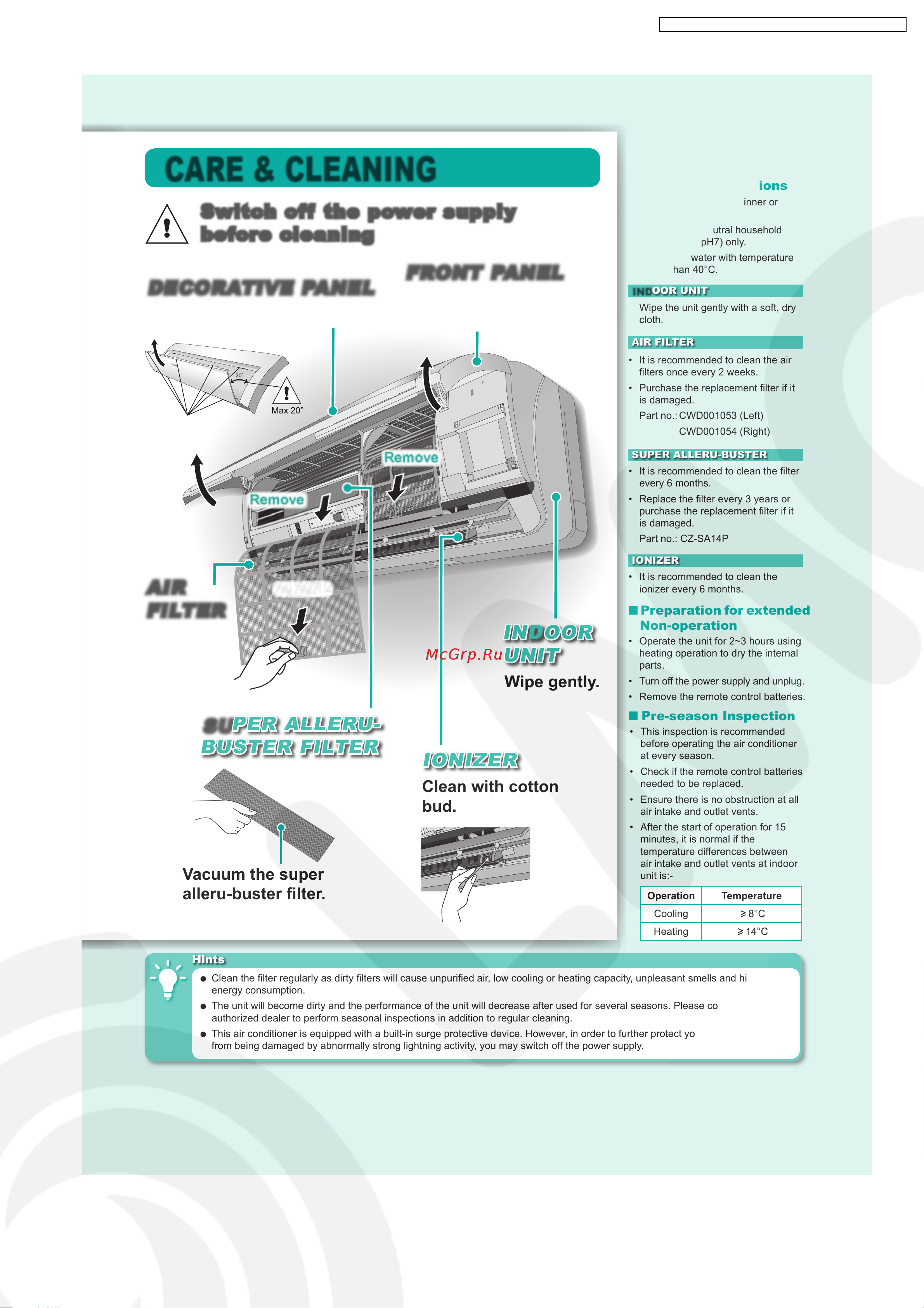

CARE & CLEANING
• Wipe the unit gently with a soft, dry
cloth.
• It is recommended to clean the air
fi lters once every 2 weeks.
• Purchase the replacement fi lter if it
is damaged.
Part no.: CWD001053 (Left)
CWD001054 (Right)
INDOOR UNIT
AIR FILTER
• It is recommended to clean the fi lter
every 6 months.
• Replace the fi lter every 3 years or
purchase the replacement fi lter if it
is damaged.
Part no.: CZ-SA14P
SUPER ALLERU-BUSTER
• This inspection is recommended
before operating the air conditioner
at every season.
• Check if the remote control batteries
needed to be replaced.
• Ensure there is no obstruction at all
air intake and outlet vents.
• After the start of operation for 15
minutes, it is normal if the
temperature differences between
air intake and outlet vents at indoor
unit is:-
Operation Temperature
Cooling
8°C
Heating 14°C
• Operate the unit for 2~3 hours using
heating operation to dry the internal
parts.
• Turn off the power supply and unplug.
• Remove the remote control batteries.
Switch off the power supply
Switch off the power supply
before cleaning
before cleaning
● Clean the fi lter regularly as dirty fi lters will cause unpurifi ed air, low cooling or heating capacity, unpleasant smells and higher
energy consumption.
● The unit will become dirty and the performance of the unit will decrease after used for several seasons. Please consult an
authorized dealer to perform seasonal inspections in addition to regular cleaning.
● This air conditioner is equipped with a built-in surge protective device. However, in order to further protect your air conditioner
from being damaged by abnormally strong lightning activity, you may switch off the power supply.
Hints
■ Washing Instructions
• Do not use benzene, thinner or
scouring powder.
• Use soaps or neutral household
detergent (
≃
pH7) only.
• Do not use water with temperature
higher than 40°C.
■ Pre-season Inspection
■ Preparation for extended
Non-operation
• It is recommended to clean the
ionizer every 6 months.
IONIZER
SUPER ALLERU-
SUPER ALLERU-
BUSTER
BUSTER
FILTER
FILTER
Vacuum the super
alleru-buster fi lter.
Clean with cotton
bud.
IONIZER
IONIZER
FRONT PANEL
FRONT PANEL
Raise and pull to remove.
Wash and dry.
Remove
IN
D
OOR
INDOOR
UNIT
UNIT
Wipe gently.
Remove
Vacuum,
wash and
dry.
AIR
AIR
FILTER
FILTER
Remove, wash and dry.
D
ECORATIVE
DECORATIVE
PANEL
PANEL
Release carefully.
Remove
57
CS-XE9DKE CU-XE9DKE / CS-XE12DKE CU-XE12DKE
