8.2. Cooling Operation
• Cooling operation can be set using remote control.
• This operation is applied to cool down the room temperature reaches the setting temperature set on the remote control.
• The remote control setting temperature, which takes the reading of intake air temperature sensor, can be adjusted from 16°C
to 30°C.
• During cooling operation, the compressor will stop running and restart as shown in below figure.

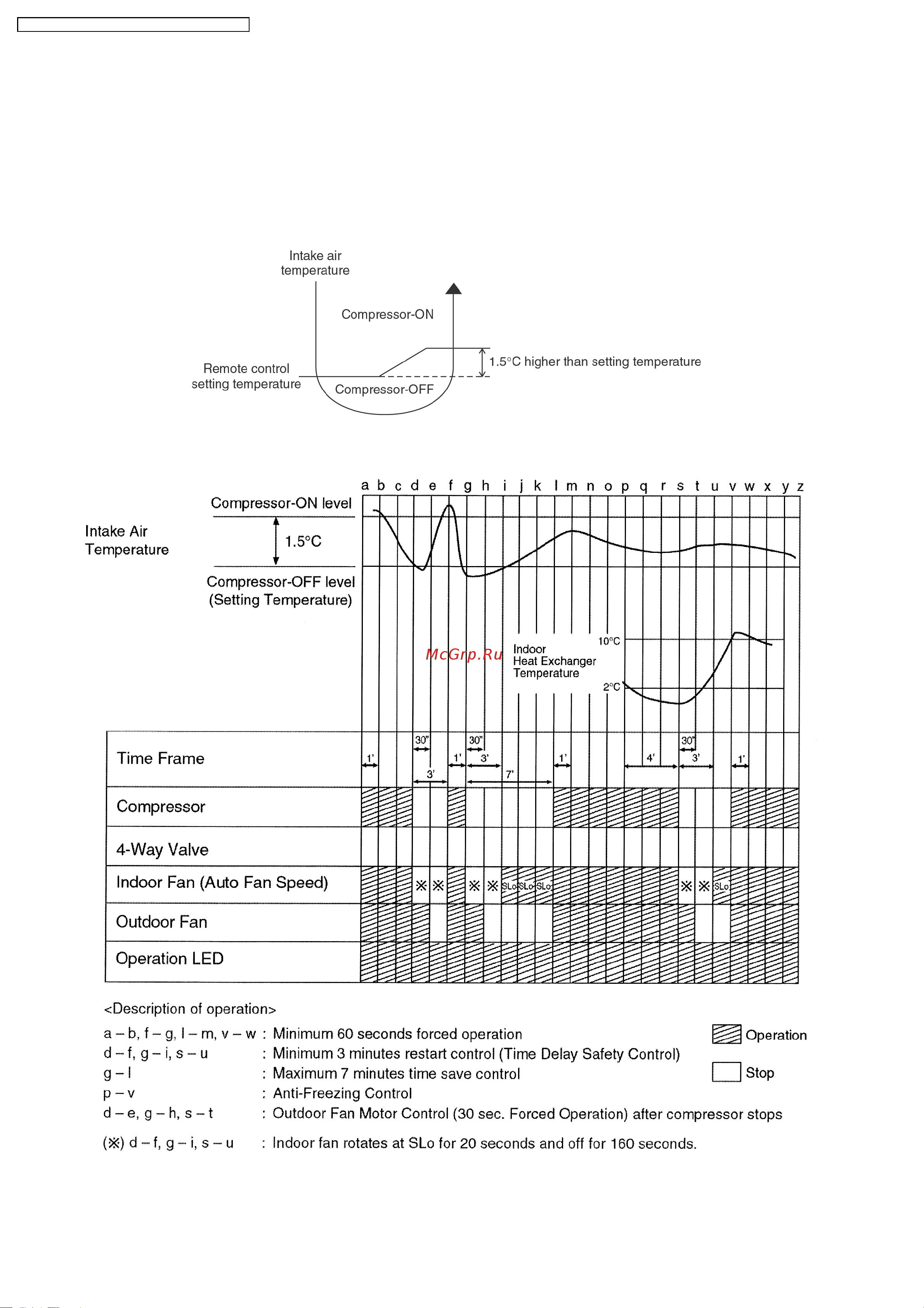

8.2.1. Cooling Operation Time Diagram
16
CS-A18DKD CU-A18DKD / CS-A24DKD CU-A24DKD
