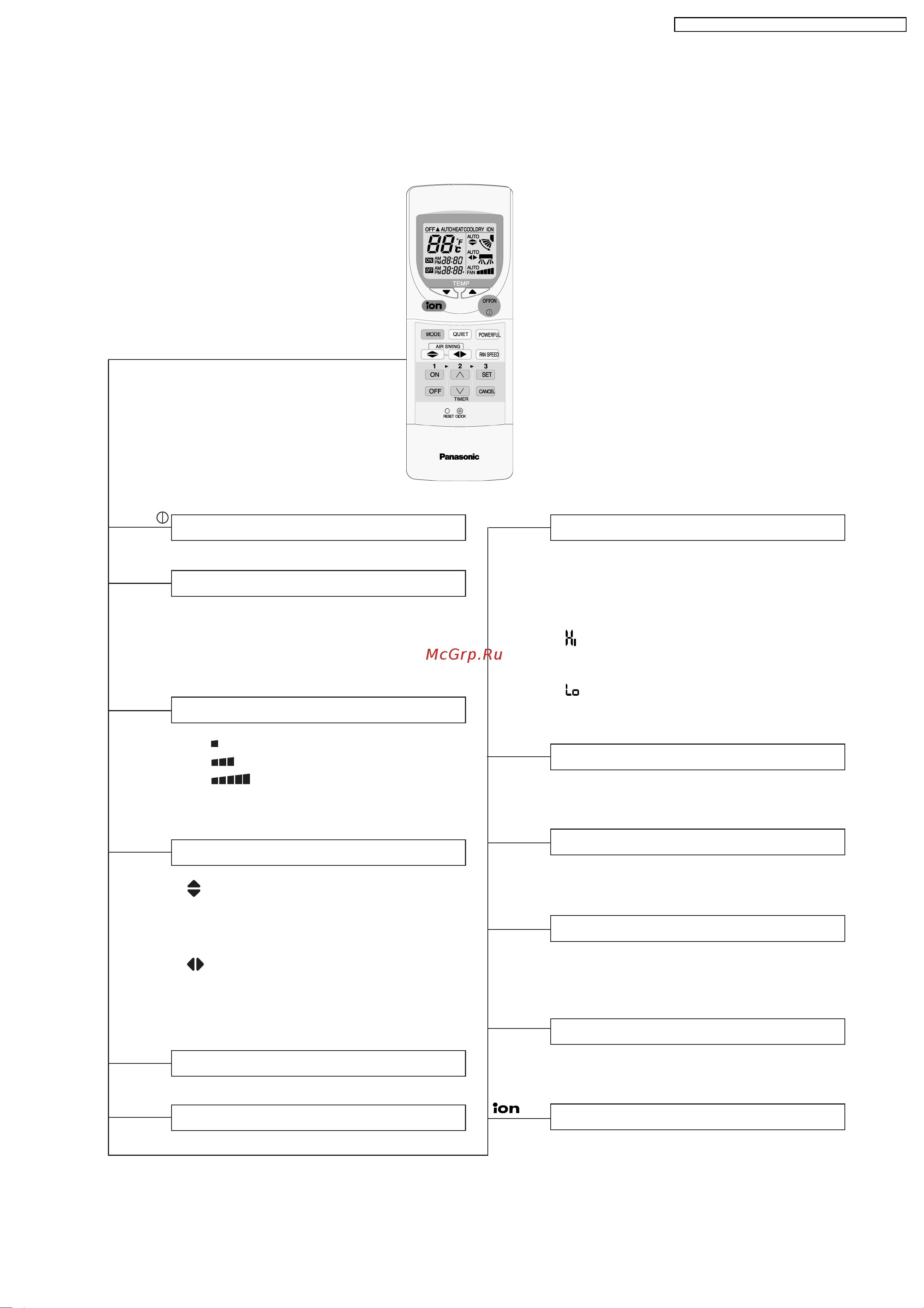

2 Functions
2.1. Remote Control
Operation Start/Stop
OFF / ON
Room Temperature Setting
TEMP.
Operation Mode Selection
•
AUTO
Automatic Operation
•
COOL
Cooling Operation
•
HEAT
Heating Operation Mode
•
DRY
Soft Dry Operation
MODE
Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Ionizer Operation Start/Stop
Indoor Fan Speed Selection
FAN SPEED
• FAN Low Fan Speed
•
FAN Medium Fan Speed
•
FAN High Fan Speed
•
AUTO Automatic Fan Speed
FAN
Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER
Timer Operation Selection
SET
CANCEL
Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
AIR SWING
• Vertical Automatic Airflow
Direction Control and Manual
Airflow Direction Control
(5 stages of adjustment).
•
Horizontal Automatic Airflow
Direction Control and Manual
Airflow Direction Control
(5 stages of adjustment).
Powerful Operation Start/Stop
POWERFUL
Quiet Operation Start/Stop
QUIET
Cooling, Soft Dry Operation.
• Increase or decrease set temperature
(16°C to 30°C)
Automatic Operation
•
Operation with 2°C higher than
standard temperature.
• Operation with standard temperature.
•
Operation with 2°C lower than
standard temperature.
<
<
3
CS-A18DKD CU-A18DKD / CS-A24DKD CU-A24DKD
