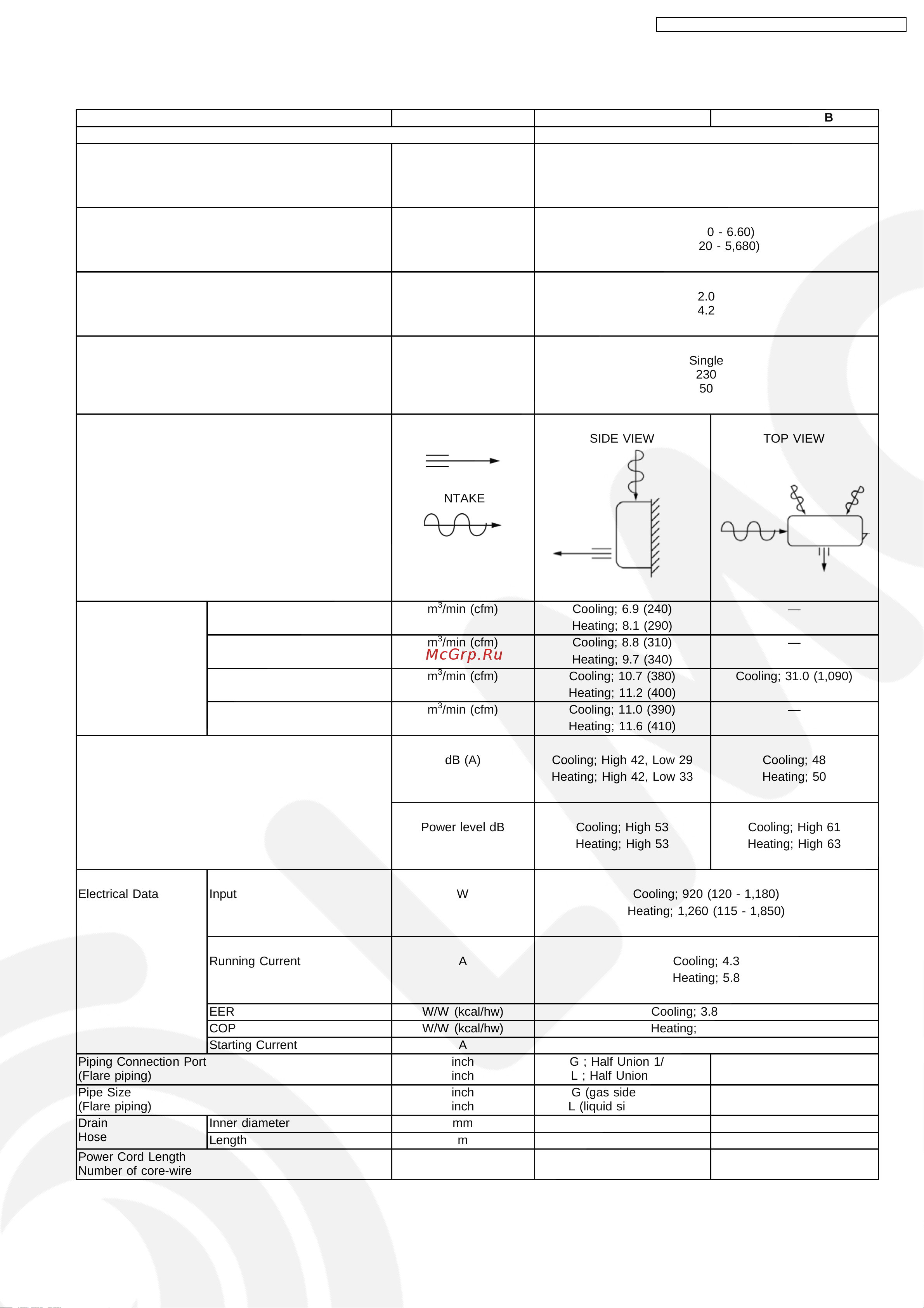

2.2. CS-E12EKEB CU-E12EKEB
Unit CS-E12EKEB CU-E12EKEB
Performance Test Condition EUROVENT
Cooling Capacity kW
kcal/h
3.50 (0.60 - 4.00)
3,010 (520 - 3,440)
Heating Capacity kW
kcal/h
4.80 (0.60 - 6.60)
4,130 (520 - 5,680)
Moisture Removal l/h
Pint/h
2.0
4.2
Power Source (Phase, Voltage, Cycle) ø
V
Hz
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume Lo m
3
/min (cfm) Cooling; 6.9 (240) —
Heating; 8.1 (290)
Me m
3
/min (cfm) Cooling; 8.8 (310) —
Heating; 9.7 (340)
Hi m
3
/min (cfm) Cooling; 10.7 (380) Cooling; 31.0 (1,090)
Heating; 11.2 (400)
SHi m
3
/min (cfm) Cooling; 11.0 (390) —
Heating; 11.6 (410)
dB (A) Cooling; High 42, Low 29 Cooling; 48
Heating; High 42, Low 33 Heating; 50
Noise Level
Power level dB Cooling; High 53 Cooling; High 61
Heating; High 53 Heating; High 63
Electrical Data Input W Cooling; 920 (120 - 1,180)
Heating; 1,260 (115 - 1,850)
Running Current A Cooling; 4.3
Heating; 5.8
EER W/W (kcal/hw) Cooling; 3.80 (3.27)
COP W/W (kcal/hw) Heating; 3.81 (3.28)
Starting Current A 5.8
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 1/2”
L ; Half Union 1/4”
G ; 3-way valve 1/2”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
G (gas side) ; 1/2”
L (liquid side) ; 1/4”
Drain
Hose
Inner diameter mm 16 —
Length m 0.65 —
Power Cord Length
Number of core-wire
1.8
(1.5mm
2
)
—
—
7
CS-E9EKEB CU-E9EKEB / CS-E12EKEB CU-E12EKEB
