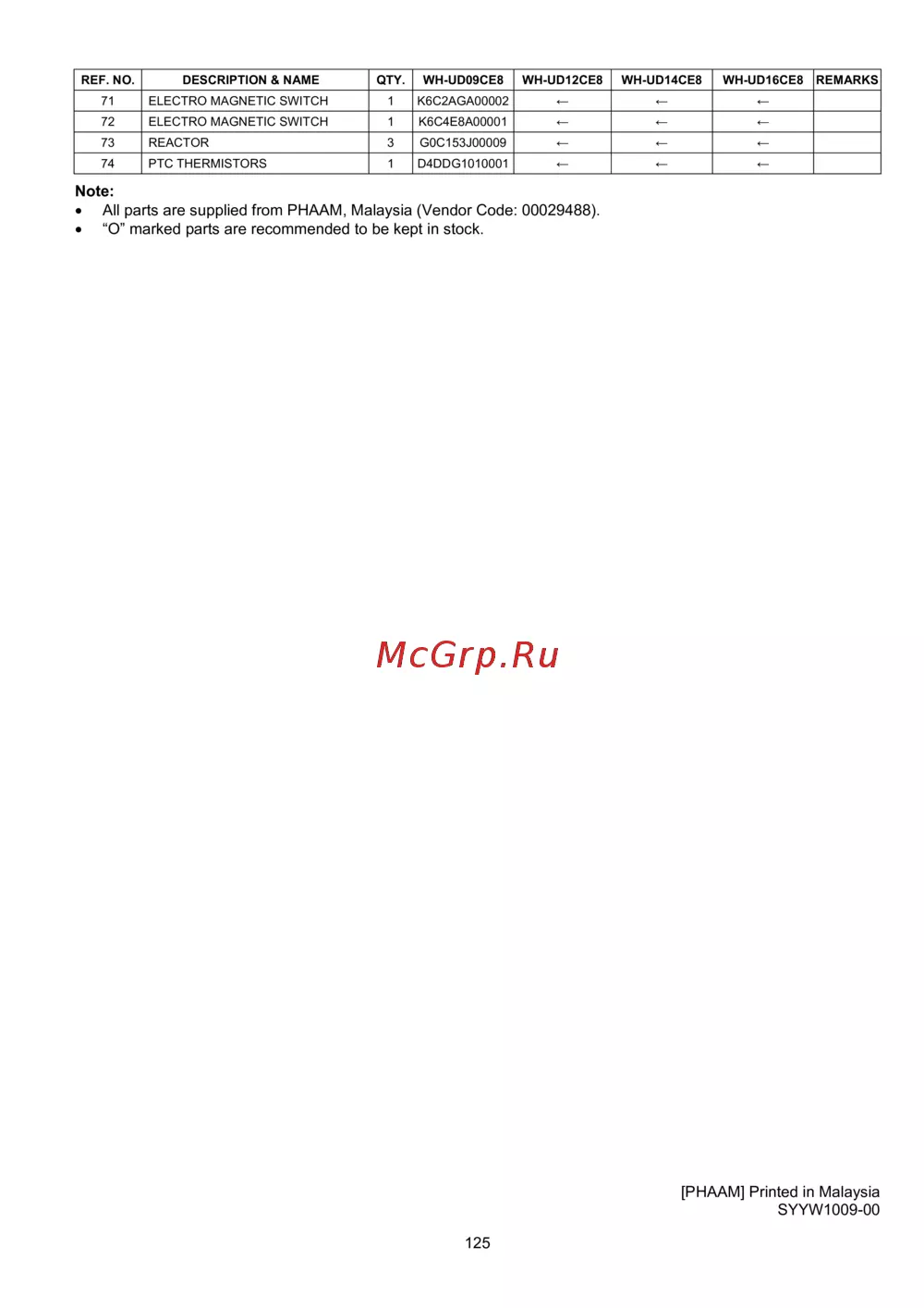

125
REF. NO. DESCRIPTION & NAME QTY. WH-UD09CE8 WH-UD12CE8 WH-UD14CE8 WH-UD16CE8 REMARKS
71 ELECTRO MAGNETIC SWITCH 1 K6C2AGA00002 ← ← ←
72 ELECTRO MAGNETIC SWITCH 1 K6C4E8A00001 ← ← ←
73 REACTOR 3 G0C153J00009 ← ← ←
74 PTC THERMISTORS 1 D4DDG1010001 ← ← ←
Note:
All parts are supplied from PHAAM, Malaysia (Vendor Code: 00029488).
“O” marked parts are recommended to be kept in stock.
[PHAAM] Printed in Malaysia
SYYW1009-00
