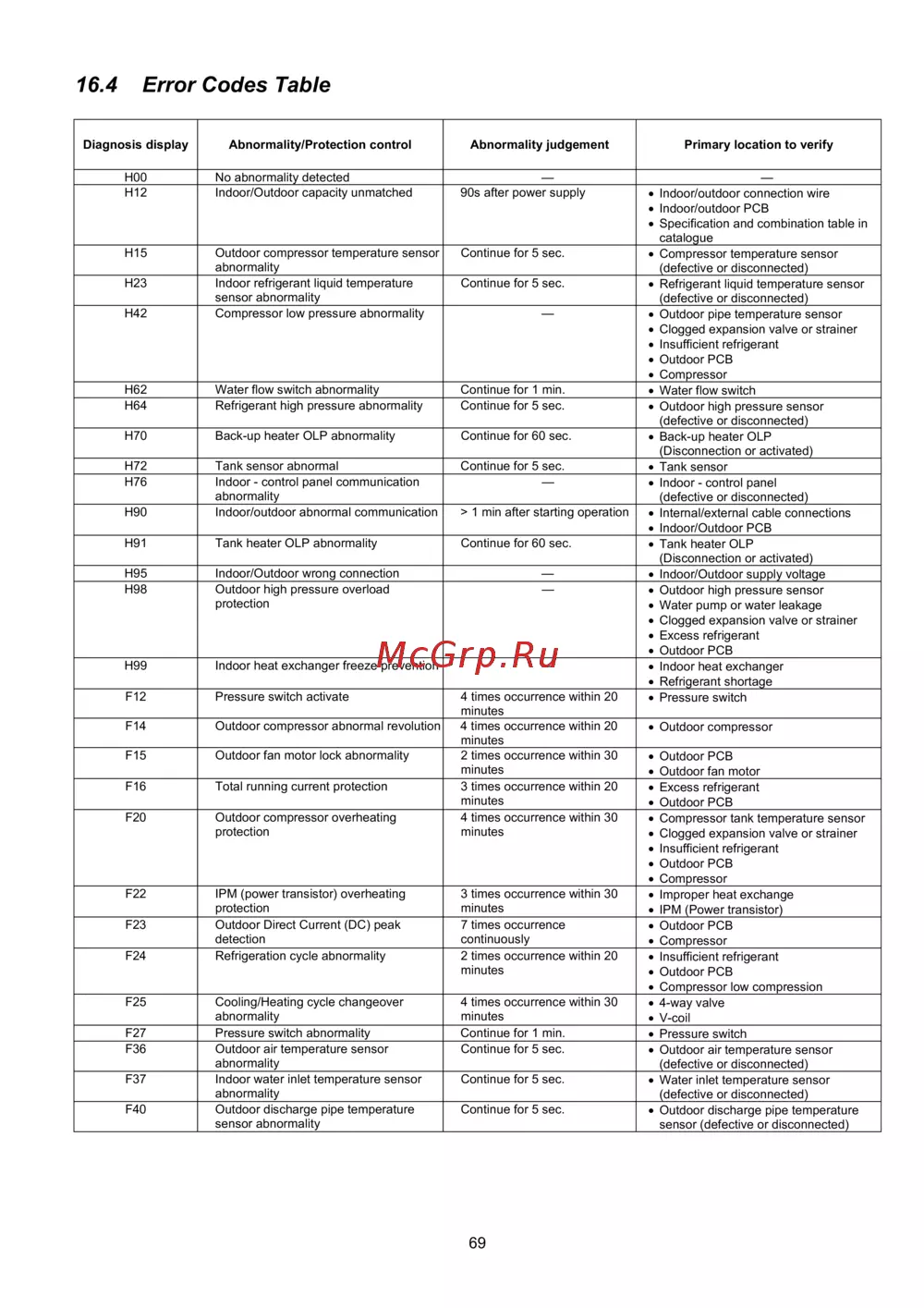

16.4 Error Codes Table
Diagnosis display Abnormality/Protection control Abnormality judgement Primary location to verify
H00 No abnormality detected — —
H12 Indoor/Outdoor capacity unmatched 90s after power supply
Indoor/outdoor connection wire
Indoor/outdoor PCB
Specification and combination table in
catalogue
H15 Outdoor compressor temperature sensor
abnormality
Continue for 5 sec.
Compressor temperature sensor
(defective or disconnected)
H23 Indoor refrigerant liquid temperature
sensor abnormality
Continue for 5 sec.
Refrigerant liquid temperature sensor
(defective or disconnected)
H42 Compressor low pressure abnormality —
Outdoor pipe temperature sensor
Clogged expansion valve or strainer
Insufficient refrigerant
Outdoor PCB
Compressor
H62 Water flow switch abnormality Continue for 1 min.
Water flow switch
H64 Refrigerant high pressure abnormality Continue for 5 sec.
Outdoor high pressure sensor
(defective or disconnected)
H70 Back-up heater OLP abnormality Continue for 60 sec.
Back-up heater OLP
(Disconnection or activated)
H72 Tank sensor abnormal Continue for 5 sec.
Tank sensor
H76 Indoor - control panel communication
abnormality
—
Indoor - control panel
(defective or disconnected)
H90 Indoor/outdoor abnormal communication > 1 min after starting operation
Internal/external cable connections
Indoor/Outdoor PCB
H91 Tank heater OLP abnormality Continue for 60 sec.
Tank heater OLP
(Disconnection or activated)
H95 Indoor/Outdoor wrong connection —
Indoor/Outdoor supply voltage
H98 Outdoor high pressure overload
protection
—
Outdoor high pressure sensor
Water pump or water leakage
Clogged expansion valve or strainer
Excess refrigerant
Outdoor PCB
H99 Indoor heat exchanger freeze prevention —
Indoor heat exchanger
Refrigerant shortage
F12 Pressure switch activate 4 times occurrence within 20
minutes
Pressure switch
F14 Outdoor compressor abnormal revolution 4 times occurrence within 20
minutes
Outdoor compressor
F15 Outdoor fan motor lock abnormality 2 times occurrence within 30
minutes
Outdoor PCB
Outdoor fan motor
F16 Total running current protection 3 times occurrence within 20
minutes
Excess refrigerant
Outdoor PCB
F20 Outdoor compressor overheating
protection
4 times occurrence within 30
minutes
Compressor tank temperature sensor
Clogged expansion valve or strainer
Insufficient refrigerant
Outdoor PCB
Compressor
F22 IPM (power transistor) overheating
protection
3 times occurrence within 30
minutes
Improper heat exchange
IPM (Power transistor)
F23 Outdoor Direct Current (DC) peak
detection
7 times occurrence
continuously
Outdoor PCB
Compressor
F24 Refrigeration cycle abnormality 2 times occurrence within 20
minutes
Insufficient refrigerant
Outdoor PCB
Compressor low compression
F25 Cooling/Heating cycle changeover
abnormality
4 times occurrence within 30
minutes
4-way valve
V-coil
F27 Pressure switch abnormality Continue for 1 min.
Pressure switch
F36 Outdoor air temperature sensor
abnormality
Continue for 5 sec.
Outdoor air temperature sensor
(defective or disconnected)
F37 Indoor water inlet temperature sensor
abnormality
Continue for 5 sec.
Water inlet temperature sensor
(defective or disconnected)
F40 Outdoor discharge pipe temperature
sensor abnormality
Continue for 5 sec.
Outdoor discharge pipe temperature
sensor (defective or disconnected)
