Panasonic CS-A28BKP5 / CU-A28BKP5 [12/77] Operation details
![Panasonic CS-A28BKP5 / CU-A28BKP5 [12/77] Operation details](/views2/1833685/page12/bgc.png)
Cooling in operation according to Remote Control setting.
Time Delay Safety Control (3 minutes)
7 minutes Time Saved Control

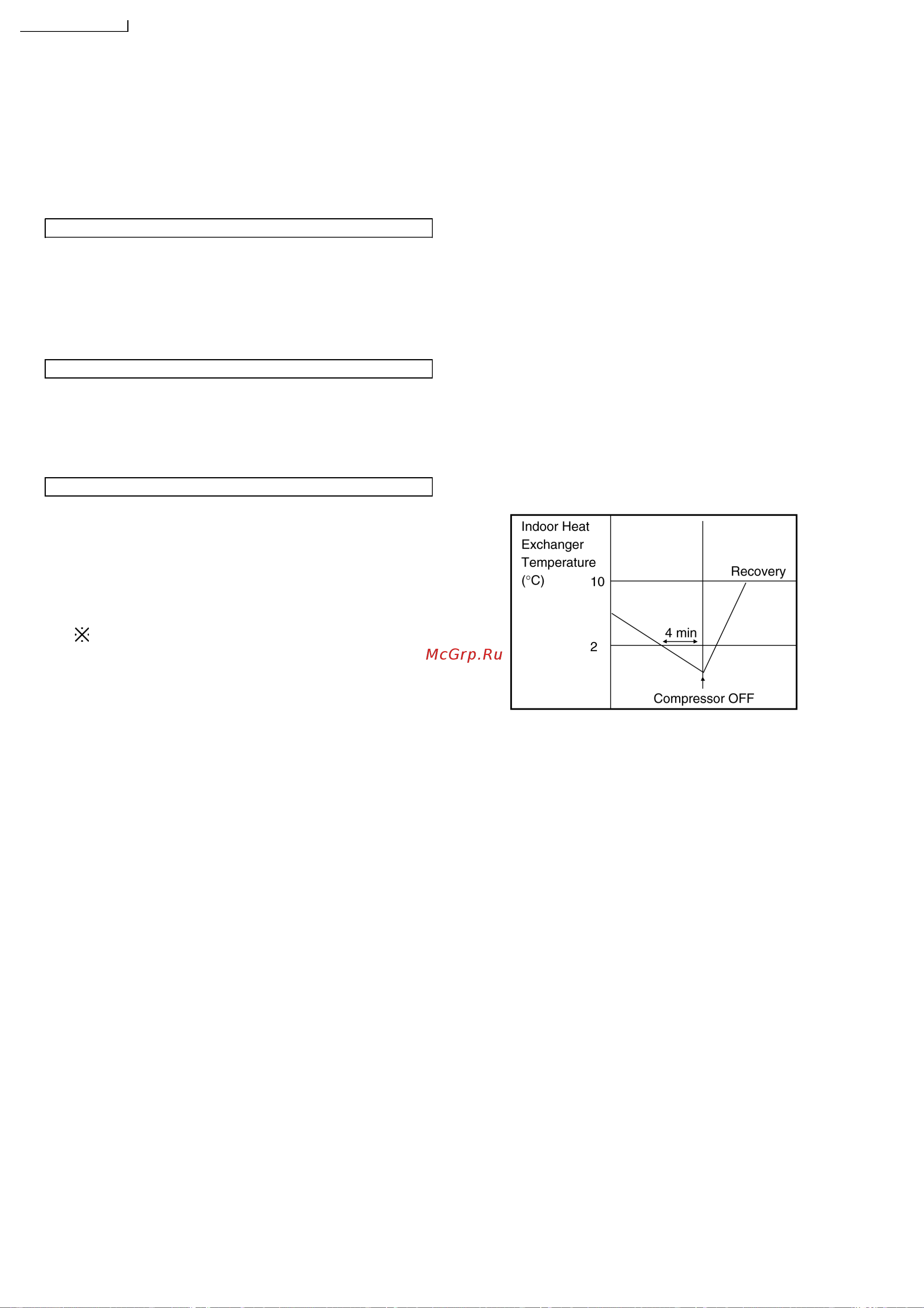

Anti-Freezing Control
•
If the temperature of the indoor heat exchanger falls
continuously below 2°C for 4 minutes, the compressor turns
off to protect the indoor heat exchanger from freezing. The
fan speed setting remains the same.
•
Compressor recommences when the indoor heat
exchanger temperature rises to 10°C (Recovery).
3 minutes waiting of Time Delay Safety Control is
valid for Cooling Operation.
8 Operation Details
8.1. Cooling Mode Operation
•
When the compressor is stopped by Power Switch, Remote Control or there is a power failure, it restarts after 3 minutes when
the Power Switch, Remote Control is turned ON or the power supply is resumed.
•
When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
•
The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is below the compressor
ON temperature.
12
CS-A28BKP5/CU-A28BKP5
