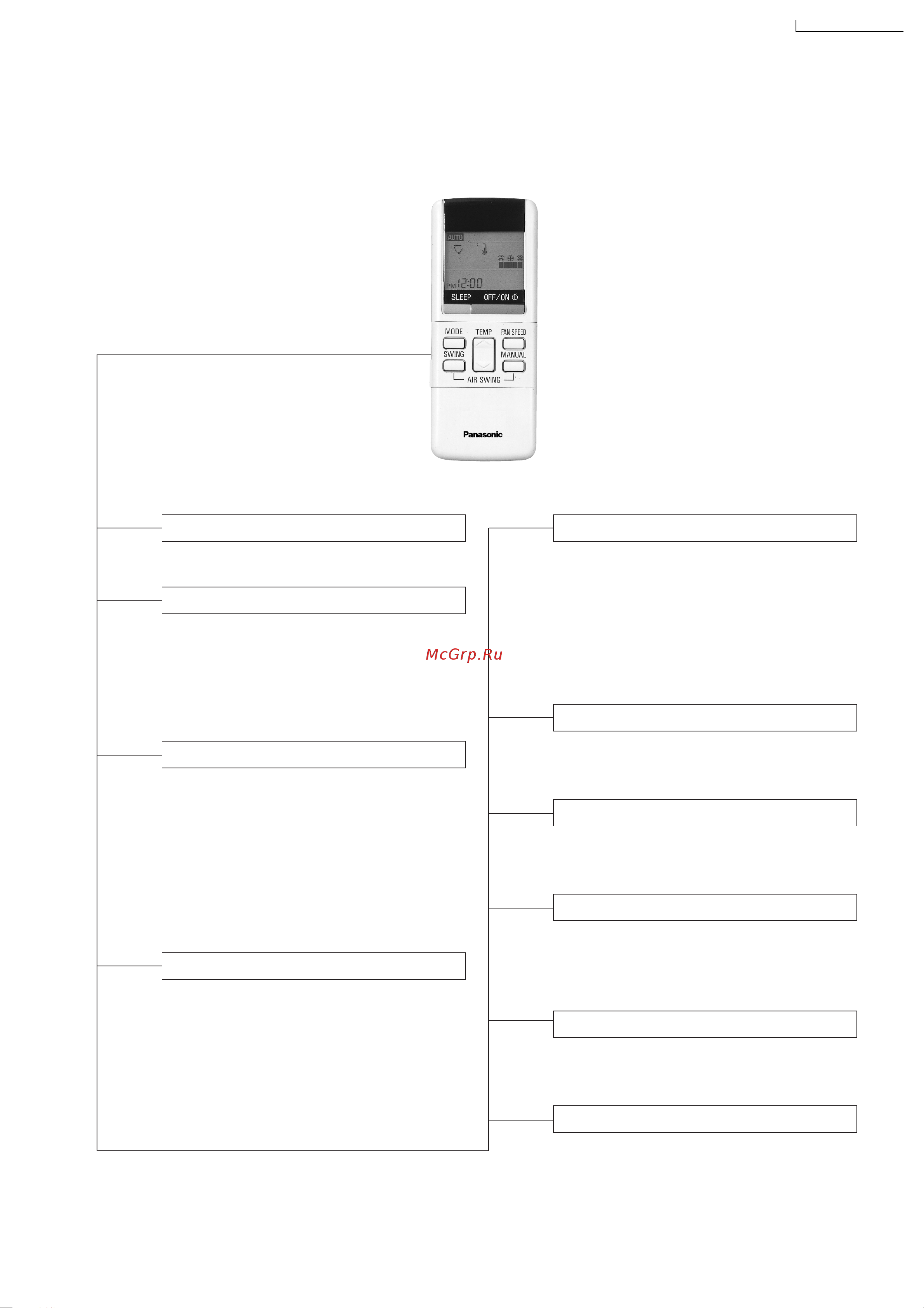

2 Functions
Remote Control
Operation OFF / ON
OFF / ON I
Room Temperature Setting
TEMP.
• Temperature Setting (16˚C to 30˚C)
• Automatic Operation
m
/
n 2˚C lower than standard
n Standard
n
-
o 2˚C higher than standard
Operation Mode Selection
•
AUTO
Automatic Operation Mode
•
HEAT
Heating Operation Mode
•
COOL
Cooling Operation Mode
•
DRY
Soft Dry Operation Mode
MODE
TIME
Time / Timer Setting
• Hours and minutes setting.
Clock Setting
• Current time setting.
Sleep Mode Operation OFF / ON
SLEEP
Indoor Fan Speed Selection
FAN SPEED
• h j k Low Speed
l
• h j k Medium Speed
lll
• h j k High Speed
lllll
•
AUTOFAN
Automatic Fan Speed
Airflow Direction Control
• 24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER
Timer Operation Selection
SET
CANCEL
Timer Operation Set / Cancel
• ON Timer and OFF Timer setting and
cancellation.
CLOCK
(q)
AIR SWING
•
SWING
Automatic Airflow Direction
Control
•
MANUAL
Airflow Direction Manual
Control
3
CS-A28BKP5/CU-A28BKP5
