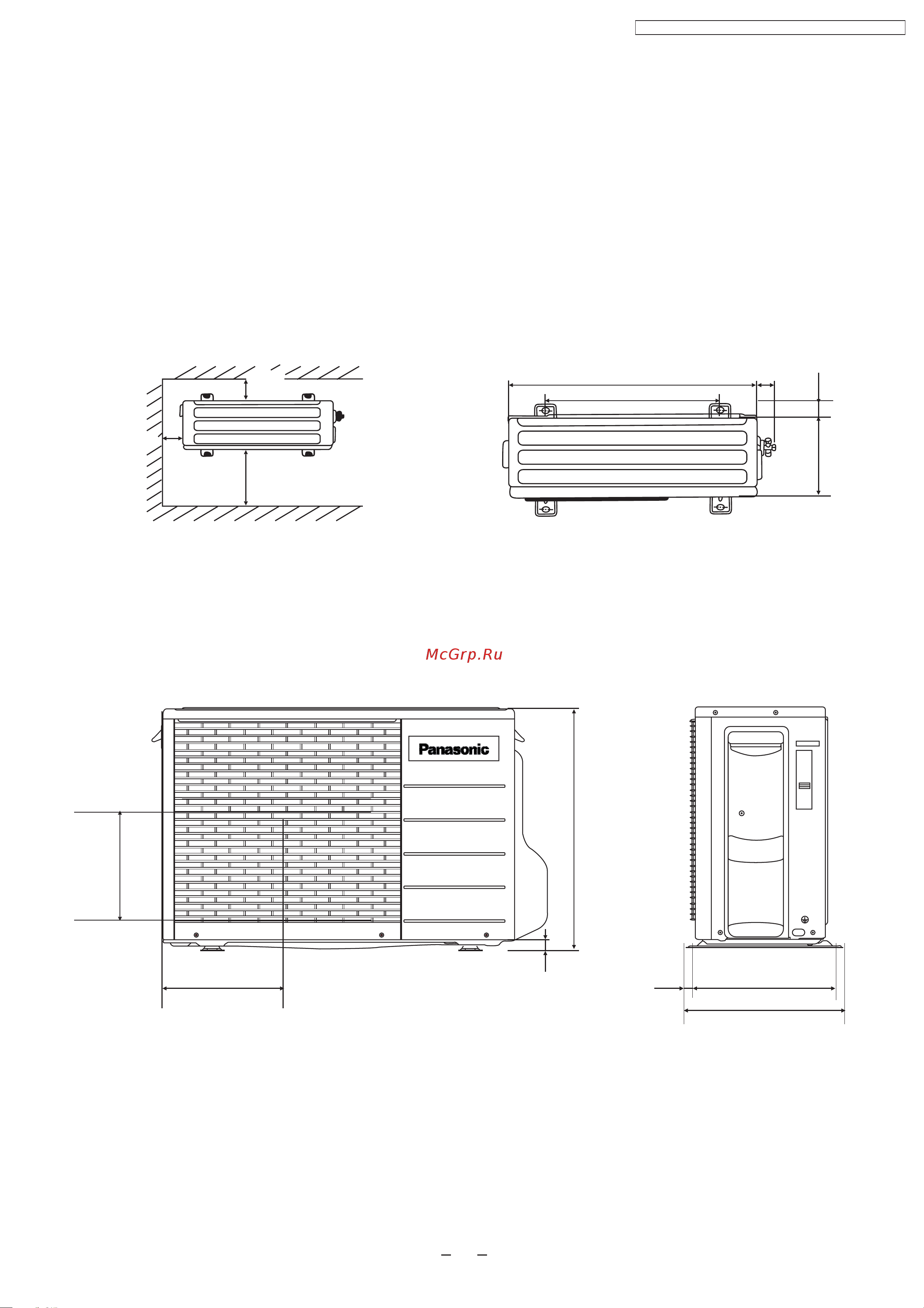

Outdoor Unit
Unit : mm
11
CS-PC12DKD / CU-PC12DKD / CS-PA12DKD / CU-PA12DKD
More
than 10cm
More than 100 cm
780
48
570
34.5
289
540
18
320
352
16
291
274
INVERTER
More
than 10cm
<Front View>
<Side View>
<Top View>
