15.4.8. H25 (e-ion Air Purifying System Abnormal)
Malfunction Decision Conditions
During standby of cooling and heating operation, e-ion breakdown occurs and air conditioner stops operation.
Malfunction Caused
• Faulty indoor main PCB.
• Faulty indoor e-ion power module.

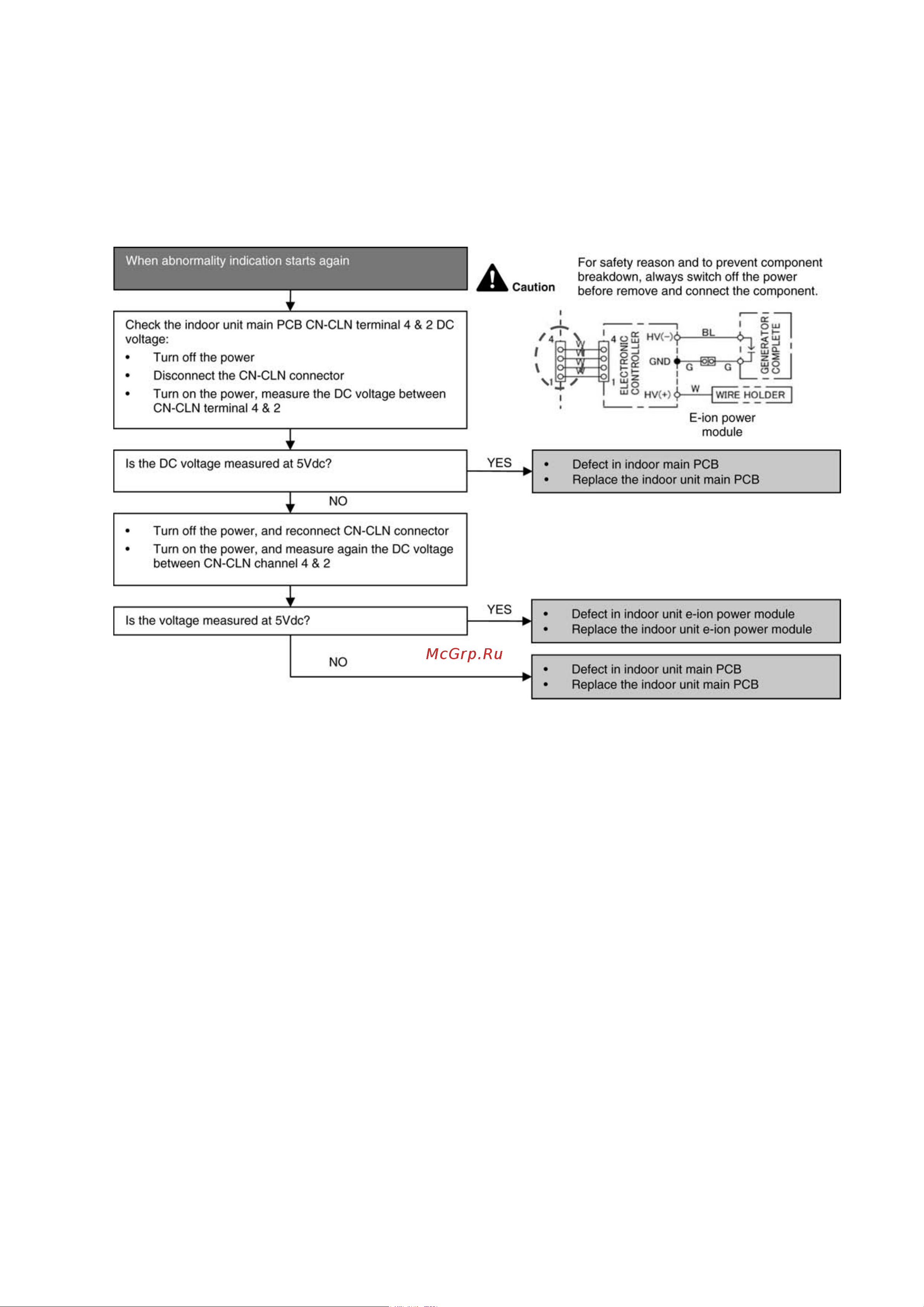

Troubleshooting
