Panasonic CU-HE9NKE [67/110] H24 indoor pipe temperature sensor 2 abnormality

15.4.8 H24 (Indoor Pipe Temperature Sensor 2 Abnormality)

Malfunction Decision Conditions

• During startup and operation of cooling and heating, the temperatures detected by the indoor heat exchanger

temperature sensor 2 are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

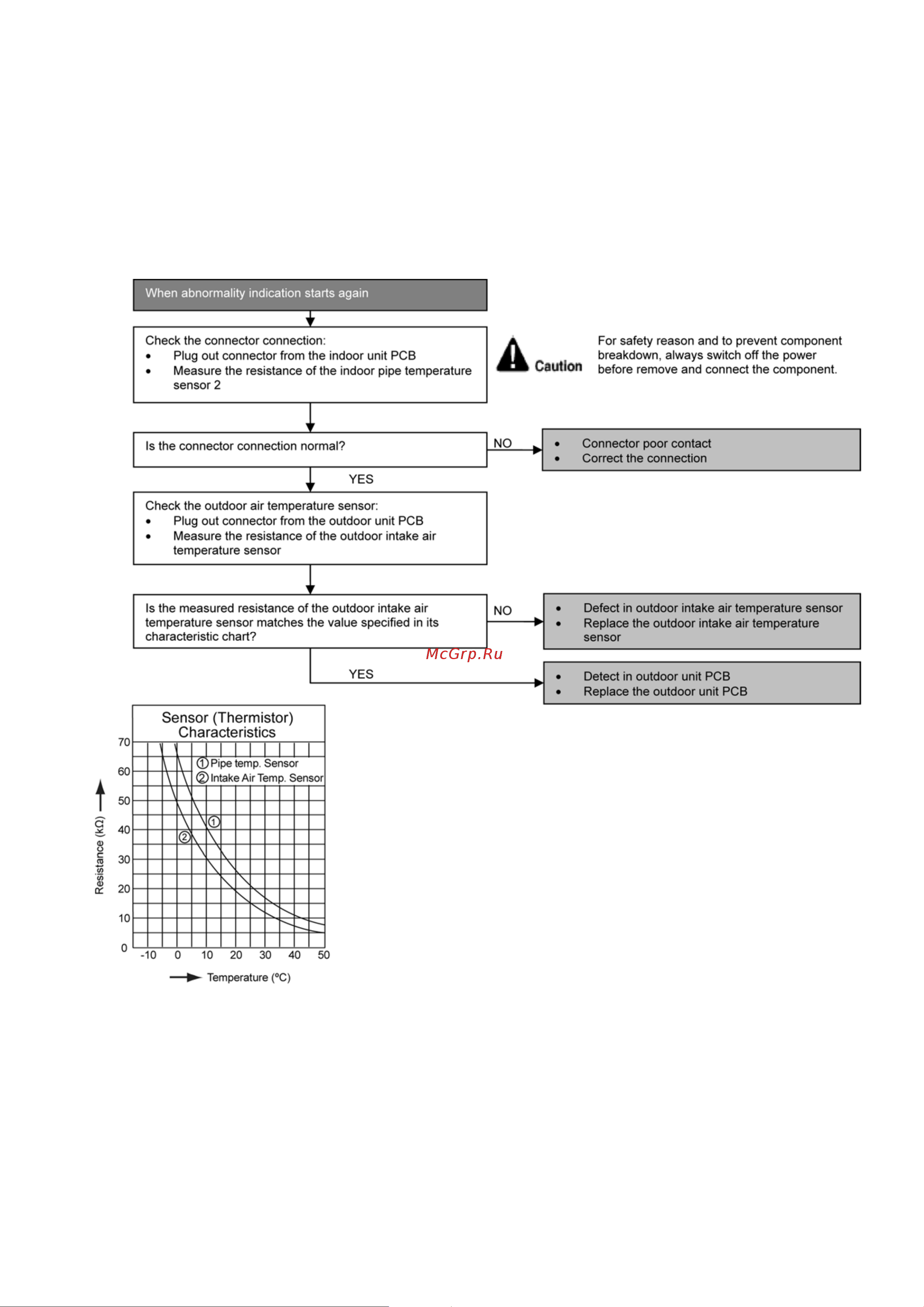

Troubleshooting
