15.4.25 F93 (Compressor Rotation Failure)

Malfunction Decision Conditions

• A compressor rotation failure is detected by checking the compressor running condition through the position

detection circuit.

Malfunction Caused

• Compressor terminal disconnect

• Outdoor PCB malfunction

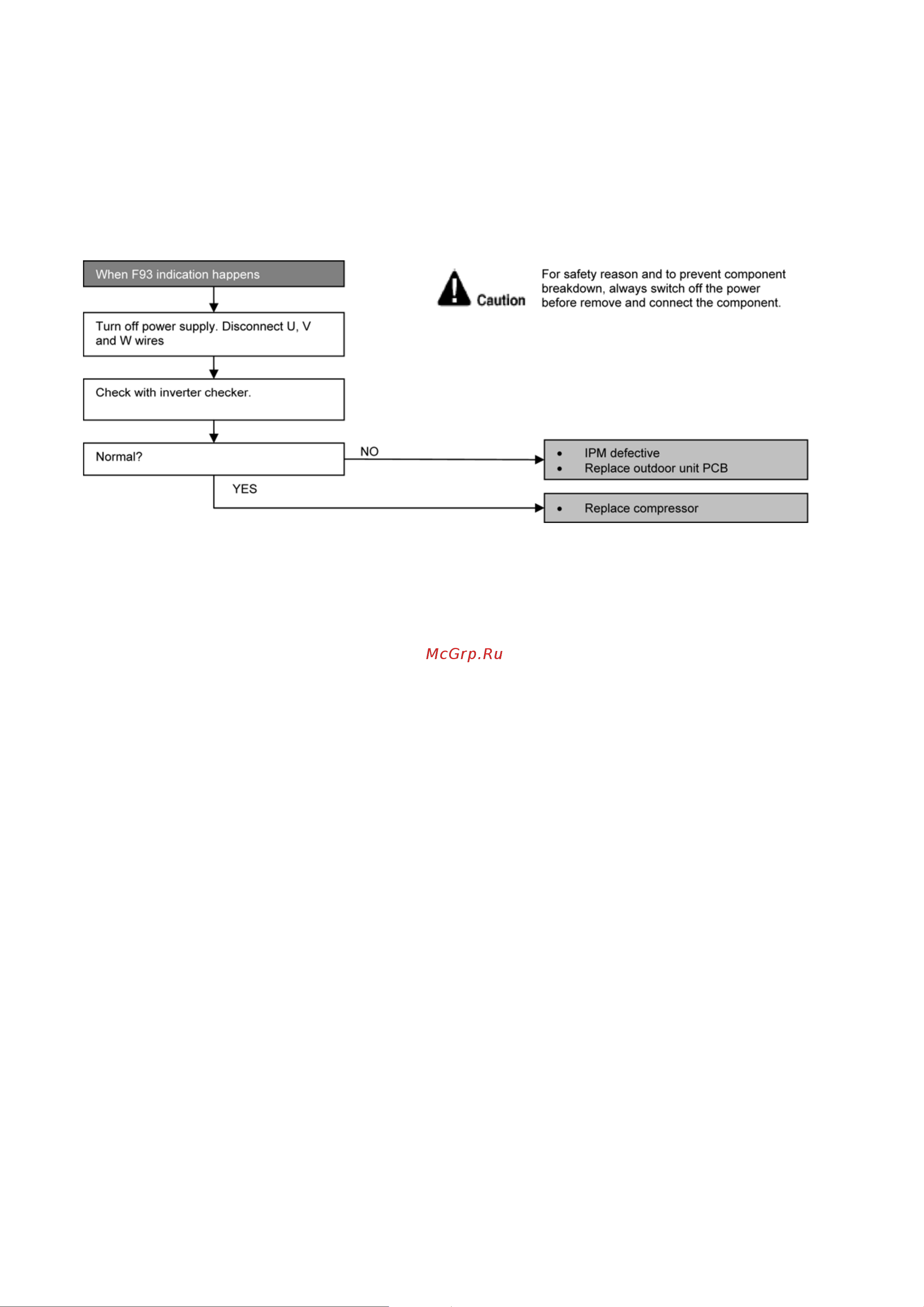

Troubleshooting
