Panasonic CU-HE9NKE [76/110] 7 h37 outdoor liquid pipe temperature sensor abnormality

15.4.17 H37 (Outdoor Liquid Pipe Temperature Sensor Abnormality)

Malfunction Decision Conditions

• During startup and operation of cooling and heating, the temperatures detected by the outdoor liquid pipe

temperature sensor are used to determine sensor errors.

Malfunction Caused

• Faulty connector connection.

• Faulty sensor.

• Faulty PCB.

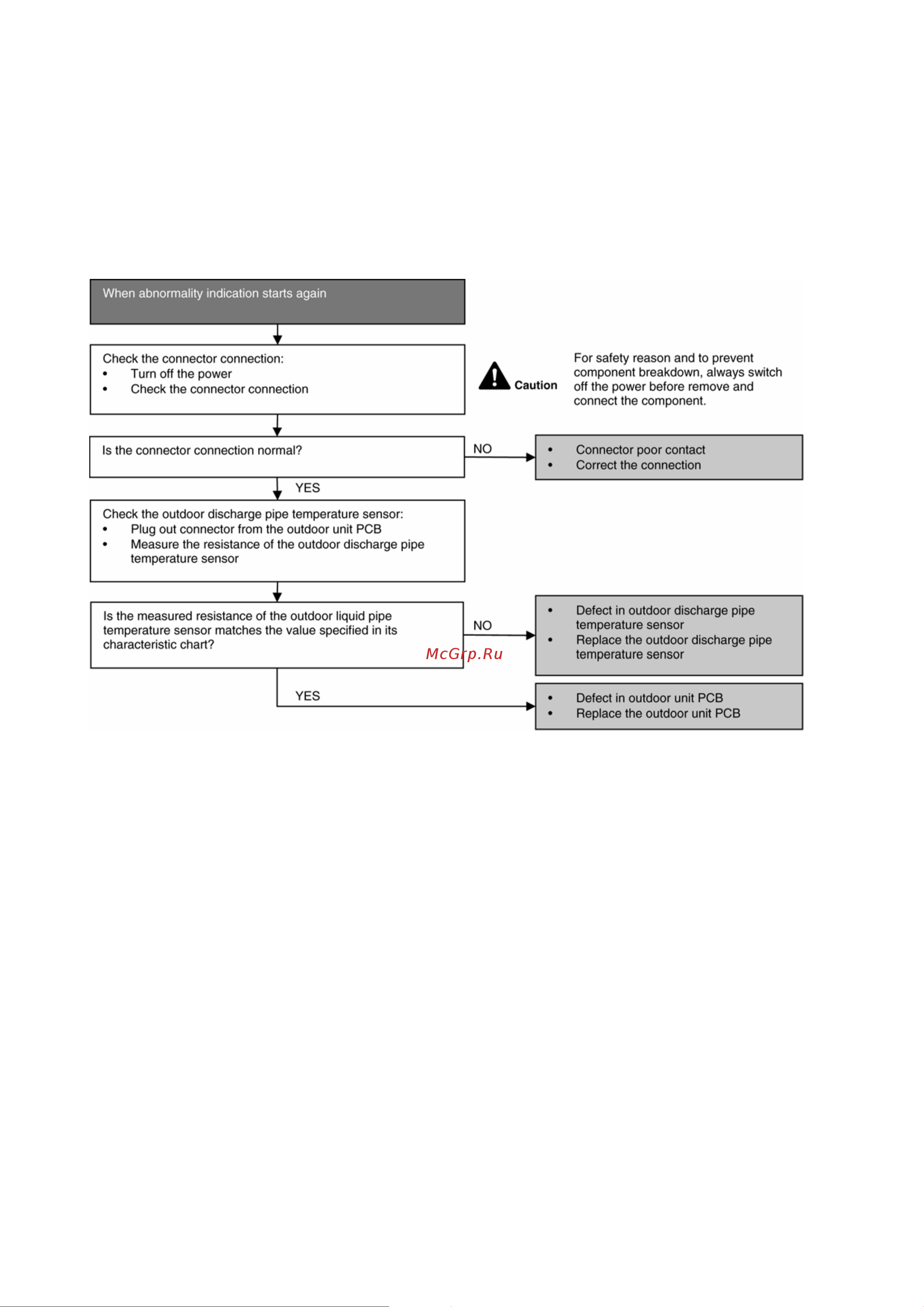

Troubleshooting
