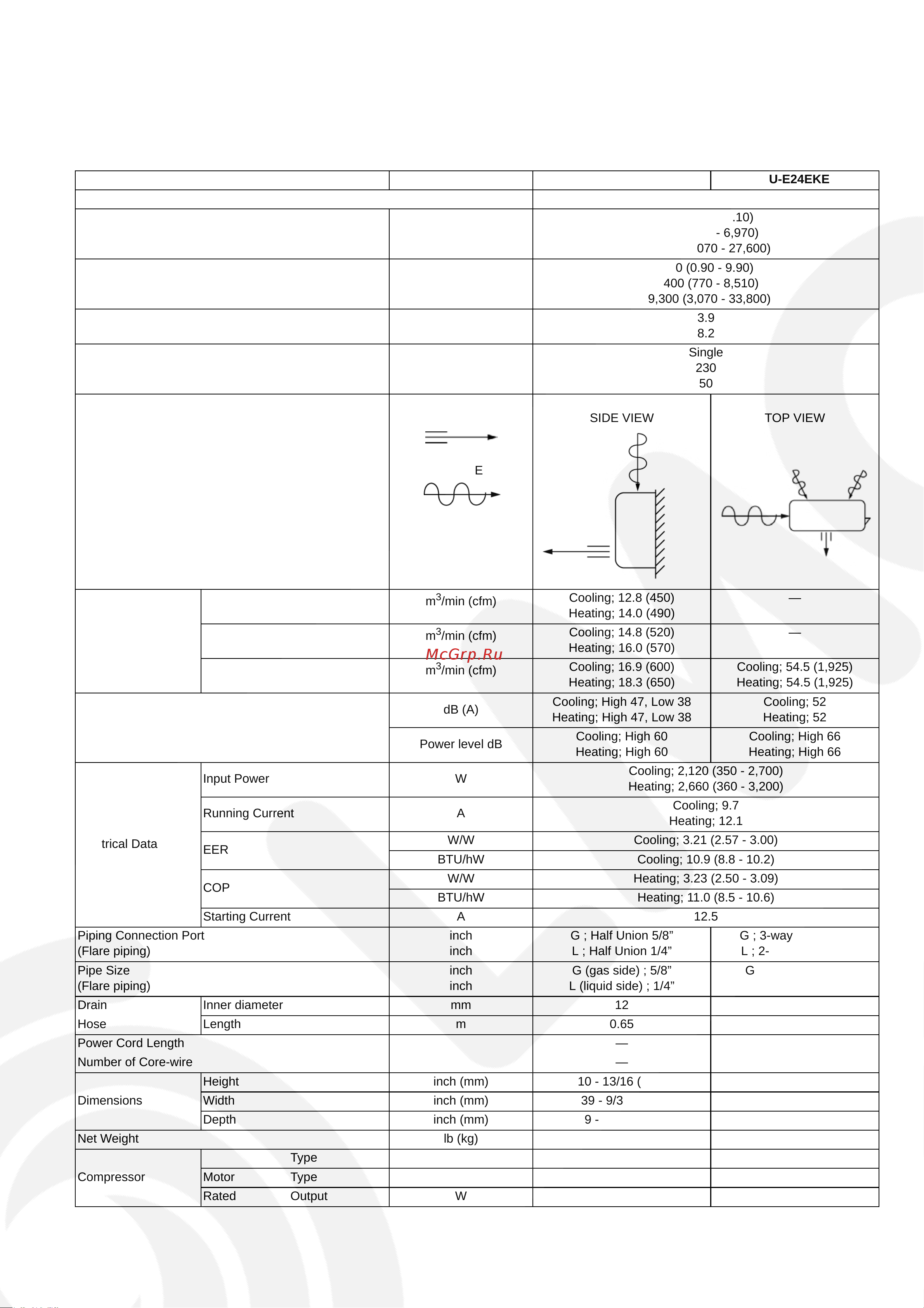

2 Specifications
2.1. CS-E24EKES CU-E24EKE
Unit CS-E24EKES CU-E24EKE
Performance Test Condition EUROVENT
Cooling Capacity
kW
kcal/h
BTU/h
6.80 (0.90 - 8.10)
5,850 (770 - 6,970)
23,200 (3,070 - 27,600)
Heating Capacity
kW
kcal/h
BTU/h
8.60 (0.90 - 9.90)
7,400 (770 - 8,510)
29,300 (3,070 - 33,800)
Moisture Removal
l/h
Pint/h
3.9
8.2
Power Source (Phase, Voltage, Cycle)
ø
V
Hz
Single
230
50
Airflow Method
OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Volume
Lo
m
3
/min (cfm)
Cooling; 12.8 (450)
Heating; 14.0 (490)
—
Me
m
3
/min (cfm)
Cooling; 14.8 (520)
Heating; 16.0 (570)
—
Hi
m
3
/min (cfm)
Cooling; 16.9 (600)
Heating; 18.3 (650)
Cooling; 54.5 (1,925)
Heating; 54.5 (1,925)
Noise Level
dB (A)
Cooling; High 47, Low 38
Heating; High 47, Low 38
Cooling; 52
Heating; 52
Power level dB
Cooling; High 60
Heating; High 60
Cooling; High 66
Heating; High 66
Electrical Data
Input Power W
Cooling; 2,120 (350 - 2,700)
Heating; 2,660 (360 - 3,200)
Running Current A
Cooling; 9.7
Heating; 12.1
EER
W/W Cooling; 3.21 (2.57 - 3.00)
BTU/hW Cooling; 10.9 (8.8 - 10.2)
COP
W/W Heating; 3.23 (2.50 - 3.09)
BTU/hW Heating; 11.0 (8.5 - 10.6)
Starting Current A 12.5
Piping Connection Port
(Flare piping)
inch
inch
G ; Half Union 5/8”
L ; Half Union 1/4”
G ; 3-way valve 5/8”
L ; 2-way valve 1/4”
Pipe Size
(Flare piping)
inch
inch
G (gas side) ; 5/8”
L (liquid side) ; 1/4”
G (gas side) ; 5/8”
L (liquid side) ; 1/4”
Drain Inner diameter mm 12 —
Hose Length m 0.65 —
Power Cord Length ——
Number of Core-wire ——
Dimensions
Height inch (mm) 10 - 13/16 (275) 31 - 5/16 (795)
Width inch (mm) 39 - 9/32 (998) 35 - 7/16 (900)
Depth inch (mm) 9 - 1/16 (230) 12 - 19/32 (320)
Net Weight lb (kg) 26 (12) 159 (72.0)
Compressor
Type — Hermetic Rotary
Motor Type — DC Brushless (4-pole)
Rated Output W — 1,700
