Panasonic CS-E28EKES [54/77] Technical data

16 Technical Data

16.1. Operation Characteristics

16.1.1. CS-E24EKES CU-E24EKE

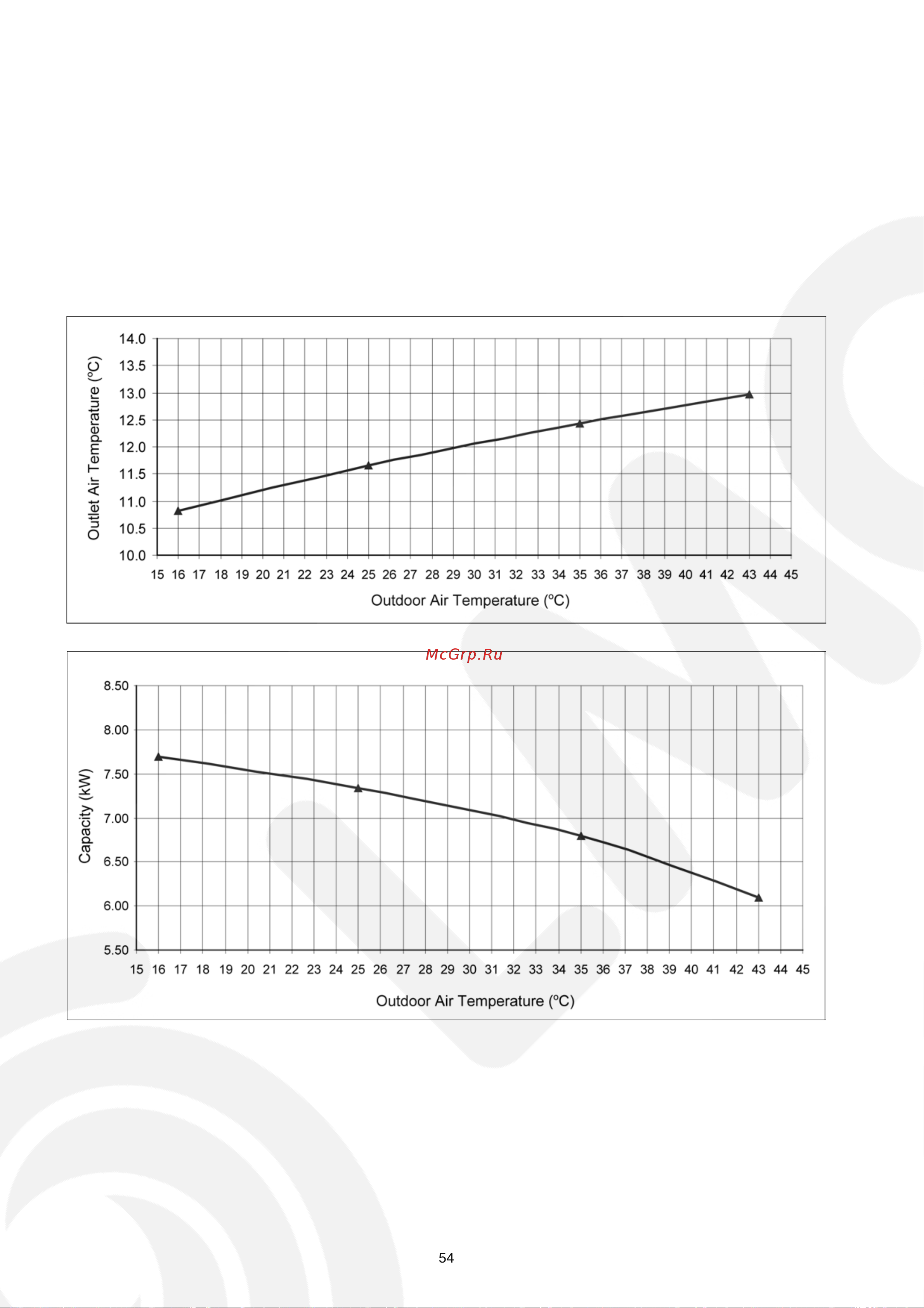

Cooling Characteristic at Different Outdoor Air Temperature

Condition

Indoor room temperature: 27/19 °C

Remote control setting: HI fan, COOL 16 °C

Compressor frequency: Rated cooling

Voltage: 230 V
