9.1.1.14. Auto Restart Control
•
• •
•
If there is a power failure, operation will automatically be restarted when the power is resumed. It will start with the previous
operation mode and airflow direction. (Timer Delay Safety Control is valid.)
1. Control start conditions
•
• •
•
The 24-hour timer must not be set.
•
• •
•
The sleep timer must not be set.
Auto start control is not available when timer or sleep mode is set.
2. Description of control
•
• •
•
In the case of manual operation, the operation mode, temperature setting, fan speed and airflow direction before the power
is turned off are restored.
•
• •
•
In the case of automatic operation, after the power is restored operation starts with the determination of the mode.
•
• •
•
While the air conditioner odour clear timer has been set, the setting is cancelled, and operation is transferred to the mode
before the power is turned off.
•
• •
•
While the air conditioner odour clear operation (with timer / without timer setting) are being performed, both of these
operations are completed, and operation is transferred to the operation mode prior to these operations.

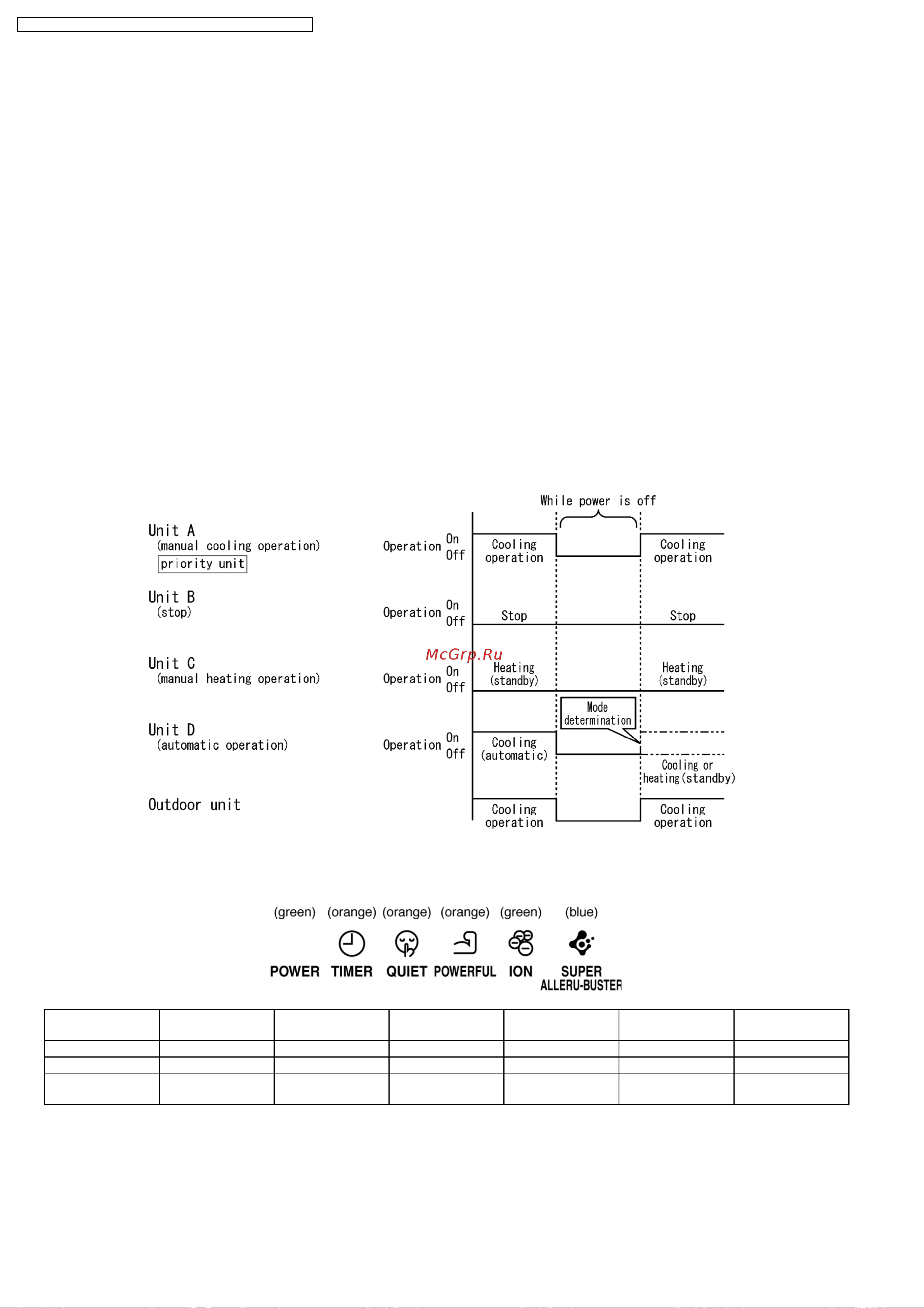

Example: When the power is turned off during an outdoor unit cooling operation.
9.1.1.15. Indication Panel
LED POWER TIMER QUIET POWERFUL ION ALLERGEN
BUSTER
Color Green Orange Orange Orange Green Blue
Light ON Operation ON Timer Setting ON Quiet Mode ON Powerful Mode ON Ion Mode ON Operation ON
Light OFF Operation OFF Timer Setting OFF Quiet Mode OFF Powerful Mode
OFF
Ion Mode OFF Operation OFF
Note:
•
• •
•
If POWER LED is blinking, the possible operations of the unit are Hot Start, during Deice operation, operation mode
judgment, or delay ON timer sampling.
•
• •
•
If timer LED is blinking, there is an abnormality operation occurs.
•
• •
•
If ionizer LED is blinking, there is an abnormality of ionizer occurs.
50
