Panasonic CS-V28EKE / CU-V28EKE [29/50] Indoor fan speed control

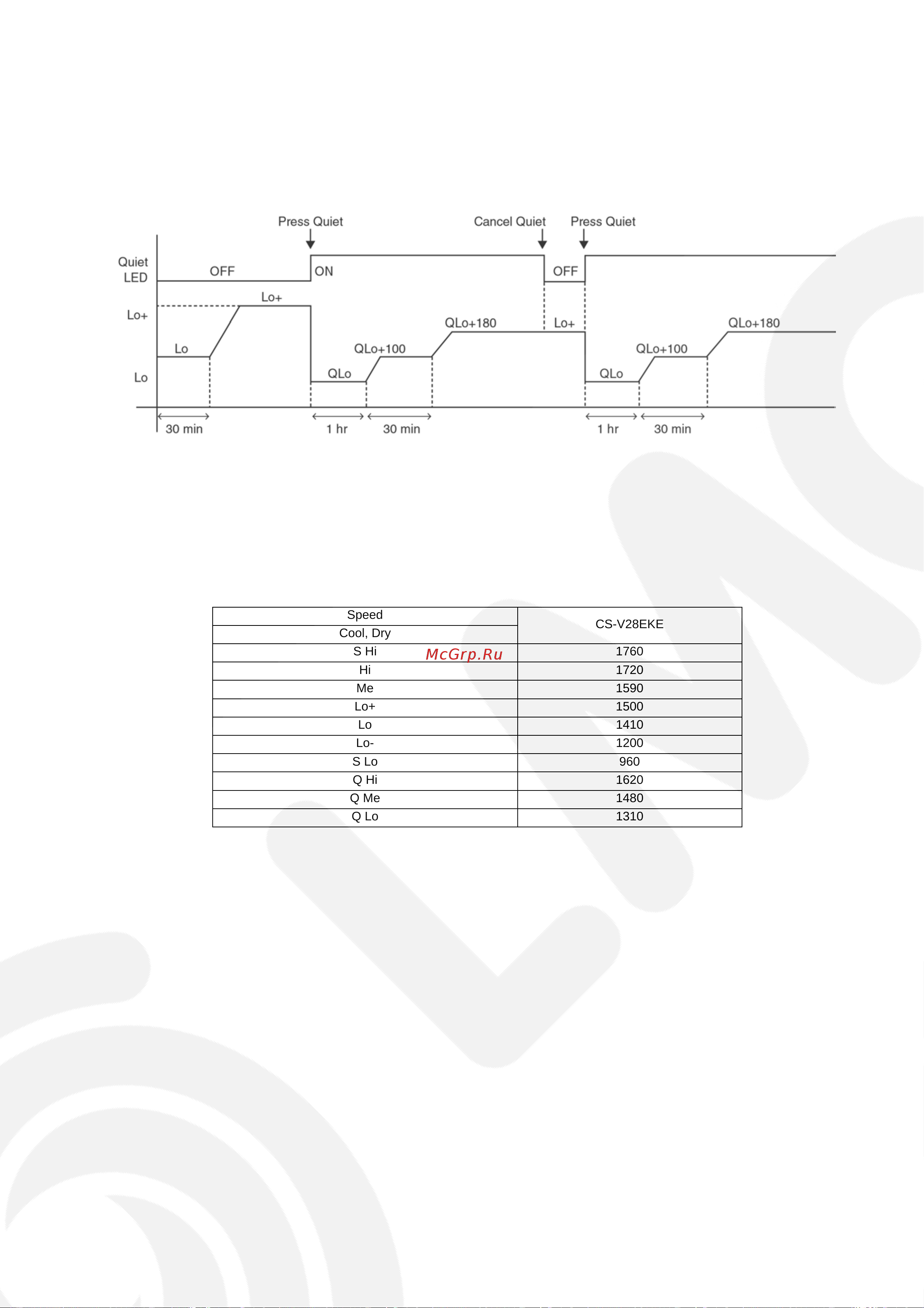

![Panasonic CS-V28EKE / CU-V28EKE [29/50] Indoor fan speed control](/views2/1832682/page29/bg1d.png)
29
- Indoor fan motor operate at low fan speed or QLo.
• This control is cancelled immediately when above condition is changed.
• Dew prevention is control by:
1. Lo fan speed
Lo fan is changed to Lo+ fan
2. QLo fan speed
11.5. Indoor Fan Speed Control
• Indoor Fan Speed can be set using remote control.
11.5.1. Fan Speed Rotation Chart
Speed
CS-V28EKE
Cool, Dry
S Hi 1760
Hi 1720
Me 1590
Lo+ 1500
Lo 1410
Lo- 1200
S Lo 960
Q Hi 1620
Q Me 1480
Q Lo 1310
