Panasonic CS-V28EKE / CU-V28EKE [42/50] To remove the cross flow fan and indoor fan motor

14.1.5. To remove the Cross Flow Fan and Indoor Fan Motor

• Remove the screw at the Cross Flow Fan. (Fig. 7)

Reminder :-

To reinstall the Fan Motor, please adjust the connector

location is positioned 45° with Fan Motor before fixing

Control Board Casing. (Fig. 7)

• Remove the Bearing. (Fig. 8)

• Remove the screws at the left of the Evaporator. (Fig. 8)

• Push up the Evaporator and pull out the Cross Flow Fan

from shaft. By then, Fan Motor can be taken out. (Fig. 9)

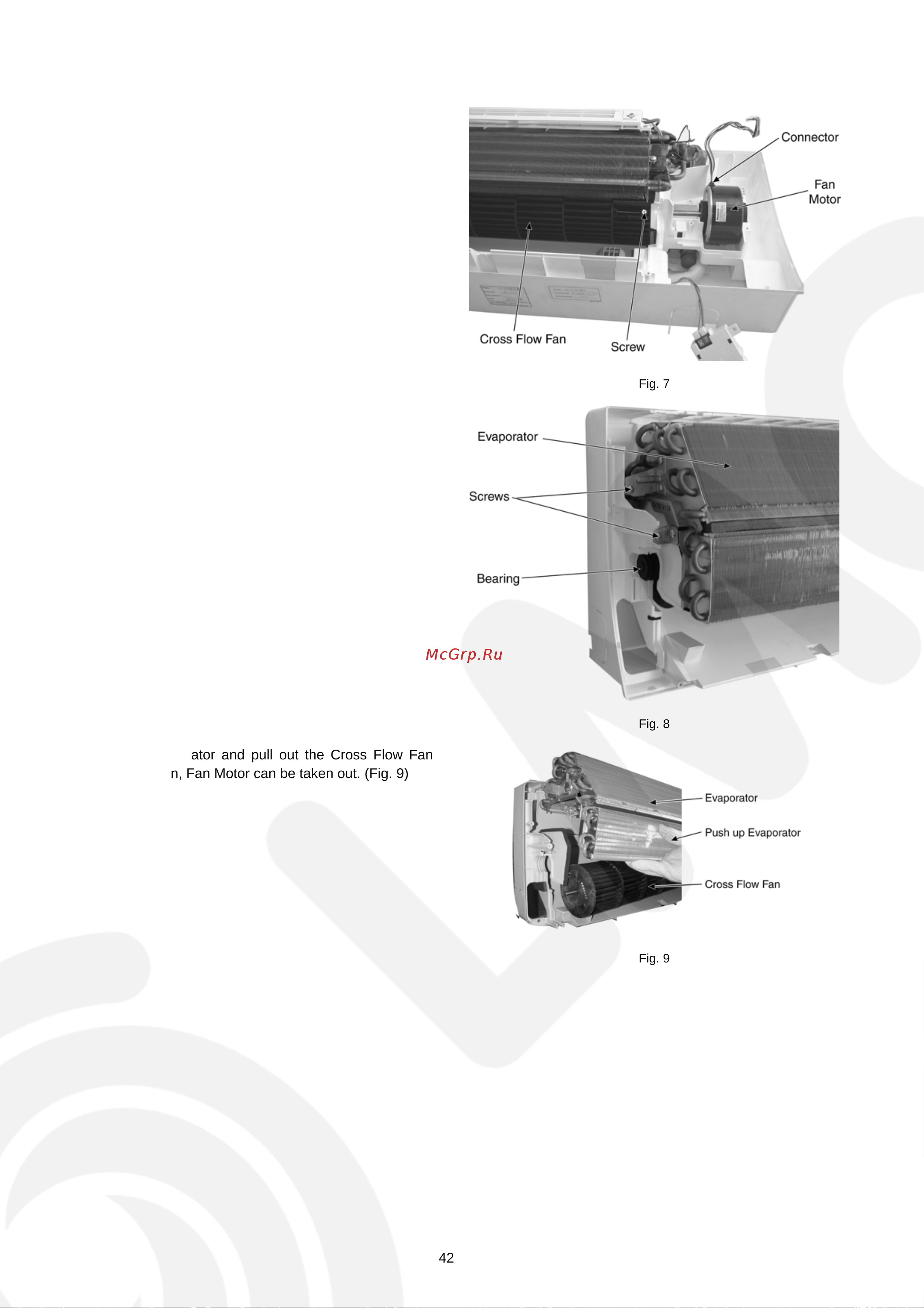

Fig. 7
