2530-8g-poe+ switch, j9774a
Installation and Getting Started Guide Страница: 10

HP 2530-8g-poe+ switch, j9774a Installation and Getting Started Guide онлайн [10/99] 154339

1-2

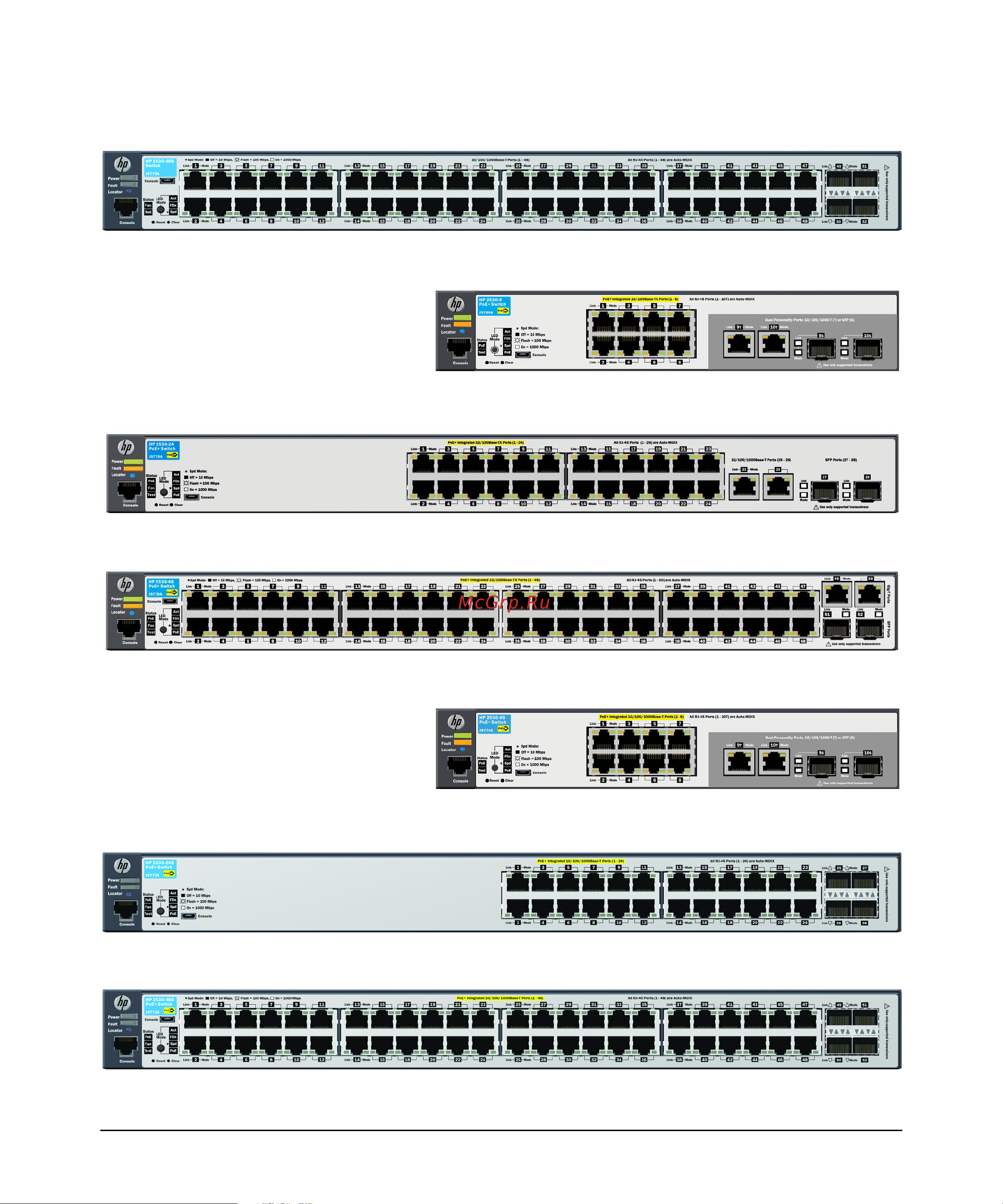

Introducing the Switch

HP 2530-24G-PoE+ Switch (J9773A)

HP 2530-48G Switch (J9775A)

HP 2530-8G-PoE+ Switch (J9774A)

HP 2530-8-PoE+ Switch (J9780A)

HP 2530-24-PoE+ Switch (J9779A)

HP 2530-48-PoE+ Switch (J9778A)

HP 2530-48G-PoE+ Switch (J9772A)
