![HP 2530-8g-poe+ switch, j9774a [81/99] Straight through twisted pair cable for 1000 mbps network connections](/img/pdf.png)
HP 2530-8g-poe+ switch, j9774a [81/99] Straight through twisted pair cable for 1000 mbps network connections
![HP 2530-8g-poe+ switch, j9774a [81/99] Straight through twisted pair cable for 1000 mbps network connections](/views2/1834713/page81/bg51.png)
A-13
Specifications
Twisted-Pair Cable/Connector Pin-Outs
Straight-Through Twisted-Pair Cable for
1000 Mbps Network Connections
1000BASE-T connections require that all four pairs of wires be connected.

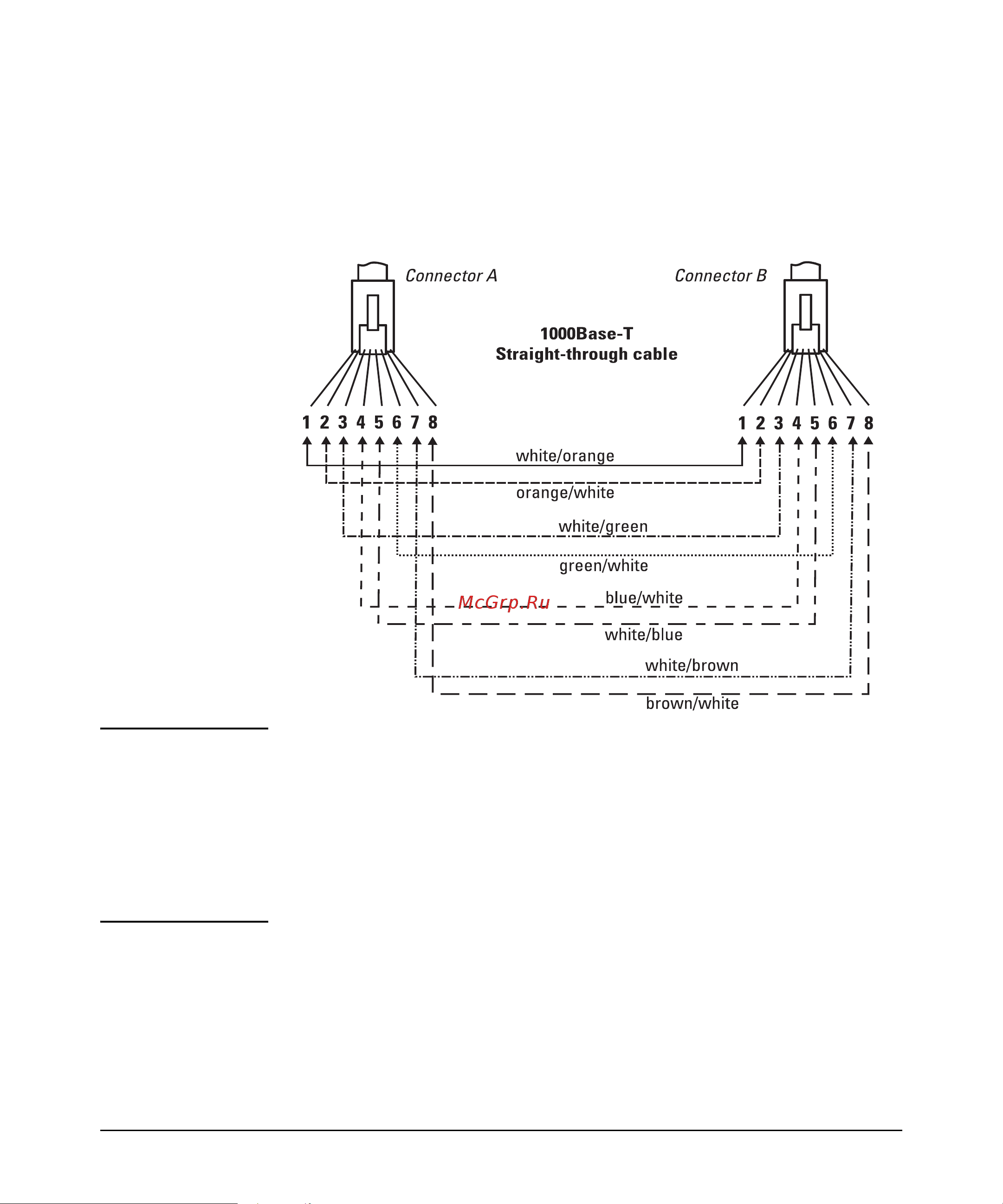

Cable Diagram
Note Pins 1 and 2 on connector “A” must be wired as a twisted pair to pins 1 and 2
on connector “B”.
Pins 3 and 6 on connector “A” must be wired as a twisted pair to pins 3 and 6
on connector “B”.
Pins 4 and 5 on connector “A” must be wired as a twisted pair to pins 4 and 5
on connector “B”.
Pins 7 and 8 on connector “A” must be wired as a twisted pair to pins 7 and 8
on connector “B”.
.
Pin Assignments
For 1000BASE-T operation, all four pairs of wires are used for both transmit
and receive.
