15.5. Print pattern
15.5.1. Indoor unit
•
• •
•
INDOOR UNIT

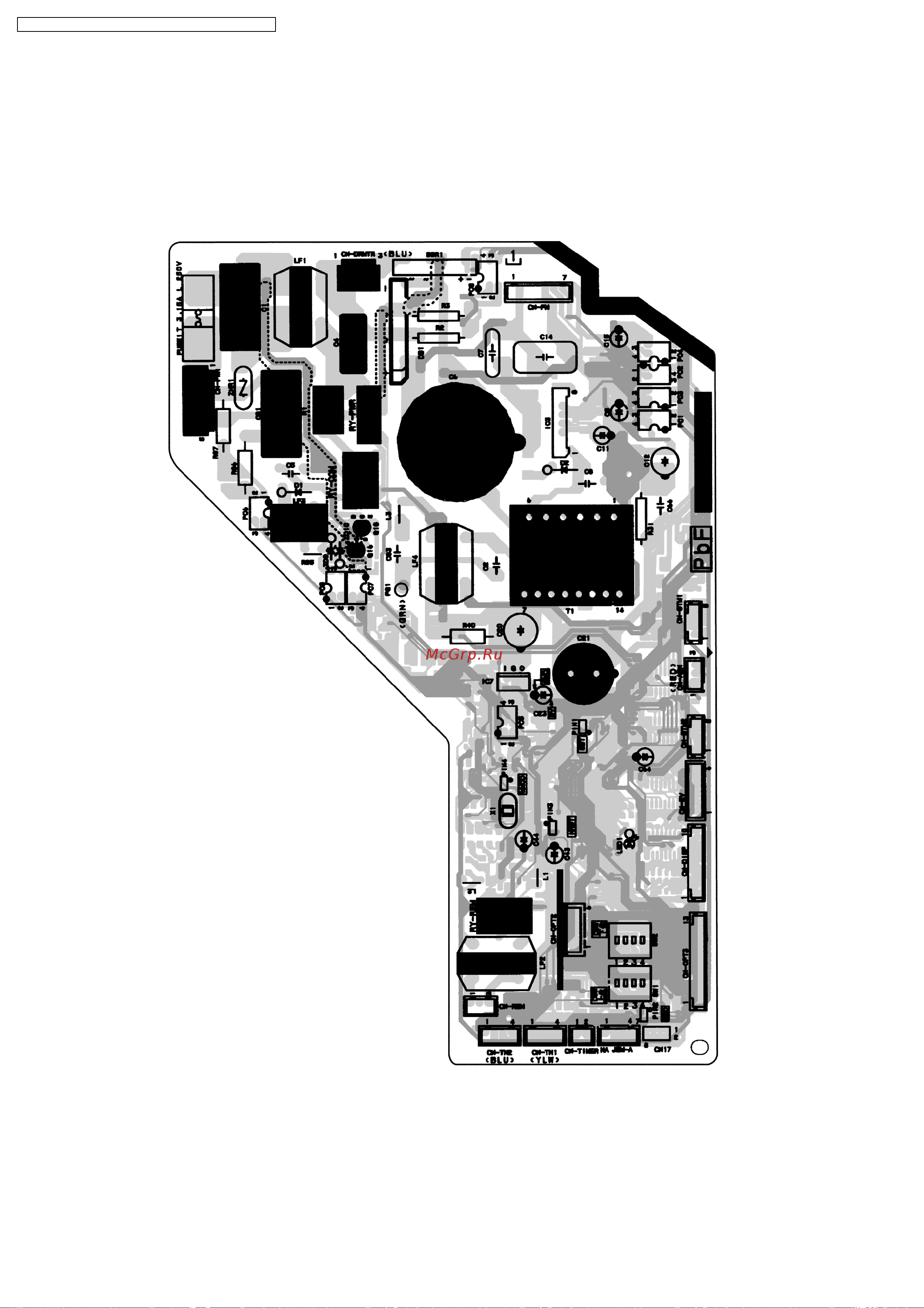

PRINTED CIRCUIT BOARD (MAIN)
110
CS-F34DB4E5 CU-L34DBE5 / CS-F43DB4E5 CU-L43DBE5
Содержание
- Air conditioner 1
- Contents 1
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 1
- Page page 1
- Caution during automatic address setting 3
- Caution of test operation 3
- Example of trouble at test operation 3
- Service information 3
- Indoor and outdoor temperature 4
- Model 50hz cu l34dbe5 cu l43dbe5 4
- Operation range 4
- Power supply 4
- The applicable voltage range for each unit is given in the following table the working voltage among the three phases must be balanced within a 3 deviation from each voltage at the compressor terminals the starting voltage must be higher than 85 of the rated voltage 4
- Auto fan mode indoor unit 5
- Auto swing louvre 5
- Automatic restart function 5
- Compact design 5
- Dry mode function 5
- Features 5
- Low ambient cooling operation 5
- Quiet operation 5
- Variety of excellent features 5
- Automatic changeover function heat pump models 6
- Hot start system heat pump models 6
- Piping and drainage 6
- Low noise design improves in surrounding areas 7
- Low noise outdoor units 7
- Additional refrigerant charging 8
- Drain water dripping prevention structure 8
- Easy test operation 8
- Improved workability 8
- Internal pipe connection 8
- Long pipe design 8
- Pipes that are one size larger can also be connected for renewal 8
- Space saving design allows units to be installed side by side continuously 8
- A brand new control method 9
- Centralized draining method 9
- Wired remote control 10
- Wireless remote control 10
- Group control equipment 11
- Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 12
- Cs f34db4e5 cu l34dbe5 12
- D b 6 c w b 42 f w b 12
- Electrical data 50 hz 12
- Heating capacities are based on indoor temperature 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f 12
- Product specification 12
- Specification 12
- Cooling capacities are based on indoor temperature of 27 c d b 80 f d b 19 c w b 66 f w b and outdoor air temperature of 35 c d b 95 f d b 24 c w b 75 f w b 13
- Cs f43db4e5 cu l43dbe5 13
- Electrical data 50 hz 13
- Heating capacities are based on indoor temperature of 20 c d b 68 f d b and outdoor air temperature of 7 c d b 44 f d b 6 c w b 42 f w b 13
- Dimensions 14
- Block diagram 17
- Wiring diagram 19
- Buttons marked with are not needed for normal operation if one of these buttons is pressed by mistake press the same button once more to cancel the operation 21
- Do not operate the remote control with wet hands otherwise electric shock or malfunction may occur 21
- Do not press the remote control buttons with sharp object as this may damage the remote control 21
- Ensure that the correct button is pressed as simultaneous pressing of the multiple buttons will not make the setting correct 21
- Name and function of each part 21
- Operation details 21
- The illustration above is for explanatory purposes only the appearance will be different during actual operation 21
- When the power resumed after power failure the unit will restart automatically with all the previous settings preserved by the memory function auto restart function 21
- Wired remote control optional part 21
- Buttons marked with are not needed for normal operation if one of these buttons is pressed by mistake press the same button once more to cancel the operation 22
- Ensure that the correct button is pressed as simultaneous pressing of the multiple buttons will not make the setting correct 22
- If using the wireless remote control in conjunction with the wired remote control the settings made from the wireless remote control will appear on the wired remote control display except when making timer settings 22
- Name and function of each part 22
- The illustration above is for explanatory purpose only the appearance will be different during actual operation 22
- When the power resumed after power failure the unit will restart automatically with all previous settings preserved by the memory function auto restart function 22
- Wireless remote control optional part 22
- Compressor start control 23
- Cool indoor fan control 23
- Cooling operation 23
- Operation control 23
- Operation mode 23
- As follow the below figure fan speed changing operation program air 24
- But when temperature after shifting is less than 16 c setting temperature is 16 c no change 24
- Cool powerful operation 24
- Is different if capacity rank is different 24
- Micro computer judge that required indoor load is bigger than calculation base from temperature differences between room temperature and setting temperature then increase the compressor frequency compared to normal to cool down indoor side immediately 24
- Odour cut control 24
- Odour cut operation is to remove the odour generated at indoor heat exchanger to use the drain water come out from indoor heat exchanger 24
- Odour cut operation is under below condition 24
- Rpm center b and 24
- Those kind of operation complete after 30 minutes when cool mode operation start 24
- Unit using ac motor 24
- Unit using dc motor 24
- When 1st thermostat on condition from operation start fan speed is hi same as manual fan speed after 2nd thermostat on condition fan speed change to medium speed same as manual medium fan speed 24
- When cool or dry mode operation start select odour cut mode or fan auto mode by remote control operation start at odour wash mode when compressor start or shift to thermostat on from thermostat off 24
- When cool or dry mode operation start temperature differences between room temperature and setting temperature is more than 5 k setting temperature shift to 2 k down 24
- Detail of freezing prevention control is as follows 25
- Dew form prevention control 25
- During cool or dry mode operation if indoor evaporator temperature is going down freezing prevention control is operated 25
- During cool or dry operation if outdoor temperature is less than 30 c and indoor fan speed is low or auto setting indoor heat exchanger temperature become lower dew form prevention control start to prevention dew form at indoor discharge grill 25
- Freezing prevention control 25
- Indoor evaporator temperature area is divided into 4 zones which consist of down zone no change zone up zone and recovery zone 25
- Indoor evaporator temperature area is divided into 5 zones which consist of stop zone down zone no change zone up zone and recovery zone when indoor evaporator temperature is going into each zone compressor frequency change by following the below table 25
- When indoor evaporator temperature is going into each zone change compressor frequency and louver angle by following the below table 25
- Cooling low temperature protection control 26
- Drain pump control 26
- Heating indoor fan control 26
- Heating mode operation 26
- Defrost control 27
- Heating indoor fan control at thermostat off heating mode operation 27
- Heating powerful operation 27
- Hot start control 27
- Heating high temperature protection 28
- During operation stopping thermostat off condition louver angle set manual or auto depend on remote controller setting 29
- Louver auto setting 29
- Louver control 29
- Louver control for cassette type 29
- Louver manual setting 29
- Temperature range for louver control during heating operation is as follows decide by indoor heat exchanger temperature 29
- When power is on at the same time louver start initializing toward to close direction 29
- Ceiling type louver control 30
- During operation stopping thermostat is off condition louver angle change as below table by manual setting or auto setting of remote controller 30
- When power is on at the same time louver initialize 2 times 30
- Odour removing operation 31
- Crank case heater control 32
- Energy save operation 32
- Outdoor fan remaining heat removal control 32
- Valve error 32
- Indoor air volume up control dc fan motor type only 33
- Pump down operation 33
- Installation instruction 34
- Pipe length 34
- At the time of shipment from the factory this unit is charged with enough refrigerant for an equivalent pipe length of 30 m refer the following table 35
- Attention 35
- But when the piping length exceeds 30m additional charge is required according to the following table 35
- Cu l34dbe5 35
- Do not decrease the size of the gas piping it causes the breakdown of the compressor 35
- Example 35
- In case of 50m long pipe one way the amount of refrigerant to be replenished is 50 30 x 50 1 000g 35
- Piping installation by standard piping 35
- Position of the centre gravity 35
- Refrigerant additional charge 35
- After installation work has been completed do not only make sure that the unit is free from any abnormal condition through the execution of trial run but also explain how to use and how to perform maintenance of this unit to the customer according to the instruction manual 36
- As to indications with illustration 36
- Cautions such items also have a chance for leading to significant result depending on the situations 36
- Cautions those that have much chances for leading to significant result such as fatality or serious injury if wrong installation would have been carried out are listed compiling them especially into the column of 36
- However even in the case of items which are listed in the column of 36
- In addition request the customer to keep this manual for installation work together with instruction manual 36
- In either case important descriptions regarding the safety are listed then observe them without fail 36
- Indoor unit installation 36
- Precautions shown here are differentiated between 36
- Warnings 36
- Warnings and 36
- Accessories packed in the indoor unit container 37
- Do not install the indoor unit at a laundry electric shocks may result 37
- If the height from the floor to ceiling exceeds three meters air flow distribution deteriorates and the effect is decreased 37
- If the power supply is subject to noise generation add a suppressor 37
- Install the indoor unit once the following conditions are satisfied and after receiving the customer approval 37
- Place the indoor unit according to the height from the ceiling shown in the illustration below 37
- Provide a check port on the piping side ceiling for repair and maintenance 37
- Selecting the location for indoor unit 37
- The indoor unit must allow easy connection to the outdoor unit 37
- The indoor unit must allow easy draining 37
- The indoor unit must be away from heat and steam sources but avoid installing it near an entrance 37
- The indoor unit must be free from any obstacles in path of the air inlet and outlet and must allow spreading of air throughout the room 37
- The indoor unit must be from at least 3m away from any noise generating equipment the electrical wiring must be shielded with a steel conduit 37
- The indoor unit must be within a maintenance space 37
- The installation position must be able to support a load four times the indoor unit weight 37
- Thoroughly study the following installation locations 37
- Warnings 37
- Installation of indoor unit 38
- Refrigerant piping 39
- Indoor unit drain piping 40
- Heat insulation 41
- Always ground the air conditioner with a grounding wire and screw to meet the local regulations 42
- As to the main power source and cable size of outdoor unit read the installation manual attached to the outdoor unit 42
- Be sure to connect the wires correctly to terminal board with connecting the crimp tyre ring terminal to the wires 42
- Be sure to turn off the main power before installing and connecting the remote controller 42
- Electrical wiring 42
- Feed the power source to the unit via a distribution switch board designed for this purpose the switch should disconnected all poles with a contact seperation of at least 3 mm 42
- Remove a one mounting screw remove the control box cover and then connect the wires by following the procedure given in the illustration 42
- Select a power source that is capable of supplying the current required by the air conditioner 42
- Use the standard power cord for europe such as ho5rn f or ho7rn f which conforms to cenelec har rating specifications or use the cable based on iec standard 245iec57 245iec66 42
- Settings 43
- Installation of decorative panel 44
- 0 as for timer output 46
- 1 precautions in test run 46
- 2 check the following items when installation is complete 47
- 3 hand over 47
- After installation work has been completed do not only make sure that the unit is free from any abnormal condition through the execution of try run but also explain how to use and how to perform maintenance of this unit to the customer according to the instruction manual 48
- As to indications with illustration 48
- Cautions such items also have a chance for leading to significant result depending on the situations 48
- Cautions those that have much chances for leading to significant result such as fatality or serious injury if wrong installation would have been carried out are listed compiling them especially into the column of 48
- However even in the case of items which are listed in the column of 48
- In addition request the customer to keep this manual for installation work together with instruction manual 48
- In either case important descriptions regarding the safety are listed then observe them without fail 48
- Outdoor unit installation 48
- Precautions shown here are differentiated between 48
- Warnings 48
- Warnings and 48
- A brazing work 49
- Accessories supplied with outdoor unit 49
- Before installation work 49
- Brazing work needs replacing air inside pipe with nitrogen gas in order to prevent oxidization scale from occurring this is called nitrogen replacement and one of very important work in brazing refrigerant piping oxidation preventive is not possible to use 49
- Charge hose 49
- Check that all accessory parts are present before installing the outdoor unit 49
- Gas leakage detection warning decive 49
- Gauge manifold 49
- Installation work 49
- The following parts are supplied as accessories with each outdoor unit 49
- There are tools and materials for both new refrigeration and usual refrigeration you can use together and for either two of them you can use use the below for new refrigeration 49
- This product is using new refrigeration r410a the basic way of installation work is the same as usual but water and impurities should be controlled more strictly than before due to characteristic of refrigerating machine oil therefore selection of materials to use and processing storing and brazing need appropriate construction and control 49
- Tools and materials 49
- Vacuum pump with back flow preventor system 49
- After that keep the pressure 100 kpa for 1 hour and confirm the vacuum gauge value not increasing 51
- Dry vacuuming 51
- For the use of a gas cylinder without siphon inside turn it upside down and use it 51
- Handling the unit by hold the handle at compressor side and hold the basepan bottom at fan side 51
- If vacuum gauge value is increase there is possibility of water inside the unit or there is any leakage 51
- If vacuum pump possible vacuuming until less than 100 kpa 51
- Regarding handling 51
- Running vacuum pump at both liquid and gas side for more than 1 hour and vacuuming until 100 kpa 51
- Select location which satisfies the following condition and then confirm with the customer that such a place is satisfactory before installing the outdoor unit 51
- Selecting the outdoor unit installation locations 51
- We recommend manifold with sight glass 51
- Transporting and installing the outdoor unit 52
- Connecting the pipes 53
- Charging with refrigerant 54
- Heat insulation 54
- Clamp the wires securely to the terminal connections using cord clamps so that no undue force is placed on the wires 55
- Connect the power supply wiring and indoor outdoor unit connection wiring according to the electrical circuit diagram instructions 55
- Electrical wiring 55
- Once all wiring work has been completed tie the wires and cords together with the binding strap so that they do not touch other parts such as the compressor and pipes 55
- Operate the pump down according to the following procedures 55
- Pump down operation 55
- Earth lead wire shall be longer than other lead wires as shown in the figure for the electrical safety in case of the slipping out of the cord from the anchorage 56
- Power supply specifications 56
- 0 connecting power supply cables 57
- 1 precautions with regard to test operation 57
- Caution 57
- For three phase model never operate the unit by pressing the electromagnetic switch 57
- Never correct the phase by switching over any of the wires inside the unit 57
- 2 as to making the inspection after completion of work fully understood 58
- 3 as to delivery to the customer 58
- Accessories supplied with wired remote controller 59
- Notes regarding wired remote controller setting up location 59
- Remote controller installation 59
- Wired remote control installation 59
- Settings 62
- Self diagnosis function 64
- Test operation 64
- Accessories supplied with the wireless remote controller 66
- After installing the wireless remote controller carry out a test operation to check that the remote controller functions properly and also explain the operation and cleaning procedures to the customer in accordance with the details in the instruction manual 66
- Before installing the wireless remote controller be sure to thoroughly read the notes with regard to safety section of the installation manual provided with the indoor unit 66
- Furthermore ask the customer to keep this installation manual and the instruction manual in a safe place for later reference 66
- If installing in a place where a power supply is generating electromagnetic noise take measures such as installing a noise filter 66
- If the remote controller is at an angle to the receptor unit the operation range may become shortened 66
- If using an inverter type fluorescent light keep the receptor unit at least 1m away from the light otherwise remote control operation may not work properly 66
- Install at least 1m away from equipment such as tvs and radios otherwise picture distortion or static may occur 66
- Install at least 3m away from any noise sources and shield the electric cables using an iron conduit pipe 66
- Installing the wireless remote controller to a wall for remote control storage 66
- Points and notes regarding wireless remote controller setting up location 66
- The accessory receptor unit must be attached to the veneer panel 66
- The receptor unit for the wireless remote controller should be in a place where it will not be affected by direct light from fluorescent lights refer to the illustration below 66
- The wireless remote controller can be used to operate indoor units at a maximum range of 8 metres from directly facing infront of the indoor unit 66
- Wireless remote control installation manual 66
- Installing the receptor unit 67
- In the control box 69
- Receptor unit for ceiling type assembly procedure 69
- Route for wiring the cord as shown in the figure to the right 69
- Address setting for wireless remote controller and receptor unit only when using more than one indoor unit 70
- Emergency operation 72
- Twin operation 73
- A chemical characteristics the chemical characteristics of r410a are similar to those of r22 in that both are chemically stable non flammable refrigerants with low toxicity however just like r22 the specific gravity of r410a gas is heavier than that of air because of this it can cause an oxygen deficiency if it leaks into a closed room since it collects in the lower area of the room it also generates toxic gas when it is directly exposed to a flame so it must be used in a well ventilated environment where it will not collect 74
- About r410a refrigerant 74
- B compositional change pseudo azeotropic characteristics r410a is a pseudo azeotropic mixture comprising the two components r32 and r125 multi component refrigerants with these chemical characteristics exhibit little compositional change even from phase changes due to vaporization or condensation which means that there is little change in the circulating refrigerant composition even when the refrigerant leaks from the gaseous section of the piping accordingly r410a can be handled in almost the same manner as the single component refrigerant r22 however when charging because there is a slight change in composition between the gas phase and the liquid phase inside a cylinder or other container charging should basically begin with the liquid side 74
- C pressure characteristics as seen in table 2 the gas pressure of r410a is approximately 1 times as high as that of r22 at the same refrigerant temperature which means that special r410a tools and materials with high pressure specifications must be used for all refrigerant piping work and servicing 74
- Converting air conditioners to r410a since it was declared in1974 that chlorofluorocarbons cfc hydro chlorofluorocarbons hcfc and other substances pose a destructive danger to the ozone layer in the earth s upper stratosphere 20 to 40 km above the earth measures have been taken around the world to prevent this destruction the r22 refrigerant which has conventionally been used in acs is an hcfc refrigerant and therefore possesses this ozone destroying potential international regulations the montreal protocol on ozone damaging substances and the domestic laws of various countries call for the early substitution of r22 by a refrigerant which will not harm the ozone layer 74
- In acs the hfc refrigerant which has become the mainstream alternative is called r410a compared with r22 the pressure of r410a is approximately 1 times as high at the same refrigerant temperature but the energy efficiency is about the same consisting of hydrogen h fluorine f and carbon c r410a is an hfc refrigerant another typical hfc refrigerant is r407c while the energy efficiency of r407c is somewhat inferior to that of r410a it offers the advantage of having pressure characteristics which are about the same as those of r22 and is used mainly in packaged acs 74
- Installation and servicing air conditioner using r410a 74
- Outline 74
- The characteristics of hfc r410a refrigerants 74
- 1 always replace the dryer of the outdoor unit at the same time the replacement dryer is wrapped in a vacuum pack replace it last among the refrigerating cycle parts start brazing as soon as you have opened the vacuum pack and begin the vacuuming operation within 2 hours 75
- 1 you can use the conventional r22 flaring tool if you need to buy a new tool buy the r410a type 75
- 2 use when it is necessary to detect small gas leaks 75
- After finishing the installation check to make sure there is no refrigerant gas leaking 75
- Cause the gas pressure of r410a is approximately 1 times as high as that of r22 a mistake in installation or servicing could result in a major accident it is essential that you use r410a tools and materials and that you observe the following precautions to ensure safety 75
- D r410a refrigerating machine oil conventionally mineral oil or a synthetic oil such as alkylbenzene has been used for r22 refrigerating machine oil because of the poor compatibility between r410a and conventional oils like mineral oil however there is a tendency for the refrigerating machine oil to collect in the refrigerating cycle for this reason polyester and other synthetic oils which have a high compatibility with r410a are used as refrigerating machine oil because of the high hygroscopic property of synthetic oil more care must be taken in its handling than was necessary with conventional refrigerating machine oils also these synthetic oils will degrade if mixed with mineral oil or alkylbenzene causing clogging in capillary tubes or compressor malfunction do not mix them under any circumstances 75
- Do not perform any alterations on the ac unit under any circumstances have all repair work done by a specialist incorrect repairs can result in a water leakage electric shock fire etc 75
- Do not use any refrigerant other than r410a in acs that have been used with r410a 75
- For other installation work you should have the usual tools such as screwdrivers a metal cutting saw an electrical drill a hole core drill 65 or 70 dia a tape measure a level a thermometer a clamp meter an insulation tester a voltmeter etc 75
- If any refrigerant gas leaks while you are working ventilate the room toxic gas may be generated if refrigerant gas is exposed to a direct flame 75
- In order to prevent an r410a ac from mistakenly being charged with any other refrigerant the diameter of the 3 way valve service port on the outdoor unit has been changed also to increase its ability to withstand pressure the opposing dimensions have been changed for the refrigerant pipe flaring size and flare nut accordingly when installing or servicing refrigerant piping you must have both the r410a and ordinary tools listed below 75
- Necessary tools 75
- Safety measures when installing servicing refrigerant piping 75
- Tools for installing servicing refrigerant piping 75
- When installing or transferring an ac do not allow any air or substance other than r410a to mix into the refrigeration cycle if it does the pressure in the refrigeration cycle can become abnormally high possibly causing an explosion and or injury 75
- When installing or transferring an ac follow the instructions in the installation instructions carefully incorrect installation can result in an abnormal refrigeration cycle or water leakage electric shock fire etc 75
- Because the pressure is higher for the r410a type the conventional type cannot be used 76
- Copper tube gauge for clearance adjustment used when flaring with the conventional flaring tool clutch type 76
- Flaring tool clutch type 76
- In the r410a flaring tool the receiving hole for the clamp bar is enlarged so the clearance from the clamp bar can be set to 0 0 mm and the spring inside the tool is strengthened to increase the strength of the pipe expanding torque this flaring tools can also be used with r22 piping so we recommend that you select it if you are buying a new flaring tool 76
- Manifold gauge 76
- R410a tools 76
- The shape of the manifold ports has been changed to prevent the possibility of mistakenly charging with another type of refrigerant 76
- This gauge makes it easy to set the clearance for the copper tube to 1 1 mm from the clamp bar of the flaring tool 76
- Torque wrenches 76
- R410a tools which are usable for r22 models 78
- Piping materials 79
- Processing and connecting piping materials 79
- Refrigerant piping work 79
- A check to make sure there is no scratches dust etc on the flare and union 80
- A sheathed copper pipes and copper element pipes when using these pipes check to make sure that they are the stipulated thickness for flare nuts be sure to used the same nut that is used on the ac unit 80
- B align the flared surface with the axial center of the union 80
- Because the gas pressure of r410a is approximately 1 times as high as that of r22 copper pipes with the thickness shown in table 10 and with minimal impurities must be used care must also be taken during storage to ensure that pipes are not crushed deformed or scratched and that no dust moisture or other substance enters the pipe interior when storing sheathed copper pipes or plain copper pipes seal the openings by pinching or taping them securely 80
- C use a torque wrench and tighten to the specified torque the tightening torque for r410a is the same as the conventional torque value for r22 be careful because if the torque is too weak it may lead to a gas leak if it is too strong it may split the flare nut or make it impossible to remove the flare nut 80
- Makings and management 80
- Procedure and precautions for flare connection 80
- Storing and managing piping materials 80
- Types of piping and their storage the following is a general classification of the refrigerant pipe materials used for acs 80
- Inspecting gas leaks with a vacuum pump for new installations using new refrigerant piping 81
- Installation transferring servicing 81
- Ac units replacement using existing refrigerant piping 82
- Recharging refrigerant during servicing 82
- Refrigerant compatibility using r410a refrigerant in r22 acs and vice versa 82
- Transferring using new refrigerant piping 82
- Brazing 84
- Servicing tips 84
- Flashing blank off 85
- If the problem disappears and operation returns to normal the check display on the remote control unit will switch off but the self diagnosis led will remain illuminated until operation is resumed 85
- Illuminated 85
- Refer to the table below to remove the cause of the problem and then re start the air conditioner system 85
- Self diagnosis error code table 85
- The display screen on the wired remote control unit and the self diagnosis leds green on the outdoor unit printed circuit board in the outdoor unit can be used to indicate where the location of a problem is 85
- Troubleshooting guide 85
- Caution when servicing of fan and fan motor 87
- Servicing information 87
- Replacement parts 88
- All parts are supplied from phaam malaysia vendor code 061 90
- All parts are supplied from phaam malaysia vendor code 061 92
- Front grille complete cz bt03p 92
- All parts are supplied from phaam malaysia vendor code 061 96
- Electronic circuit diagram 97
- Indoor unit 97
- Schematic diagram 1 4 97
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 98
- Schematic diagram 2 4 98
- Vc r b cc 98
- Cn abn 99
- Cn stm1 99
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 99
- Pc1 pc817e7 1 99
- Q15 2sc3052f 99
- Schematic diagram 3 4 99
- T1 st 2139 99
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 100
- Electronic control unit 100
- Schematic diagram 4 4 100
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 101
- Outdoor unit 101
- Schematic diagram 1 7 a tic diagram 1 7 a 101
- C127 10 50v 102
- Cn fm3 102
- Cn fm4 102
- Cn hot 102
- Cn ry1 102
- Cn ry2 102
- Cr3 0 3 120 102
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 102
- Pc3 tlp620gb gr 1 102
- Ry n01 102
- Ry pry2 cn ry2 102
- Ry y1 cn y1 102
- Ry y2 cn y2 102
- Schematic diagram 2 7 a tic diagram 2 7 a 102
- Ss91 2 102
- 27 28 29 30 31 32 33 103
- 95 96 98 99 103
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 103
- Schematic diagram 3 7 a tic diagram 3 7 a 103
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 104
- Pc7 pc817e7 104
- Schematic diagram 4 7 a tic diagram 4 7 a 104
- T1 ets29ak7m1ac 104
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 105
- Gnd r b 105
- Schematic diagram 5 7 a tic diagram 5 7 a 105
- C79 0 2 630v ecqe 106
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 106
- Schematic diagram 6 7 a tic diagram 6 7 a 106
- Cs f34db4e5 cu l34dbe5 cs f43db4e5 cu l43dbe5 107
- Electronic control unit complete table 2 107
- Electronic control unit complete table 3 107
- Electronic control unit complete table 4 107
- Electronic control unit table 1 107
- Schematic diagram 7 7 a tic diagram 7 7 a 107
- Indoor unit 110
- Print pattern 110
- Outdoor unit 112
