Installation and Setup
Connecting to Optional Equipment
Connecting to an amplifier equipped with two
channel analog stereo or Dolby Pro Logic
II/Pro Logic
Connect the Left and Right AUDIO OUT jacks on this
unit to the audio left and right in jacks on your amplifi-
er, receiver or stereo system, using the audio cables.
Connecting to an amplifier equipped with two
channel digital stereo (PCM) or to an Audio/
Video receiver equipped with a multi-channel
decoder (Dolby Digital™, MPEG 2 or DTS)
1. Connect this unit’s DIGITAL AUDIO OUT jack
(COAXIAL or OPTICAL) to the corresponding in
jack on your amplifier. Use a digital (coaxial or
optical) audio cable.
2. You will need to activate this unit’s digital output.
(See “AUDIO” on page 16).
Digital Multi-channel sound
A digital multi-channel connection provides the best
sound quality. For this you need a multi-channel
Audio/Video receiver that supports one or more of the
audio formats supported by your unit (MPEG 2, Dolby
Digital and DTS). Check the receiver manual and the
logos on the front of the receiver.
Warning:
Due to the DTS Licensing agreement, the digital
output will be in DTS digital out when DTS audio
stream is selected.
Notes:
If the audio format of the digital output does not match
the capabilities of your receiver, the receiver will
produce a strong, distorted sound or no sound at all.
To see the audio format of the current DVD in the
On-Screen Display, press AUDIO.
11
Y
Pb
Pr
L
R
L
R

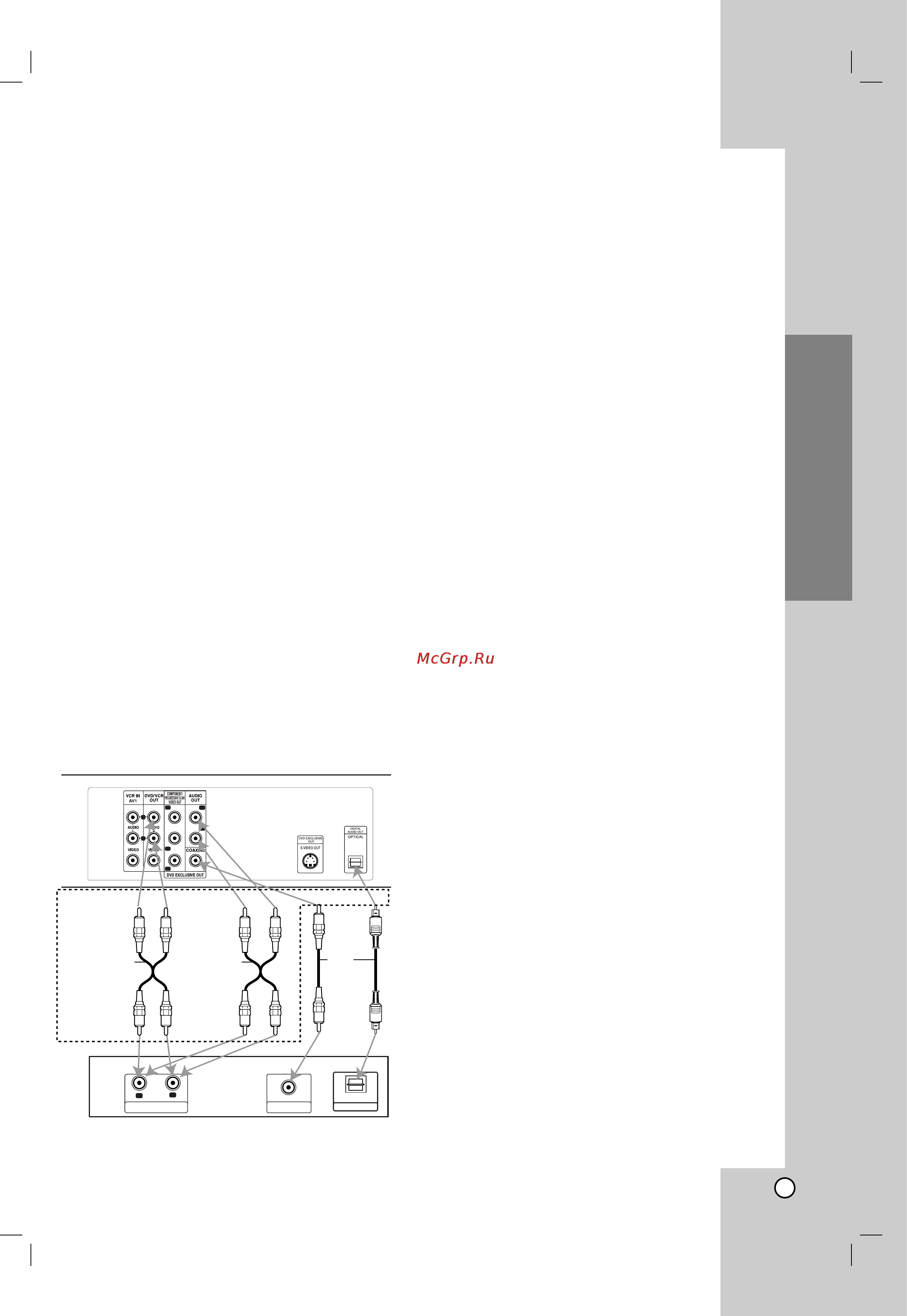

Amplifier (Receiver)
2 channel analog stereo or Dolby Pro Logic II / Pro Logic connection
DVD exclusive out
Rear of this unit
Both DVD and
VCR out
L
R
AUDIO INPUT
DIGITAL INPUT
COAXIAL
DIGITAL INPUT
OPTICAL
Digital
multi-channel
connection
(DVD exclusive
out connection)
