CITIZEN Label Printer Library for Windows - Programming Manual
5
1-2. Part Names and Functions

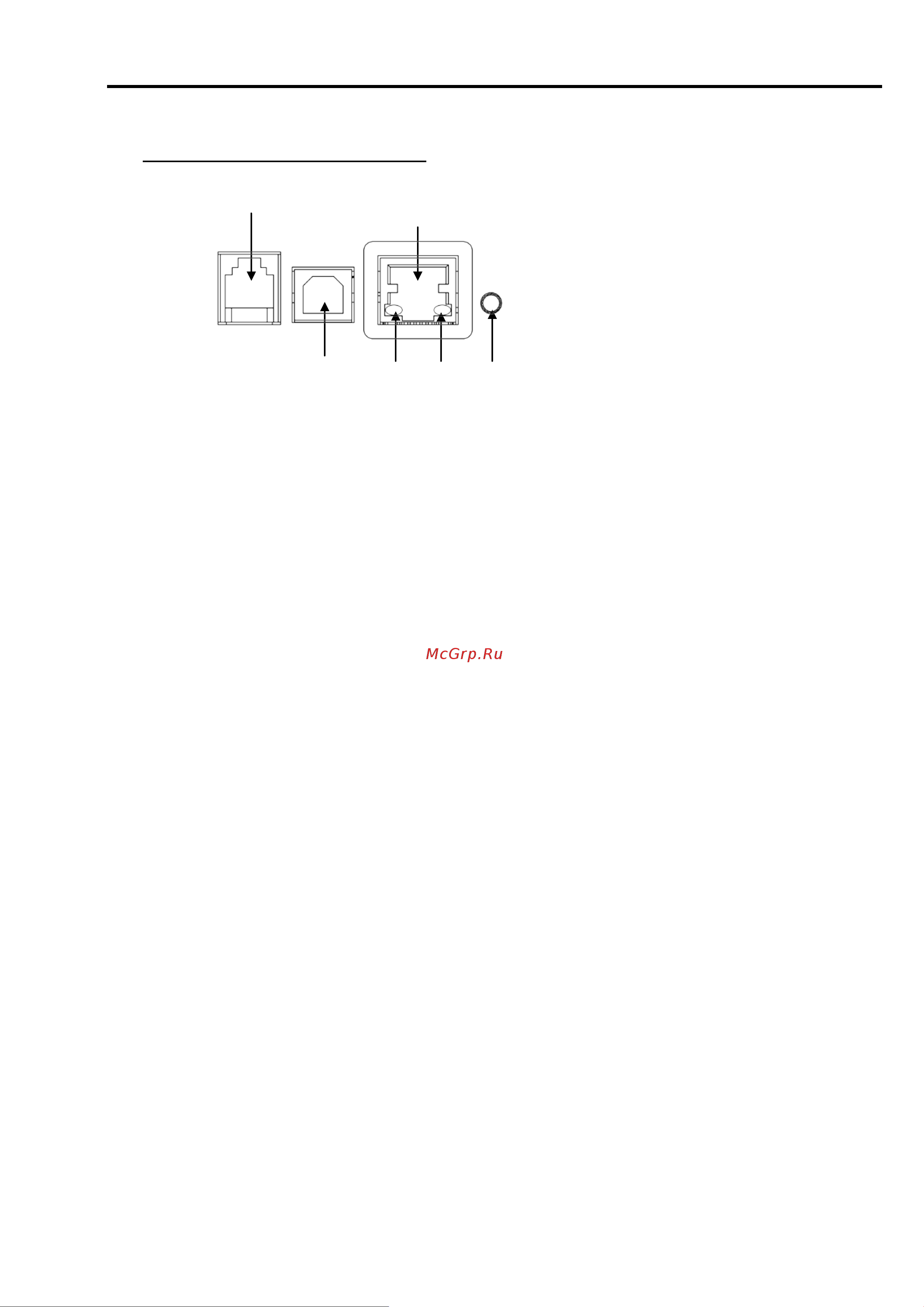

External view of Ethernet interface
① Cash Drawer connector
Connection for cash drawer
② USB connector
Works as standard USB connector
③ RJ45 connector (compatible with 10Base-T/100Base-TX)
Connection for LAN cable.
④ Green LED
Shows network transmission speed with steady/blinking light.
⑤ Yellow LED
Shows network connection status (disconnected, receiving data, etc.)
⑥ Panel button
Used to operate the Ethernet function.
①
②
③
④
⑤
⑥
