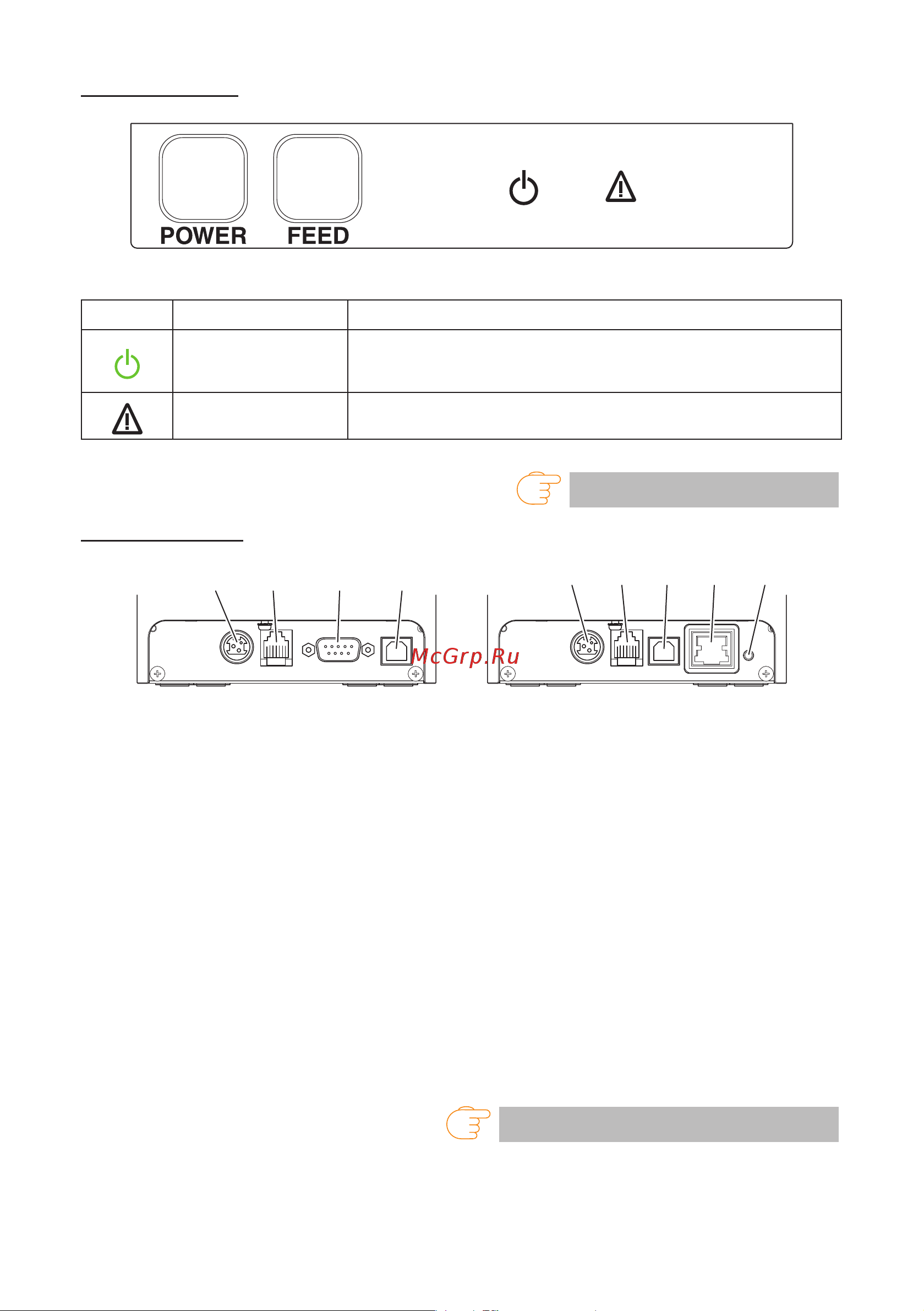

Operation panel
Two LEDs and two keys are placed on the operation panel.
LED name Description
POWER LED
Turns on when the power is turned on and turns off when the power is
turned off.
Flashes when a memory error occurs and when data is being received.
ERROR LED
Flashes when the print head is hot, when the paper cover is open,
when a cutter error occurs, and so on.
Refer to 4.5 Error Indications
Rear connectors
1423
USB + serial
45 623
Ethernet + USB
1. Serial connector (serial, USB, etc.)
Connect to the interface cable.
2. Cash drawer kick-out connector
Connect to the cable from the cash drawer.
3. Power connector
Connect to the AC adapter cable.
4. USB connector
5. Ethernet connector
6. Panel button
The current conguration information can be printed.
For details, refer to “Ethernet (LAN) Interface” in Section 3.3.
Refer to 3.3 Ethernet (LAN) Interface
