• User s manual p.1
• Line thermal printer p.1
• Weee mark p.2
• Declaration of conformity p.3
• General precautions p.4
• Warning p.5
• Safety precautions p.5
• Safety precaution p.5
• Caution p.5
• Precautions on printer installation p.6
• Warning p.6
• Caution p.7
• Warning p.8
• Precautions in handling the printer p.8
• Caution p.9
• Visit the following site to get documentation drivers utilities and other information http www citizen systems co jp english support index html p.10
• Daily maintenance p.10
• Caution p.10
• The table of contents p.11
• Setup 8 p.11
• Other 8 p.11
• Maintenance and troubleshooting 0 p.11
• General outline p.11
• Explanation of printer parts 2 p.11
• General outline p.12
• Features p.12
• Unpacking p.13
• Quick start guide 2 ac adapte p.13
• Printer 1 interface cover 1 ac power cord 1 power switch cover 1 sample paper roll 1 roll cd rom 1 p.13
• Model numbers indicate printer features according to the following system p.13
• Model classification p.13
• Make sure the following items are included with your printer p.13
• Ct s601 ii s 3 rs e bk p p.13
• 1 usb cabl p.13
• Basic specifications p.14
• Printer appearance p.15
• Paper cover open to load paper p.15
• Names of parts p.15
• Front cover release button press this button to open the front cover p.15
• Front cover open and close this cover to clear a cutter lock p.15
• Explanation of printer parts p.15
• Cover open lever use this lever to open the paper cover p.15
• Refer to 4 clearing a cutter lock 2 p.15
• Caution p.16
• Inside the paper cover p.18
• Other built in functions p.19
• Caution p.19
• If no data is received within 15 seconds after each cut or print the print position is automatically slid n dots to the right the original print position is returned to at the next slide timing n is the msw8 6 setting value p.20
• Caution p.20
• Connecting the ac power cord p.21
• Caution p.21
• Turn off the power 2 orient the interface cable correctly and insert it into the interface connector p.22
• Connecting interface cables p.22
• Place the interface cable so people do not trip on it p.23
• Hold the connector of the ethernet interface cable perpendicular and straight when connecting or disconnecting it doing it at an angle may cause the connector to misconnect p.23
• Check the orientation of the powered usb cable connector before connecting it insert it straight in so that the pins do not bend push it in until it clicks p.23
• Caution p.23
• Always unplug the ac adapter from the printer before connecting the printer to a powered usb interface failure to do so may damage the host pc for information about installing a powered usb interface contact your citizen systems dealer p.23
• When disconnecting the cable always hold the connector be careful not to insert the usb interface cable into the cash drawer kick out connector p.23
• Use a serial interface cable with the connection layout shown below p.23
• To connect more than one printer to a single computer via a usb interface you must change the serial number of the usb interface p.23
• _xx xx is last 2 digits of unique bd address when it is detected select this product from among the detected devices p.24
• When memory switch msw13 5 is set to no response nothing is displayed by device detection you can temporarily switch this setting to device detection detect mode by pushing the switch on the bluetooth interface board detect mode is exited when the connection between the host pc is terminated p.24
• The led on the bluetooth interface board on the rear of the printer indicates the status below p.24
• Pairing operation you need to perform the operations below the first time you establish a bluetooth connection for bluetooth data communication a detect bluetooth devices b configure pairing settings p.24
• Note you can search for devices and change the names p.24
• Bluetooth status led p.24
• Bluetooth interface board p.24
• A detecting bluetooth devices confirm that bluetooth is enabled on the host pc before searching for bluetooth devices this product will show up as ct s60 p.24
• Caution p.25
• Ethernet lan interface board p.26
• Caution p.26
• Board status p.27
• 100base p.27
• The tables below explain how to interpret led indications p.27
• Network transmission speed p.27
• Network status p.27
• Led functions p.27
• You can use a web browser to access a special settings page to check and change board settings p.28
• Changing network settings p.28
• Accessing the special settings page p.28
• Wireless lan interface board p.29
• Caution p.29
• Wired wireless lan status p.30
• Wired lan transmission speed p.30
• Wired lan connection transmission status p.30
• The tables below explain how to interpret led indications p.30
• Led functions p.30
• 2 electric characteristics 1 drive voltage 24 vdc 2 drive current approx 1 a max not to exceed 510 ms 3 drsw signal signal levels l 0 to 0 v h 2 to 3 v 3 drsw signal drsw signal status can be tested with the dle eot gs a or gs r command or at pin 34 on the parallel interface port p.33
• 1 connector pin configuration p.33

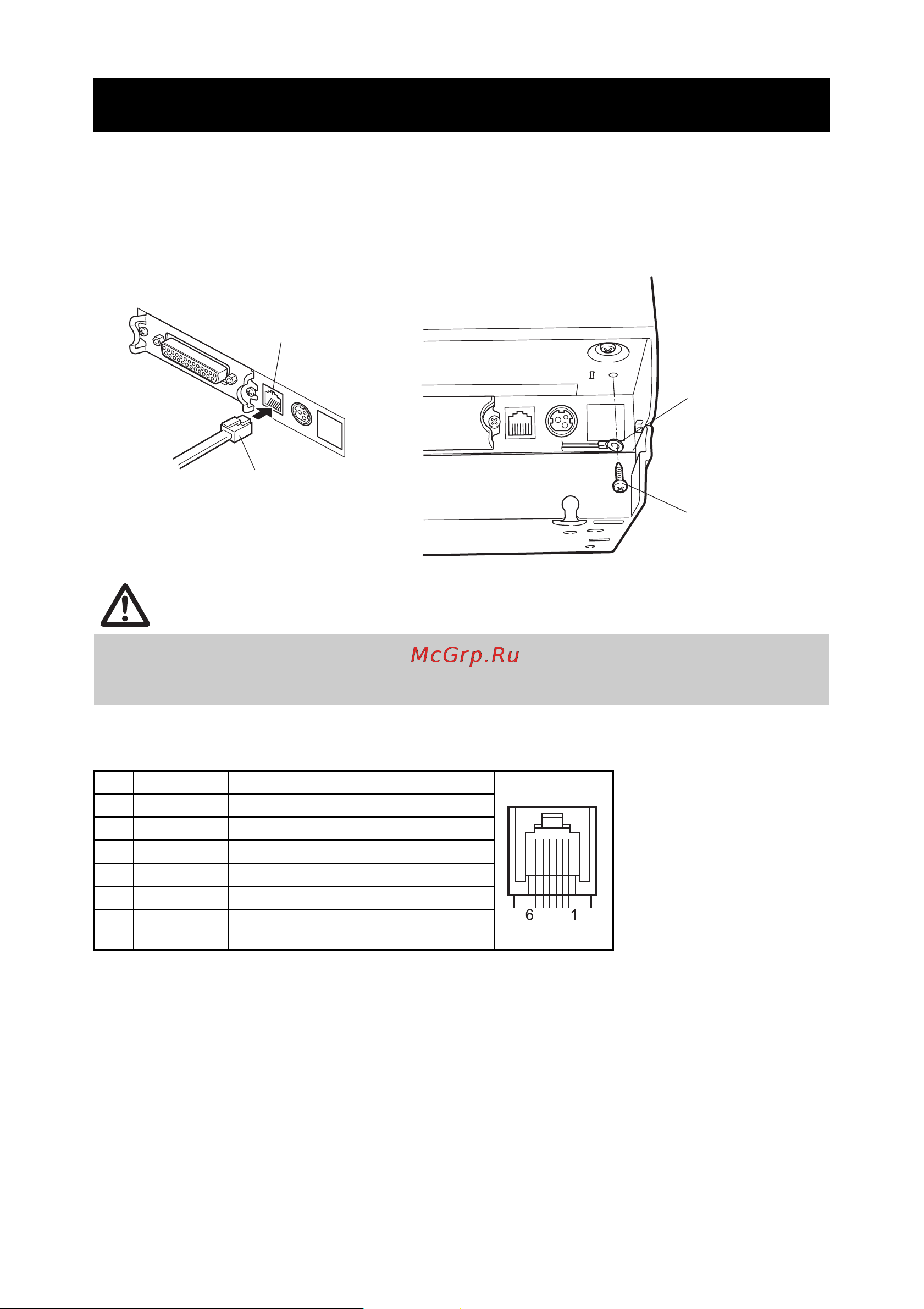

• Turn off the power 2 confirm the orientation of the cash drawer kick out cable connector and connect it to the cash drawer kick out connector at the back of the printer 3 remove the screw for the ground wire 4 screw the cash drawer s ground wire to the body of the printer p.33
• Signals cannot be output from the cash drawer kick out connector while printing p.33
• Connecting the cash drawer p.33
• Connect only the cash drawer kick out cable connector to the cash drawer kick out connector do not connect a telephone line p.33
• Caution p.33
• Caution p.34
• 4 drive circuit p.34
• The printer can be used horizontally vertically or installed on a wall however the ct s601iis built in power supply type cannot be used vertically or installed on a wall use the optional stand for vertical applications and the optional brackets for wall installations please refer to the manual for further details p.35
• Refer to 3 0 adjusting the paper near end sensor p.35
• Precautions for installing the printer p.35
• Change the paper near end sensor settings for vertical and wall installations the factory setting for the paper near end sensor is for horizontal installations p.35
• Caution p.35
• Set the partition to the width of the paper roll you are loading the partition is set at the factory to the position shown below for 3 inch type 80 mm wide paper roll for 2 inch type 58 mm wide paper roll p.36
• Partition for paper roll p.36
• Caution p.36
• Baud rate selection p.37
• When switch no 1 is set to off you can use a command or a memory switch to select 1200 38400 57600 or 115200 bps p.37
• When setting the dip switch do not remove any screws except the serial interface board mounting screws p.37
• Turn off the printer and unplug the power cord from the electric outlet 2 remove the mounting screws of the serial interface board 3 remove the serial interface board from the printer 4 set the dip switch according to the following table p.37
• The function of each switch is shown below shaded values are factory settings however factory settings differ depending on the destination market p.37
• Setting the dip switch on the serial interface board p.37
• Caution p.37
• Use a pointed object such as a pen to gently press the button to change the paper near end sensor 2 press and hold down the button while moving the paper near end sensor up down right and left the sensor positions are shown below for the various diameters of the paper roll used p.38
• The paper roll diameters in the table are guidelines p.38
• The amount of paper remaining on the roll diameter of the roll depends on the type of paper used p.38
• Change the settings of the paper near end sensor to set the position at which the near end of the paper is detected p.38
• Caution p.38
• Adjusting the paper near end sensor p.38
• A and b are for horizontal installations and a and b are for vertical or wall installations p.38
• Refer to 5 manual setting of memory switches p.39
• Loading paper p.39
• Caution p.39
• Put a screwdriver or other pointed object into the grooves on the power switch cover to remove it p.40
• Attaching the power switch cover p.40
• Attach this cover to prevent the power switch from being used p.40
• Removing the interface cover p.41
• Attaching the interface cover p.41
• Precautions for creating applications and practical operations p.42
• Installing a driver p.42
• Periodic cleaning p.43
• Maintenance and troubleshooting p.43
• Caution p.43
• A dirty print head or platen may reduce printing quality or cause malfunctions also if paper dust collects on the sensor s protective sheet paper cannot be detected correctly we recommend cleaning the printer periodically every 2 to 3 months as shown below p.43
• Refer to 4 clearing a cutter lock 2 p.44
• If the paper cover does not open the auto cutter blade is still extended cutter lock p.44
• If the error led is flashing clear the locked cutter as shown below p.44
• Clearing a cutter lock 1 p.44
• Caution p.44
• The error led flashes and the auto cutter blade remains extended because a foreign object or paper jam is obstructing it p.44
• The paper cover is designed to be opened if the cutter locks by pressing the cover open lever if this does not open the paper cover use the following procedure to clear the locked cutter p.45
• Clearing a cutter lock 2 p.45
• While paper is loaded press and hold the feed button while turning the power on hold the feed button down for about one second and then release it to start self test the printer prints its model name version dip switch settings memory switch settings and a list of built in fonts p.46
• Self test p.46
• Caution p.46
• Before starting to do maintenance work be sure to turn off the printer and unplug the power cord from the electric outlet p.46
• Be careful not to touch the manual cutter while the front cover is open be careful not to touch the opening for the auto cutter while the paper cover is open the print head is hot immediately after printing do not touch it do not touch the print head with bare hands or metal objects if the above procedure does not retract the auto cutter contact your citizen systems dealer p.46
• Hexadecimal dump printing p.47
• Caution p.47
• Error messages p.48
• The status display for various messages is shown below p.49
• Serial interface operation precautions p.50
• Paper jams p.50
• Caution p.50
• Ac adapter type p.51
• Unit mm p.51
• External views and dimensions p.51
• Built in power supply type p.51
• Use the paper shown in the following table or paper of the same quality p.52
• Use paper that is wound as follows not creased and fits tight to the core not folded not glued to the core rolled with the printable side out p.52
• Unit mm p.52
• Printing paper p.52
• Caution p.52
• Quick setting mode the settings for the memory switches for a replacement printer s manufacturer model paper width and character spacing can be set at the same time to the optimum settings do the settings while confirming the selected items on the printout p.53
• Memory switches are used to set various printer settings the memory switches can be set manually set by hand on the printer or by commands this section explains how to perform manual settings for information on how to set the memory switches using commands please refer to the command reference p.53
• Manual setting of memory switches p.53
• Selected item p.54
• Press the feed button the list of memory switches cycles through in order from memory sw 1 memory sw 2 memory sw 10 or memory sw 13 save to memory memory sw 1 each time the feed button is pressed press the feed button until the number for the memory switch you want to change is printed p.54
• Load paper 2 while the paper cover is open press and hold the feed button while turning the power on 3 press the feed button twice and close the paper cover the printer enters the mode for setting memory switches individually the printer prints memory sw 1 and the current setting 0 off or 1 on the current settings for memory switches 7 to 13 are not printed p.54
• Individual setting mode p.54
• Automatic memory switch settings p.54
• Set the memory switches individually do the settings while confirming the memory switch function and settings on the printout p.54
• Set all the memory switches to the factory settings p.55
• Memory switch initialization p.55
• The function of each memory switch is shown in the following table shaded values are factory settings p.56
