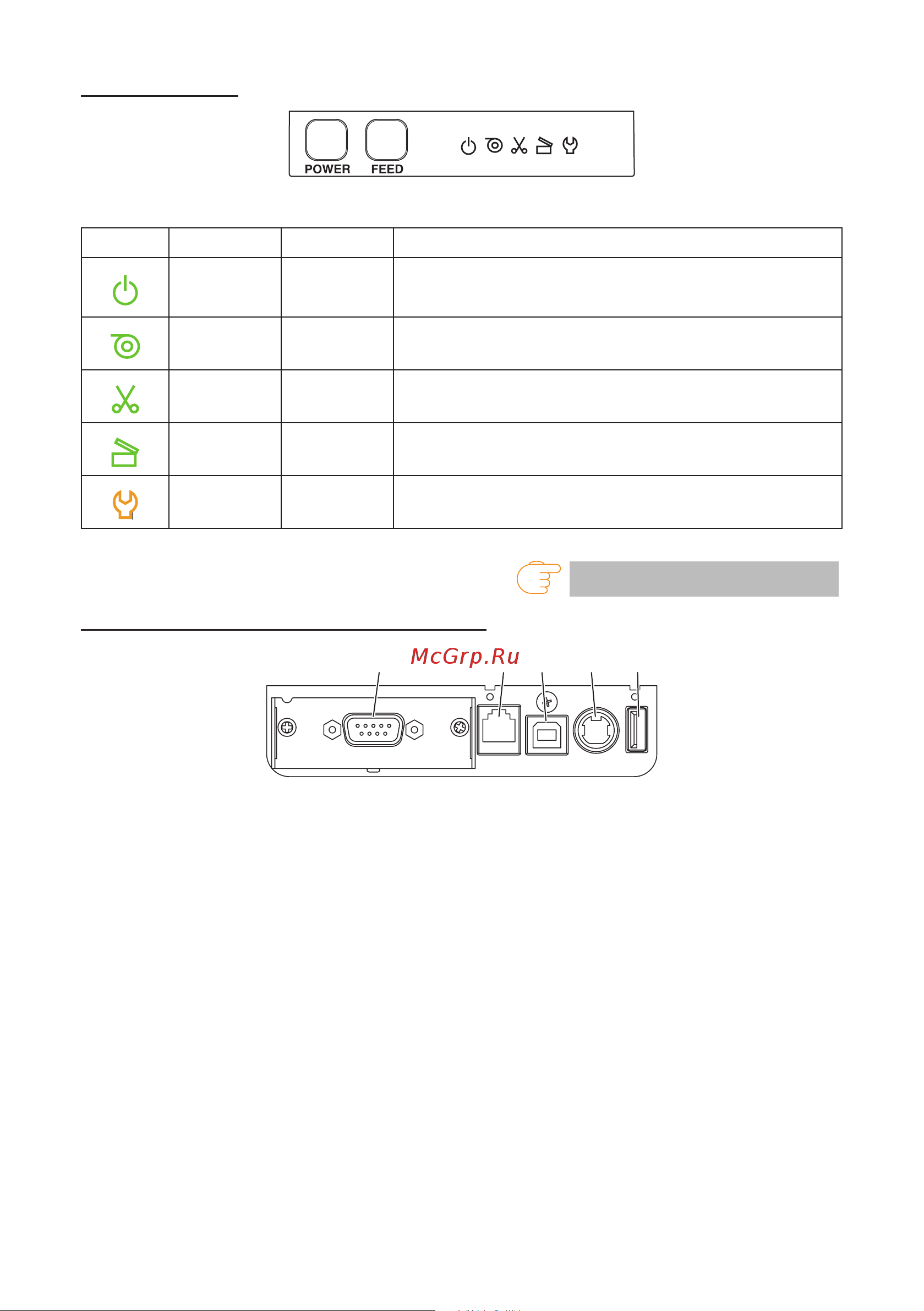

Operation panel
The operation panel has ve LEDs and two buttons.
LED name Color Description
POWER LED Green Lights when the power is on, turns off when the power is off.
PAPER LED Green
Lights or ashes when no paper or low paper is detected.
May also light or ash when other abnormalities are detected.
CUTTER LED Green
Flashes when a cutter error is detected.
May also light or ash when other abnormalities are detected.
COVER LED Green
Lights or ashes when an open paper cover is detected.
May also light or ash when other abnormalities are detected.
SERVICE LED Orange Flashes when an unrecoverable printer abnormality is detected.
Refer to 4.5 Error Indications
Rear connectors (serial interface example)
352 41
RS: Serial RS-232C + USB
1. Interface connector (serial, USB, etc.)
Connect to the interface cable.
2. Cash drawer kick-out connector
Connect to the cable from the cash drawer.
3. Power connector
Connect to the AC adapter cable.
4. USB connector
5. USB power supply port
Supply power to a USB device.
